    0 to 50% Motorized Outside Air Damper



    Used With

    Model Numbers: Used With:

    FIADMPR101*

    		 Precedent A cabinet (Digit 39 = A)

    FIADMPR102*

    		 Precedent B and C cabinet (Digit 39 = B, C)

    FIADMPR103*

    		 Precedent D cabinet (Digit 39 = D)





    Installation Instructions Manual

    Click the e-library symbol for the latest version of the 0 to 50% Motorized Outside Air Damper.





    Wiring

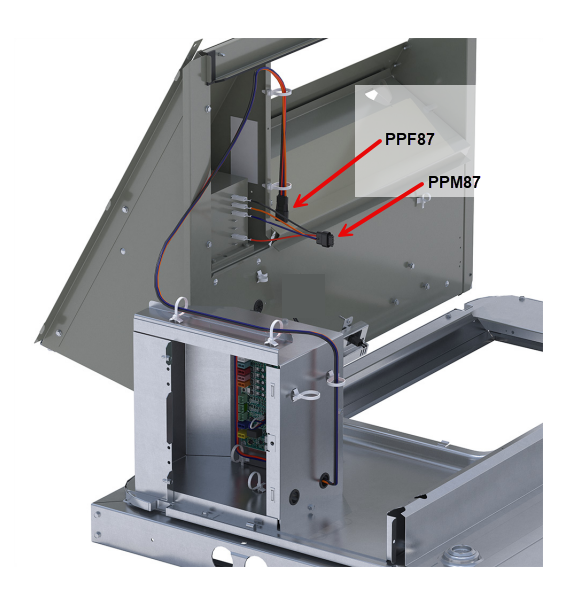

    • Using the supplied harness, connect PPF87 to the actuator connector.

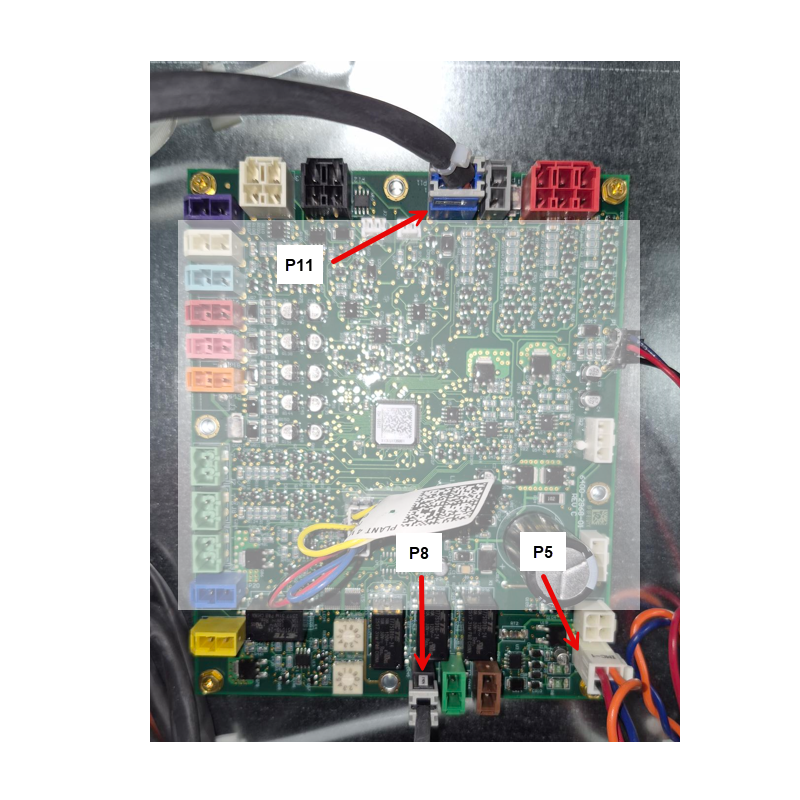

    • Route the harness to the fresh air options module located in the return section and connect to the blue connector to P11 and the black connector to P8.







    Configuration

    Phone App

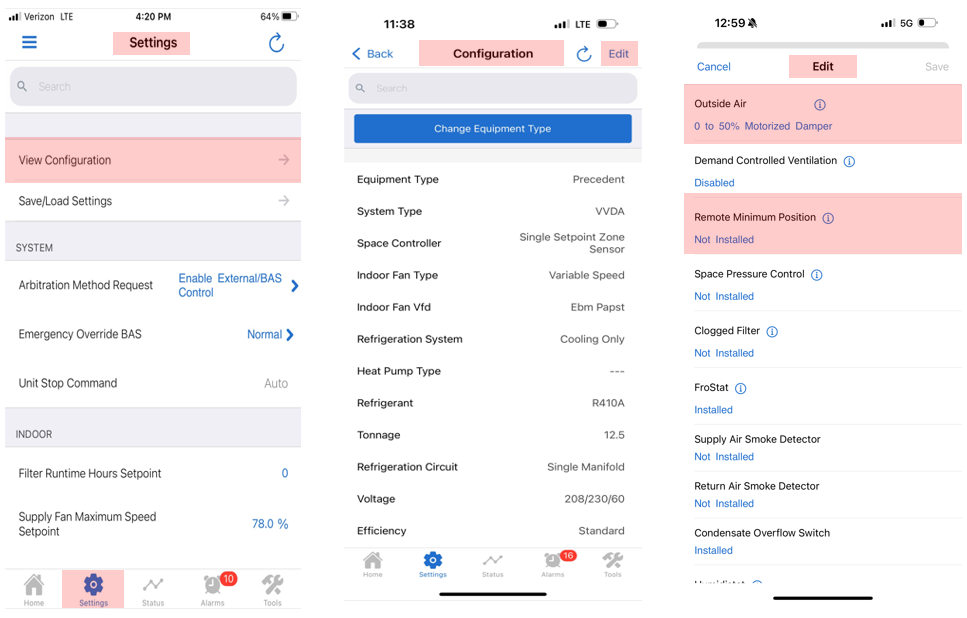

    • Click Settings > View Configuration > Edit > Proceed, then edit the required configurations.

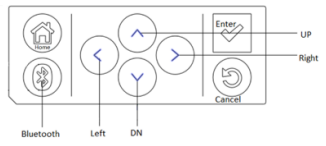

    Using the Symbio 700 Onboard menu and keypad

    1. Press Home.
    2. Press the Down Arrow and select Utilities.
    3. Press the Check.
    4. Press the Down Arrow and select Unit Config.
    5. Press the Check.
    6. Press the Down Arrow and select Edit Unit Config.
    7. Press the Check.
    8. Press the Down Arrow, then select Outside Air.
    9. Press the Check.
    10. Press the Down Arrow, and select 0 to 50% Motorized Damper.
    11. Press the Down Arrow, then verify that the Remote Minimum Position is Not Installed.
    12. Or Press the Check.
    13. And select Not Installed.
    14. Press the Check.
    15. Press the Down or Up Arrow until you find Save Config.
    16. Press the Check.
    17. Press the Down Arrow to change No to Yes.
    18. Press the Check.
    19. It will say Edit Unit Config Updating.





    Minimum Position Setting

    • When a 0 to 50 percent motorized damper is installed, with any supply fan type, the outdoor air damper is controlled to a setpoint from a Remote Minimum Position (wired input), Motorized Damper Position Setpoint, or Economizer Minimum Position Setpoint BAS. The following table summarizes which setpoint controls the damper position based on the installed and enabled options.
    Supply Fan Compensation Remote Minimum Position Occupancy Status Outdoor Air Damper Controlling Setpoints
    Enabled Installed Any Remote Minimum Position
    Enabled Not Installed Any Motorized Damper Position Setpoint
    Disabled Installed or Not Installed Any Economizer Minimum Position Setpoint BAS
