Wiring and Startup Guide
This document was created to help the field with Odyssey field wiring for Trane Symbio 700, Trane Legacy, and non-Trane Scenarios.
Each pairing is identified with a specific designation (see slide 2 of the attached doc). Depending on the pairing designation, the wiring between the condenser, air handler, and thermostat / zone sensor varies. In addition, the number of wires required between the condenser and air handler varies with each pairing. Refer to the attached diagrams for a high-level wiring summary. Refer to SS-SVN016* for additional wiring instructions.

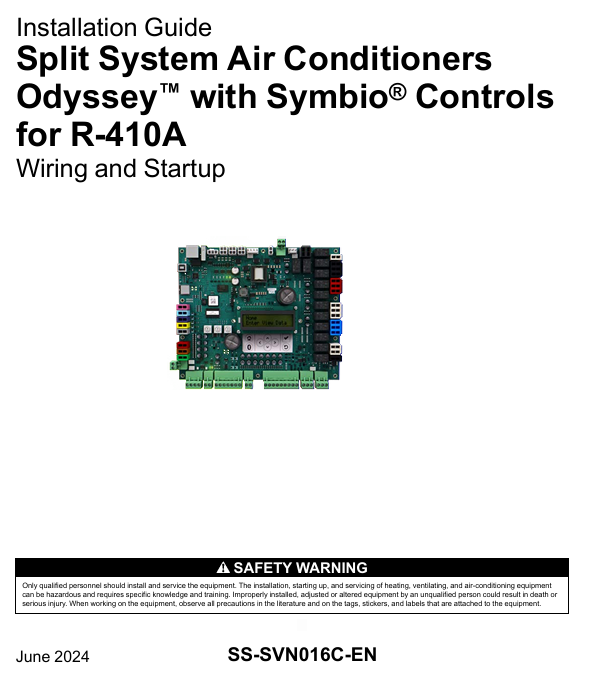

Click the e-library symbol for the latest version
WARNING:
Information in this article is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience and who comply with all federal, state, and local laws, rules, orders, or regulations related to the installation, service, or repair of a heating or central air conditioning product. Any attempt to install, service, or repair a heating or central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of the information contained herein, nor can it assume any liability in connection with its use.
