Mod Valve Flow Settings are Factory Set - (No adjustments should be required)

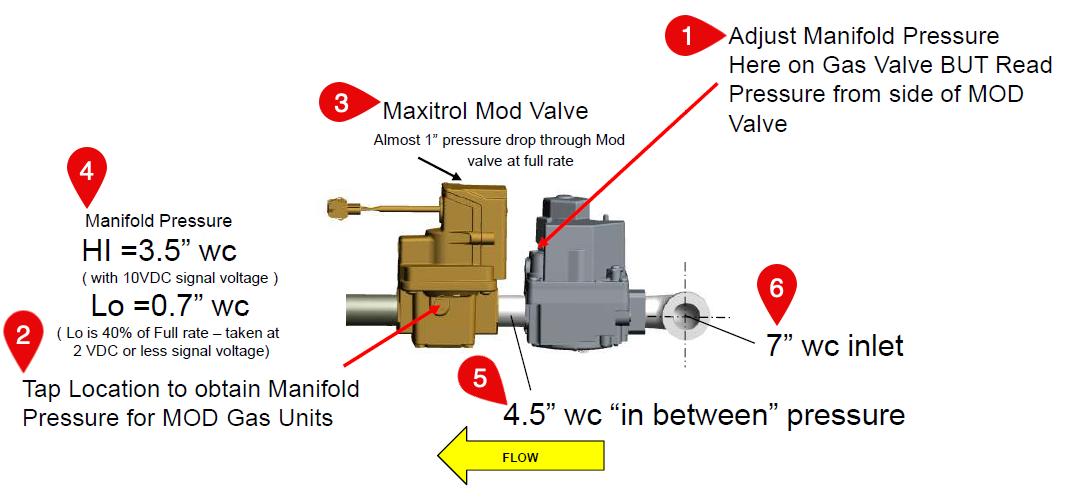

Details found in the image below.
- Adjust Manifold Pressure here on Gas Valve BUT read pressure from side of MOD Valve.
- Tap location to obtain Manifold Pressure for MOD Gas Units.
- Maxitrol Mod Valve (Almost 1" pressure drop through Mod valve at full rate)
- Manifold Pressure
- HI = 3.5" wc (with 10VDC signal voltage)
- Lo = 0.7" wc (Lo is 40% of FUll rate - take nat 2 VDC or less signal voltage)
- 4.5" wc "in between" pressure
7" wc inlet
