Summary: There are several reasons why a unit will not start, the purpose of this article is to step you through common troubleshooting steps and get your unit running.
Resolution:
| 1. | Make sure your line voltage is within 10% of unit rating. | |
| 2. | Check to see if the unit is equipped with a water strainer and check the condition and clean as needed. | |
| 3. | Verify secondary voltage at the unit control transformer(s). Voltage should be 25-27vac. If out of range, check the tapping on the primary side of the transformer. | |

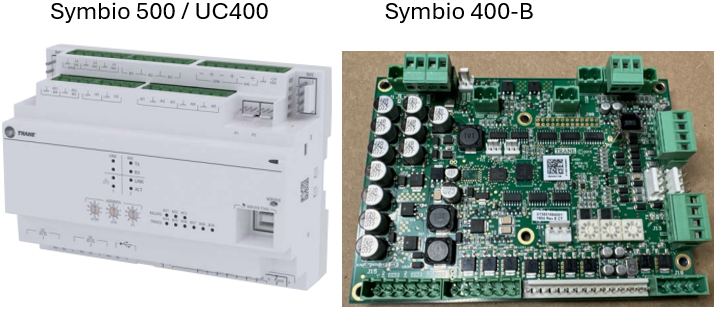

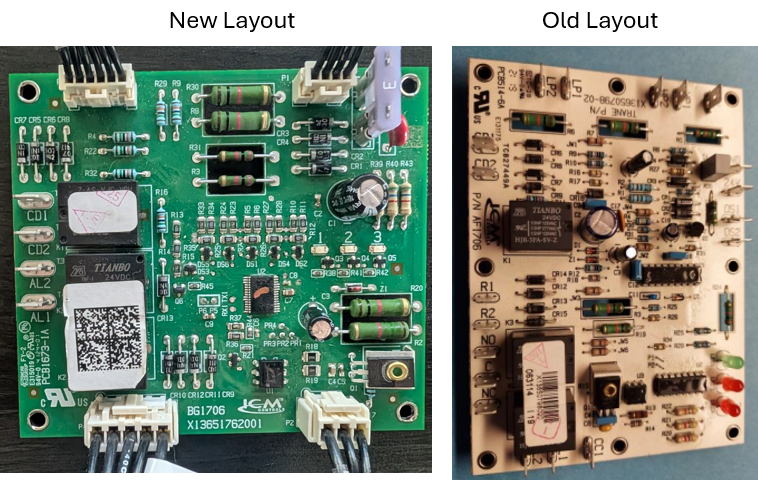

| 4. | See what control is installed on your unit and continue to with the appropriate steps below. | |
24v Deluxe |
| |
| 5. | Does the unit have a remote shutdown wired such as a fire alarm? | |
| Fire alarm wiring / remote shut down to a WSHP with Deluxe Controls | Fire alarm wiring / remote shut down to a WSHP with UC400 or Symbio 400-B/500 | |
| 6. | Does the control have error codes? | |
| 24 Volt Deluxe control error codes | Units with UC400, skip to next step. | |
| 7. | Does the unit have a condensate overflow? | |
| How do you troubleshoot condensate overflow on a WSHP - 24v Deluxe Controls? | How do you troubleshoot condensate overflow on a WSHP - UC400 & Symbio 400-B/500? | |
| 8. | Does the unit have a call from the thermostat/space controller/zone sensor? | |
Verify 24v to ground on G, Y1, Y2 (where applicable). and O (powered for cooling). See unit diagram for more information. Diagrams are located in the unit installation / operation / maintenance manual. Recommended conventional thermostats for WSHP with 24v Deluxe controls
| Verify the unit has a wired sensor or a value is being communicated via the BAS. The links below can be used for wiring various Trane zone sensors. If sensor value is being communicated to a UC400, someone with Tracer TU will need to access the control to verify the value is reported correctly. If the unit has Symbio 500 / 400-B, check to see if the point is in fault. See step 6. Wired zone sensor terminations and setup. Trane Touch Screen Programmable Zone Sensor terminations and setup. | |
