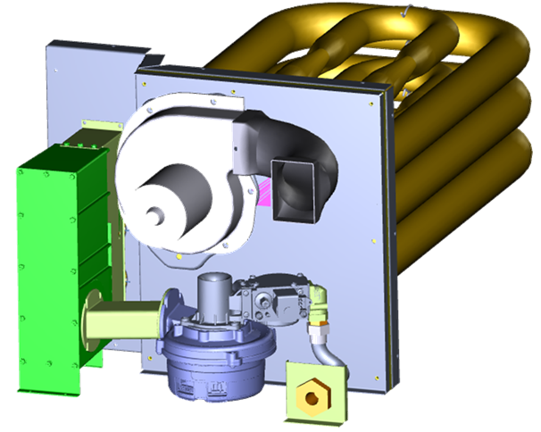

Sequence
- Ignition control (IGN) runs self-check (including verification that the gas valve is de-energized).
- IGN checks the high limit switch (TCO1 and TCO2) for closed contacts, the pressure switch (PS) for open contacts, and flame rollout (FR) for closed contacts.
- IGN energizes the inducer draft blower motor or (CFB).
- When PS closes, 20-second pre-purge begins.
- After 20 seconds, the IGN energizes the spark, gas valve, and the pre-mix blower at the same time.
- The spark will stay energized for at least 4 seconds attempting to establish flame.
- If a flame is not established, the unit will attempt 3 IGN trials before lockout.
- Once a flame is established, the spark is de-energized and indoor blower motor (IBM) timing begins.
- 45 seconds later, the RTRM energizes the indoor blower motor (IBM).
- When the zone sensor or thermostat is satisfied, the gas valve and pre-mix blower are de-energized, the inducer runs for 20 seconds then stops (post-purge), and the IBM runs for 60 seconds and then stops unless being requested to run continuously.
- NOTE: The gas valve and pre-mix blower come on at the same time
