Gas Valve

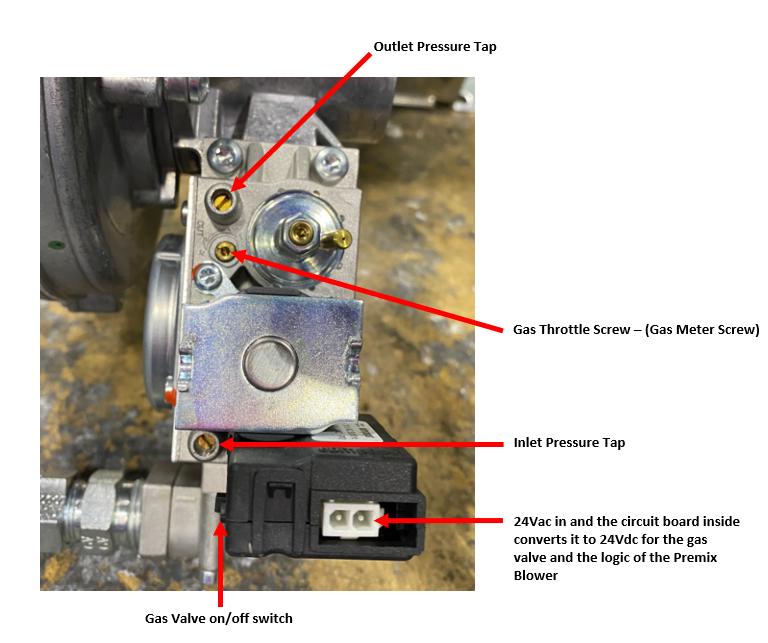

Details in the image below:
- Outlet Pressure Tap
- Gas Throttle Screw - (Gas Meter Screw)
- Inlet Pressure Tap
- 24VAC in and the circuit board inside converts it to 24VAC for the gas valve and the logic of the Premix Blower.
Gas Valve on/off switch
Details in the image below:
- Inlet Pressure Tap
- Gas Valved on/off switch
- Gas Valve On Position
