Sequence
- IGN J1-6 sends 24Vac on wire 105K(BR), and checks vestibule temp limit (VLT) for closure.
- Sends 24Vac to the gas valve on wire 105D(BR) and premix blower control relay (NOX1) on wire 105L(YL) to terminal A.

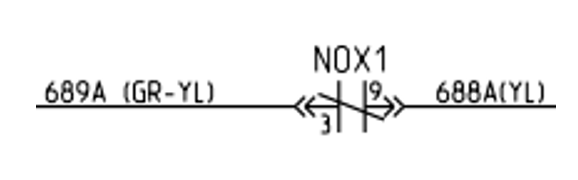

- Premix blower control relay (NOX1) terminals 3 wire 689A(GR-YL) and 9 wire 688A(YL) normally close, will open.
- The gas valve and the premix blower come on at the same time.
- Note: The IGN does not know if VTL is open or closed. It only knows if the unit did not light even though it attempted to power the gas valve and premix blower to light the unit.
