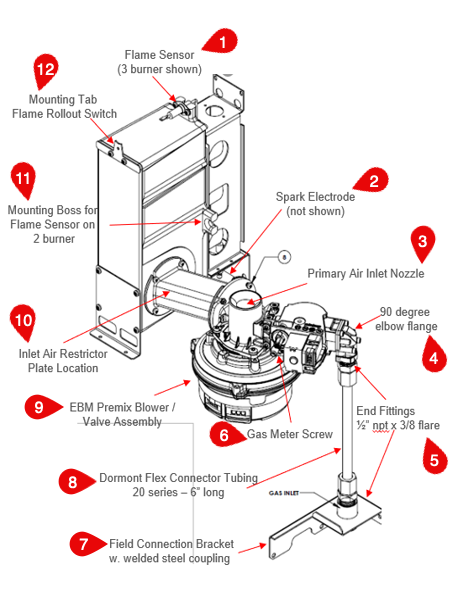

Text in Fig. 1 image above.
- Flame Sensor (3 burner shown)
- Spark Electrode (not shown)
- Primary Air Inlet Nozzle
- 90 degree elbow flange
- End Fittings 1/2" npt x 3/8 flare
- Gas Meter Screw
- Field Connection Bracket w. welded steel coupling
- Dormont Flex Connector Tubing 20 series - 6" long
- EBM Premix Blower / Valve Assembly
- Inlet Air Restrictor
- Mounting Boss for Flame Sensor on 2 burner
- Mounting Tab Flame Rollout Switch

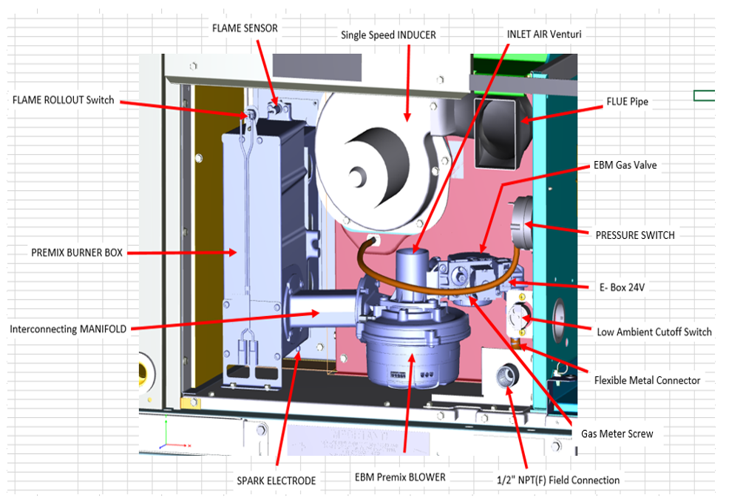

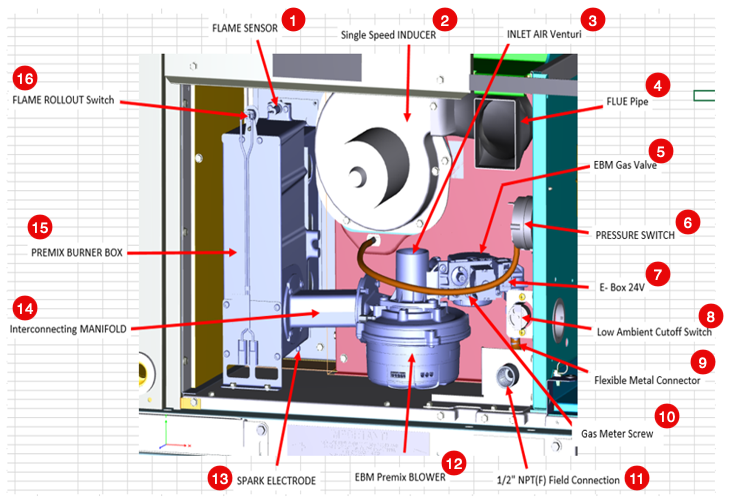

Text in Fig. 2 below
- Flame Sensor
- Single Sped INDUCER
- INLET AIR Venturi
- FLUE Pipe
- EBM Gas Valve
- Pressure Switch
- E-Box 24V
- Low Ambient Cutoff Switch
- Flexible Metal Connector
- Gas Meter Screw
- 1/2" NPT(F) Field Connection
- EBM Premix Blower
- Spark Electrode
- Interconnecting Manifold
- Premix Burner Box
- Flame Rollout Switch
