Clearances
- Figure 24, p. 25 illustrates the minimum operating and service clearances for either single or multiple-unit installations. These clearances are the minimum distances necessary to assure adequate serviceability, cataloged unit capacity, and peak operating efficiency. Providing less than the recommended clearances may result in condenser coil starvation, “short-circuiting” of exhaust and economizer airflows, or recirculation of hot condenser air.
Text in the Figure 24, above.
Notes:
- When equipped with economizer or barometric relief damper, clearance distance is to be measured from protruding hood instead of base.
- Clearance is the same if any unit is rotated 180°.
- Addition clearance required when barometric damper or economizer is installed.
Text in the image above.

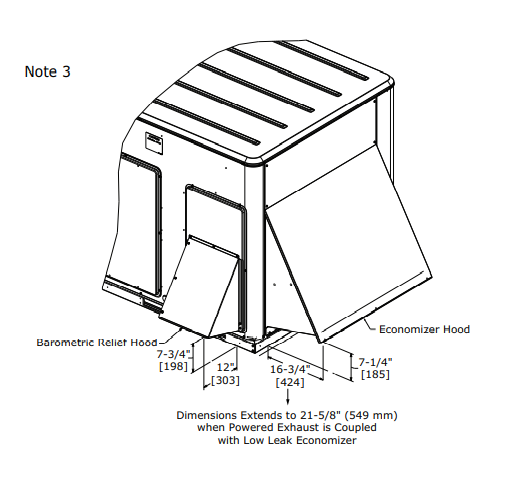

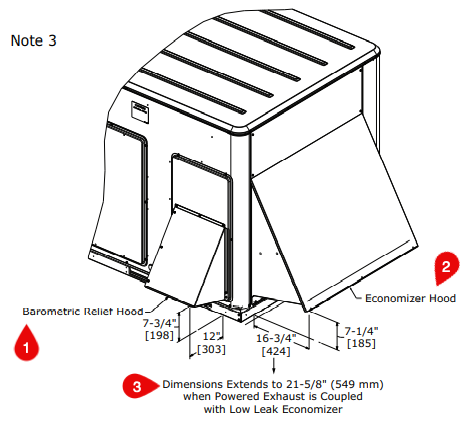

- Barometric Relief Hood
- Economizer Hood
- Dimensions Extends to 21-5/8" (549 mm) when Powered Exhaust is Coupled with Low Leak Economizer

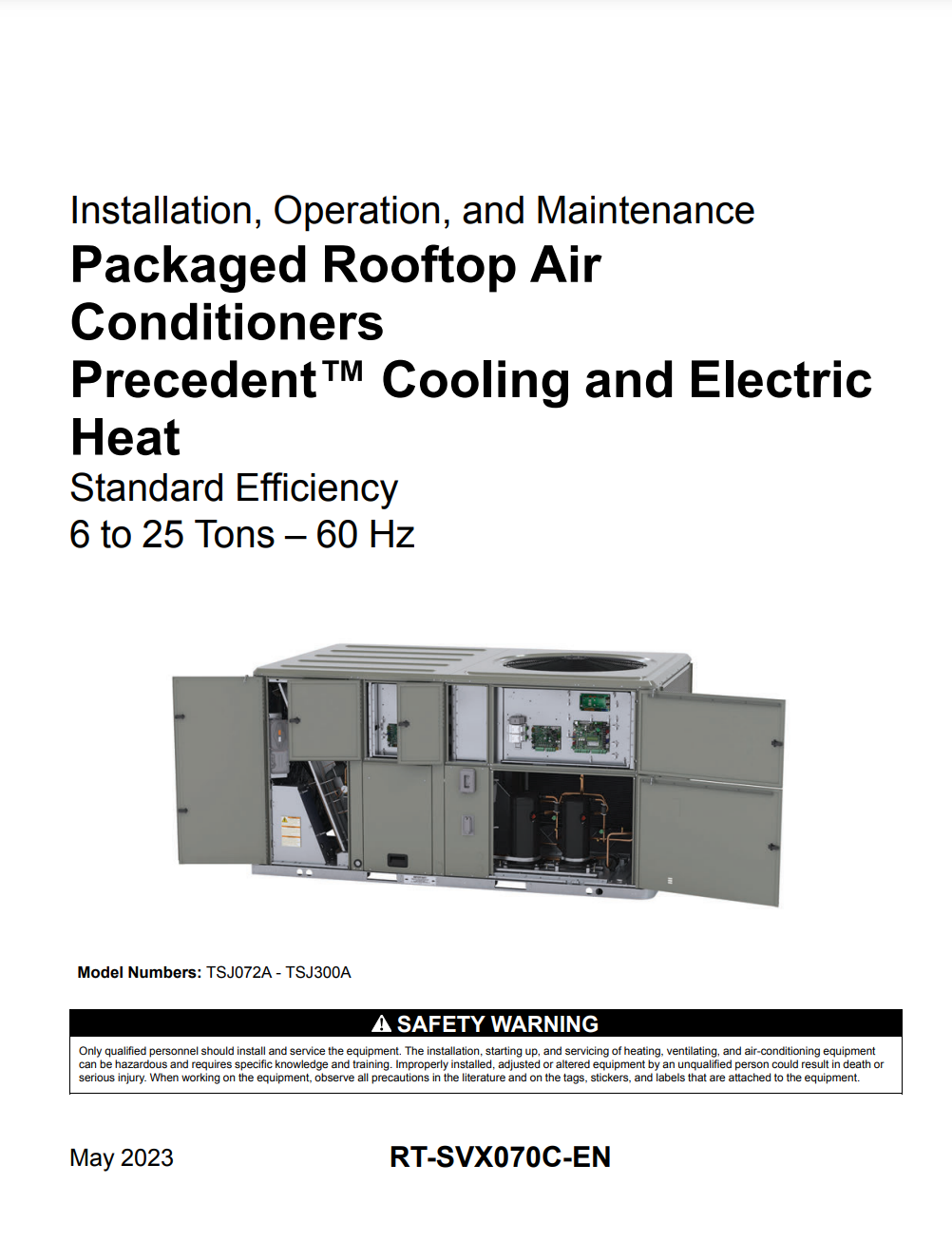

See IOM for Packaged Rooftop Air Conditioners Precedent™ Cooling and Electric Heat for more information, attached below as RT-SVX070C-EN_05302023.
