These values are from Samsung, if your wire colors do not match, use the pin numbers.

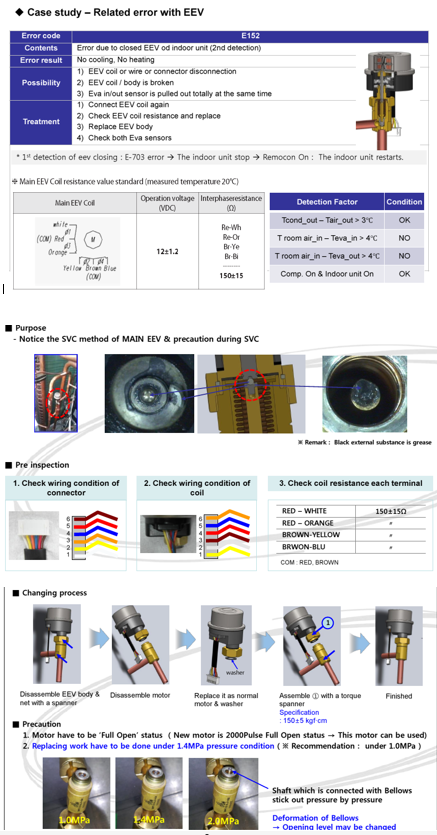

VRF EEV Resistances
