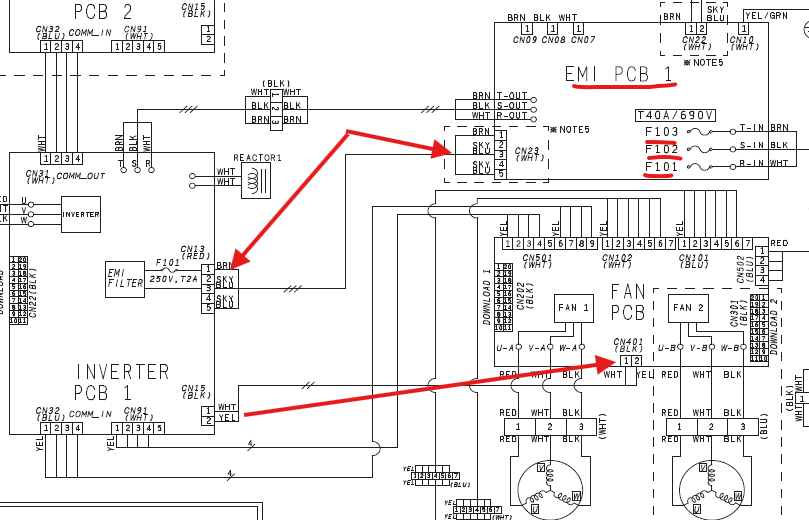

- With the HUB, INVERTER and FAN PCB Board verify voltage going to those boards before condemning.

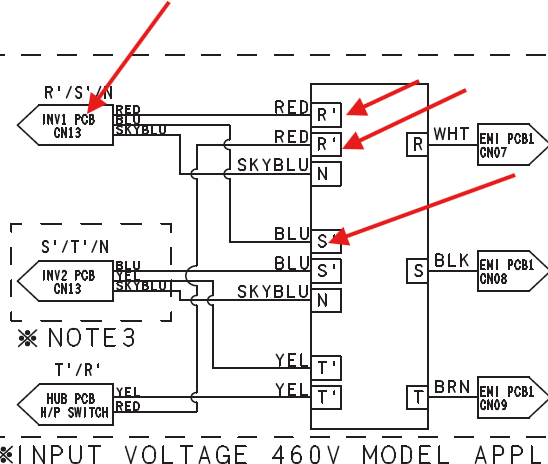

- CN401 OR 402 Should be at least 150 VDC and not exceeding 400 VDC, VDC below these values point to the Inverter board needing replacement, providing the 250 v are present at CN13 At the inverter board.

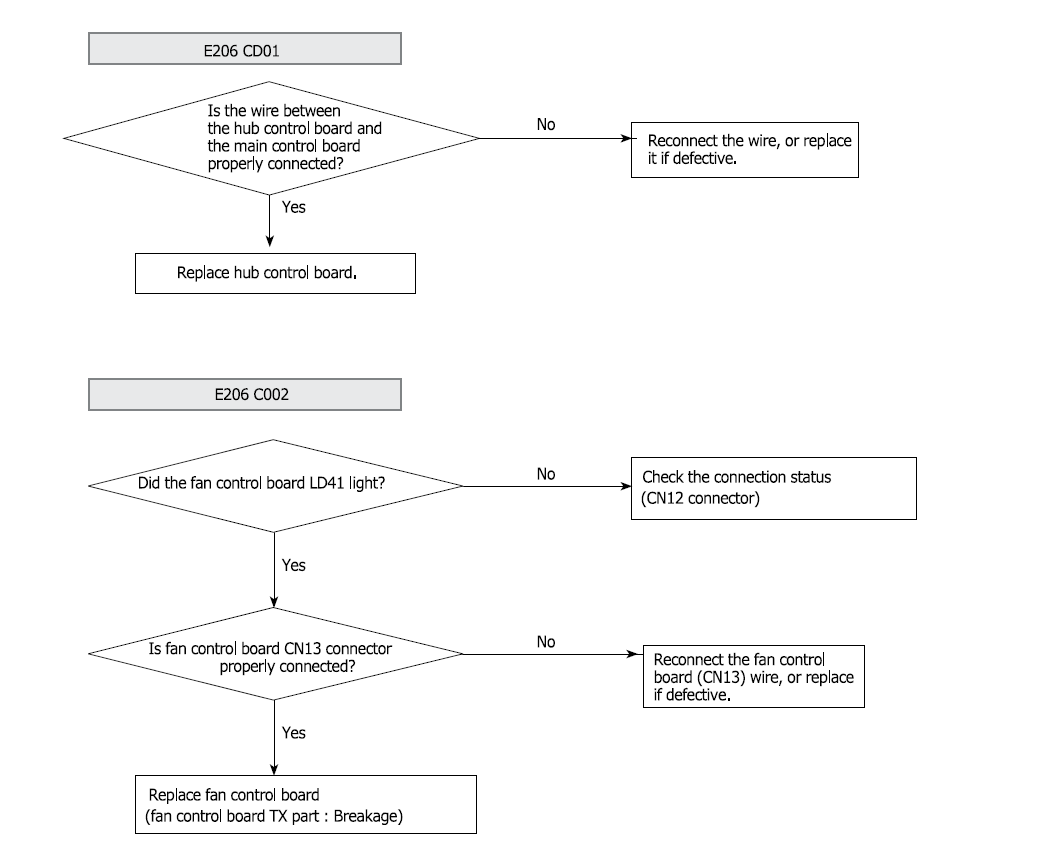

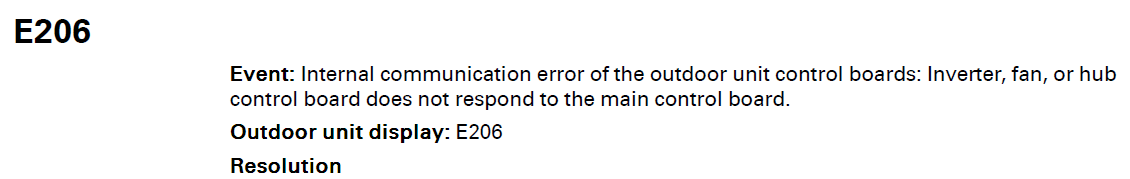

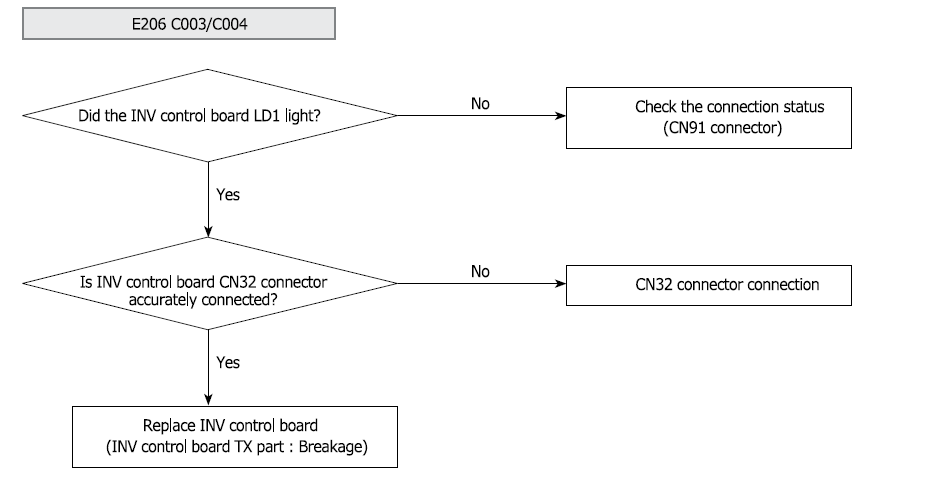

E-206/C001/C002/C003/4
