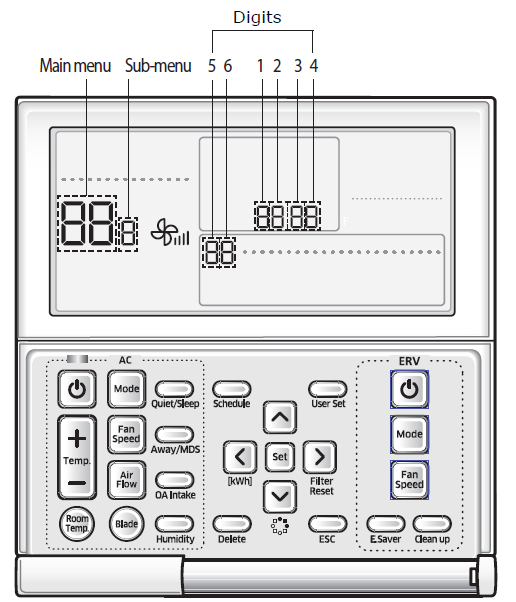

- This is the wired controller, with the flip cover.
- If a timer appears on the controller this will require a Factory reset.
- Press and hold either set and delete or Set and Esc. until a 1 appears.

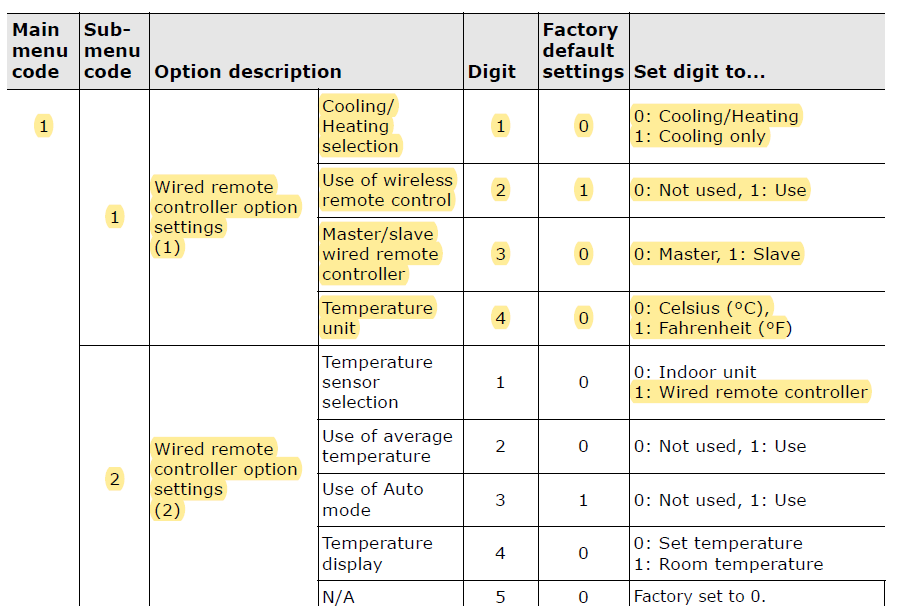

- Up or down make the 1 a 0, arrow to your right, up or down make the 0 a 1, then press set.
- This will restore to Factory settings; you will need to change Celsius to Fahrenheit.
- Temperature to Wired remote controller, if you are reading from the controller.
Wired Remote Controller
