Process (Steps 1- 12):
1. Does the unit have a mechanical linkage arm between the return and outdoor dampers? If no, continue to the next step. If yes, then continue on to step 3.
2. This unit has a 0-50% Motorized Damper, and not an economizer. There is no mixed air sensor, thus the a 8 flash fault code should simply be ignored in this particular case.
3. Is the mixed air sensor connected to the MAT inputs on the Relitel Economizer Module (RTEM)? If no, continue to the next step. If yes, then continue on to step 5.

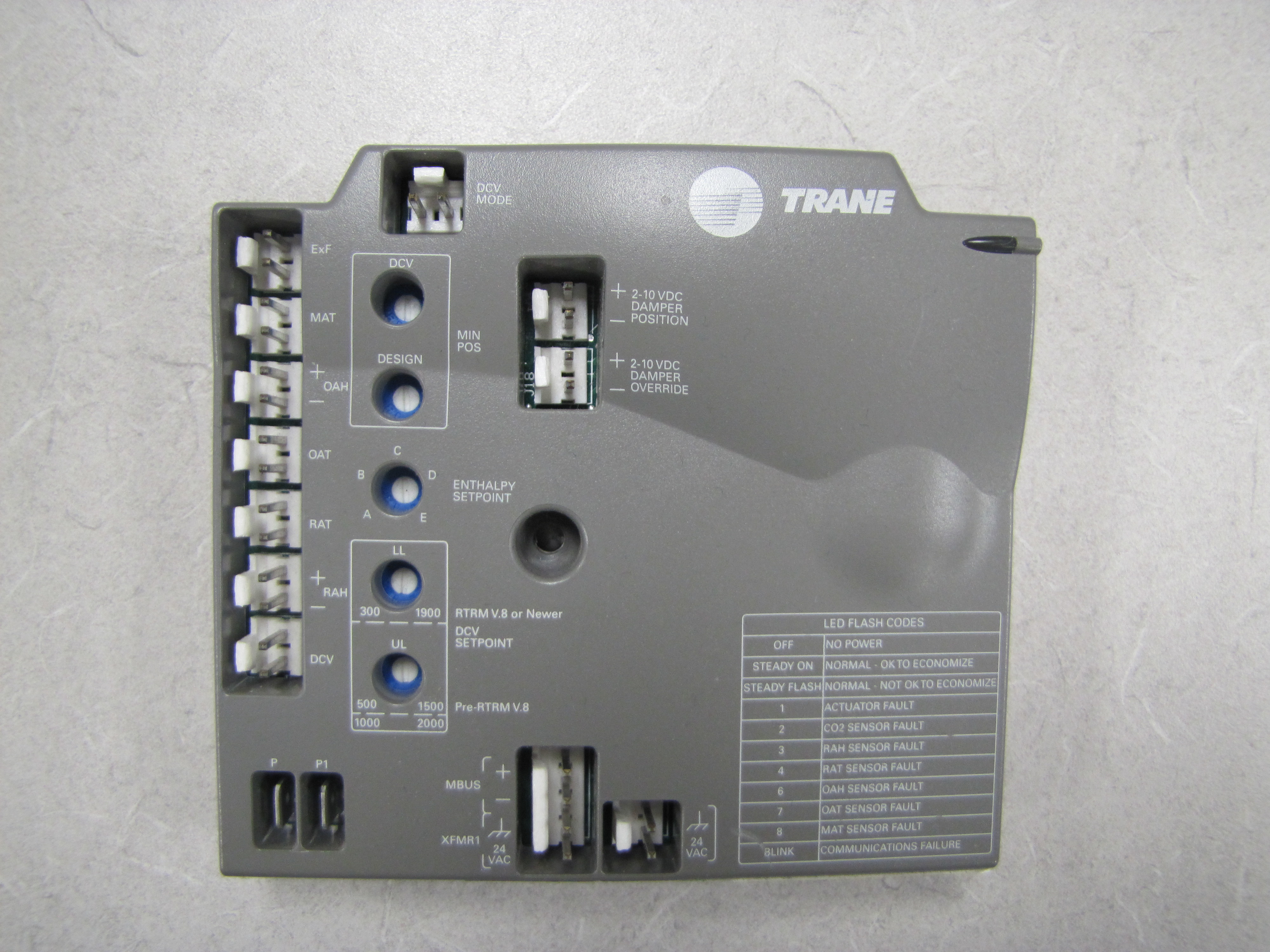

Image 1. RTEM

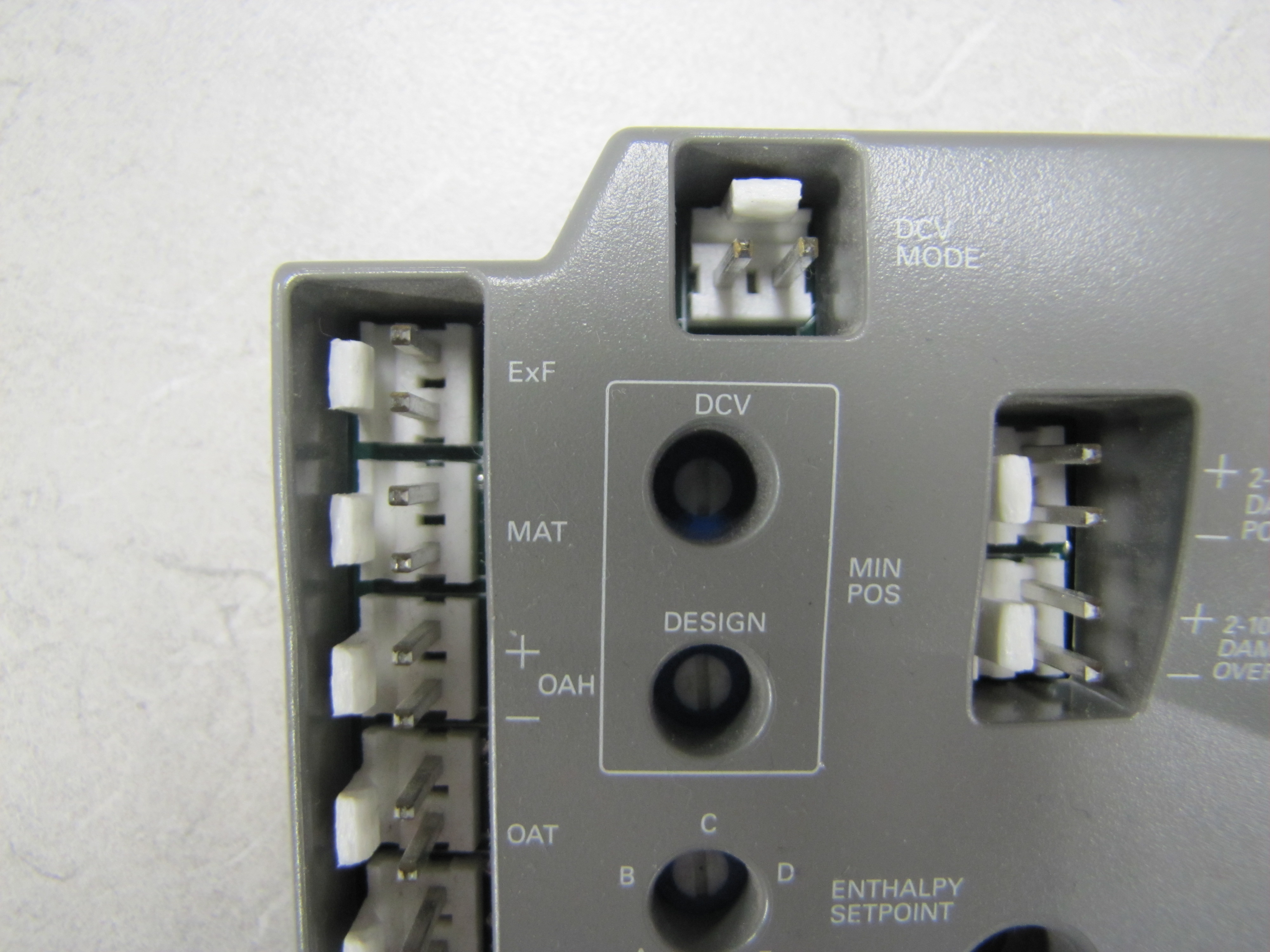

Image 2. MAT connection on the RTEM
4. Connect the two prong plug to the MAT inputs on the RTEM.
5. Pull the two pin plug from the MAT inputs on the RTEM and measure resistance across the two pins. If you read open (infinite resistance) or short (near zero resistance) replace the mixed air sensor.
