Bypass a communication board on a Reliatel Unit
Solution:
- Power the unit down
- Locate the RTRM J4 plug and unplug it.
- Locate the Communication Board J2 plug, unplug it and plug it to the RTRM J4. If there is nothing connected to the Communication Board J2, go to next step.
- Power the unit back up.

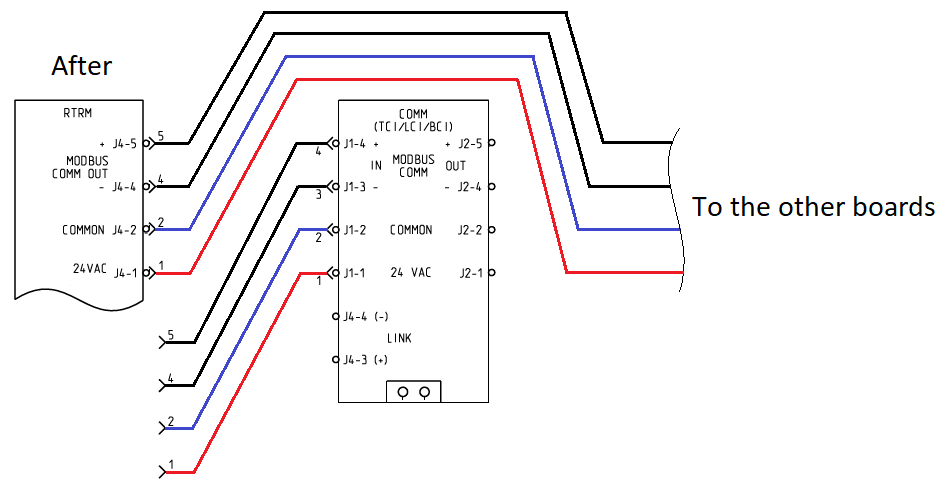

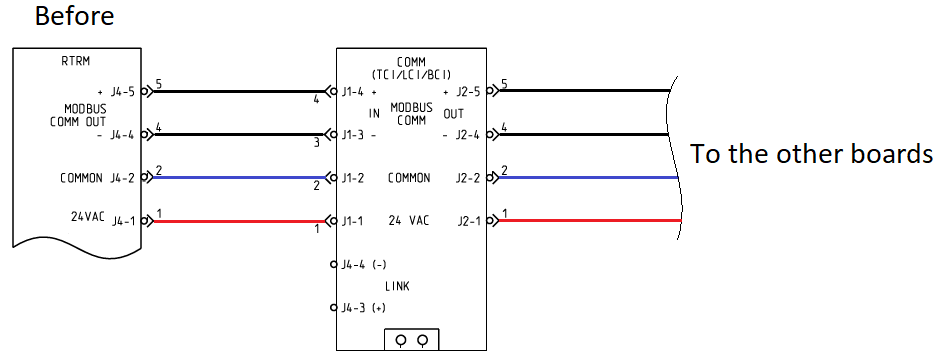

Below are visuals for this procedure.
