Overview:
The Symbio Adapter Board is Factory installed in all Symbio Condensers.
It has no Microchip and passes voltage from one connector type to another.
Part Numbers:
Part numbers are subject to change; verify with Trane Parts to confirm the part number for the Adapter Board is correct.
Original Adapter Board Part Number: MOD03104
Current Production Adapter Board with Relay Protection: MOD04172
Note:
- It is recommended to replace the original board with the current production board whenever possible. When replacing the Symbio 700 board, it is advisable to replace it with the kit that comes with the MOD04172 Adapter board.
Board Pinout Images:

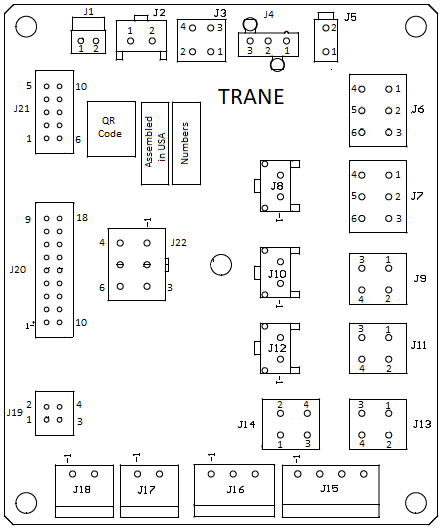

Original Adapter Board Pinout Information

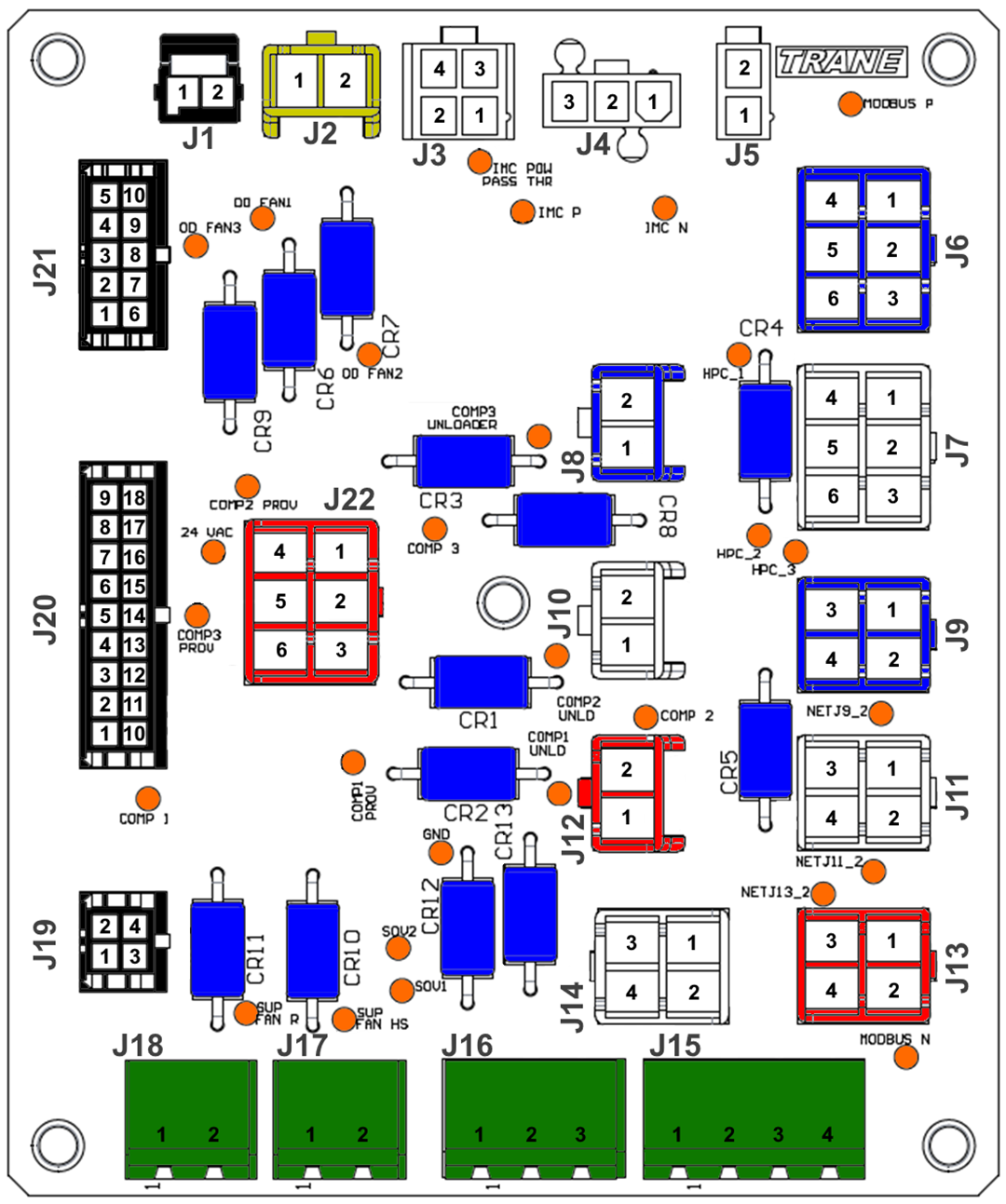

Current Production Adapter board with Relay Protection Pinout Information
