Notice:
Conventional thermostats are not support on Symbio 400-B/500 or UC controls.
At minimum, the unit needs a 10k type 2 thermistor wired to the Zone Temp & GND/Common terminals for operation.
The diagram details shown below are generic. See unit IOM Wiring Diagram section for unit specific connections.
Click the e-library symbol for the latest version the sensor IOM which include complete installation and terminations.
| Control Type | Diagram Detail | Connection Detail |

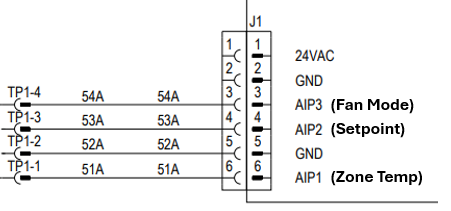

| Symbio 400-B |
|
The Terminal Plug (TP) will be inside the control panel or outside of the control panel routed from a passthrough plug. Terminal designations are printed on the side of the plug. |
|

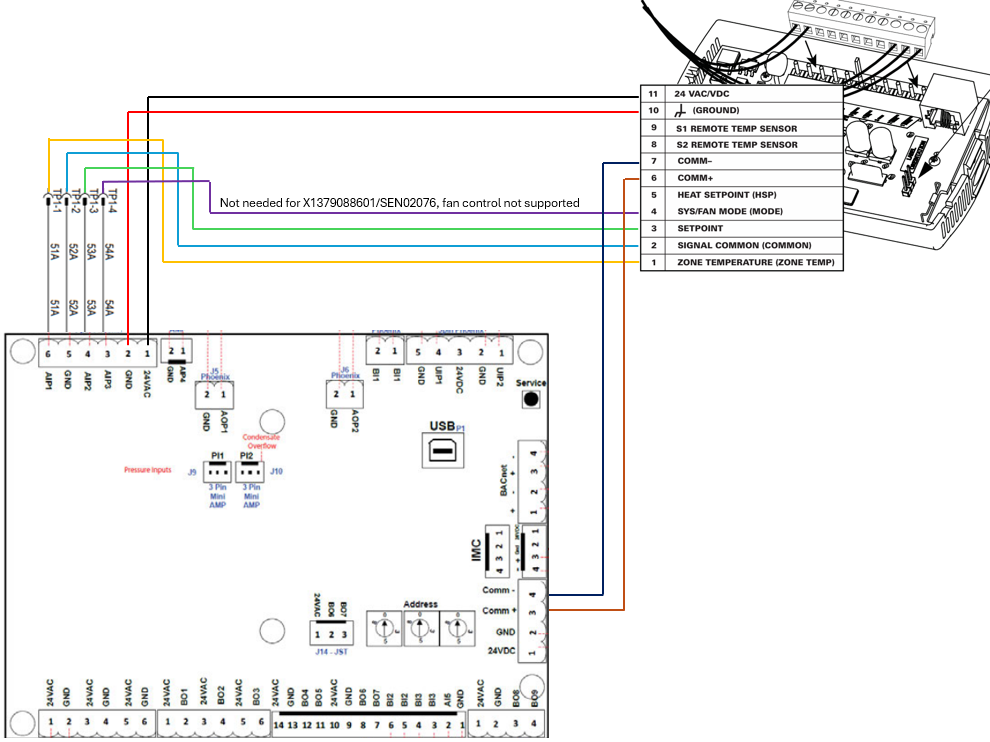

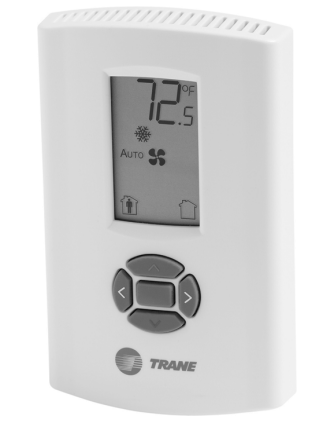

Connections shown are specific to the wired temperature sensor with an LCD display. Unit control orientation will vary vs the diagram detail shown.
|
||

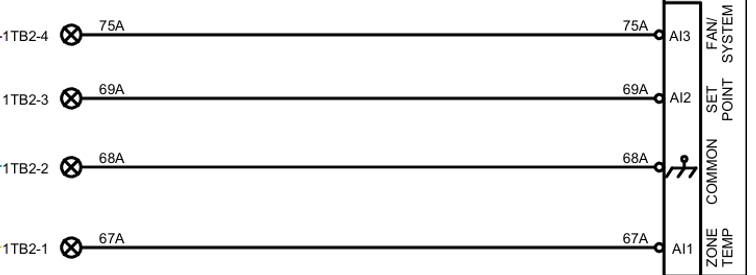

| Symbio 500 & UC400 |
|
Look for a large terminal block on the left or right side of the control panel. Terminal designations will be embossed on the block. |
|

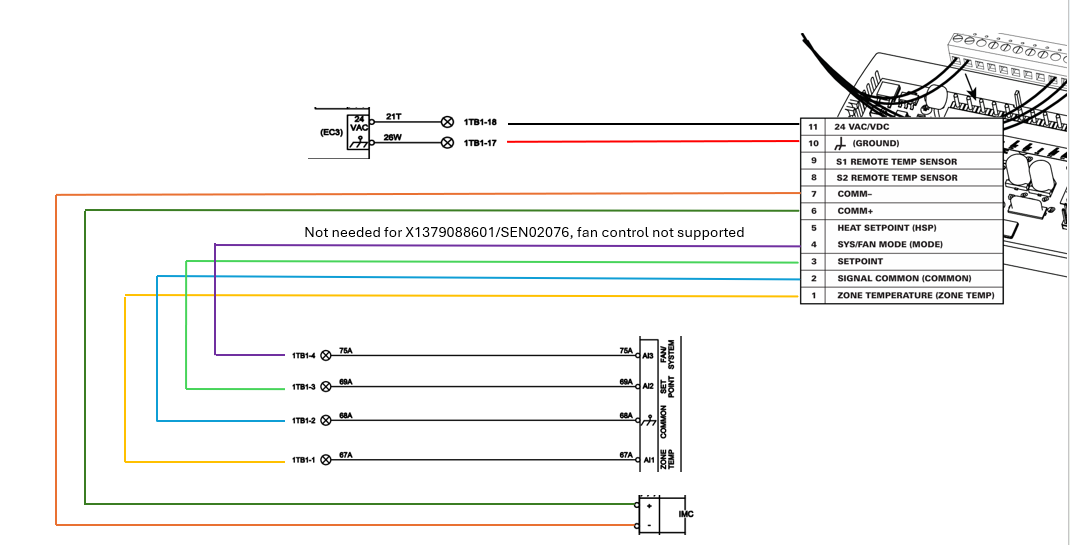

Connections shown are specific to the wired temperature sensor with an LCD display.
|
