This article is for the older LCI-I. For the LCI-X refer to the following article Replacing an LCI-I with a LCI-X On an Intellipak
Issue:
What is latest image for LCI-I?
Resolution:
How to Tell What Intellipak You Have
Backward Compatibility Note: You can use the LCI-I if the serial number is C09 or higher, the RTM is greater than 20.05 and the HI is greater than 26.04. Details to verify configuration on LCI Backward Compatibility - IntelliPak 20-130 ton
LCI-I images
- 1.13.9 for IntelliPak I, prog ID 80 00 2A 56 0A 03 04 02 RT-SVP03A-EN
- 2.16.0 for IntelliPak II, prog ID 80 00 2A 56 0A 03 04 05 BAS-SVP02A-EN
Do not use 1.13.9 in a IntelliPak II LCI-I, you'll get a Version Mismatch Diagnostic
Prog ID 80 00 2A 56 0A 03 04 02
- 1.13.9, original LCI-I
- 161 network variables, no support for new IntelliPak 2 features
Prog ID 80 00 2A 56 0A 03 04 05
- 2.16.0, new LCI-I image for IntelliPak II
- 264 network variables, support for new IntelliPak 2 features
- not for use with IntelliPak I yet, is being tested now

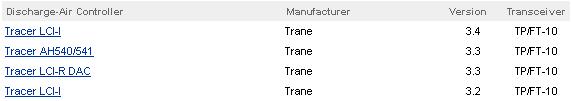

What is the difference between version 3.2 and 3.4?
Version 3.4 = 80 00 2A 56 0A 03 04 05
Version 3.2 = 80 00 2A 56 0A 03 04 02
LCI-I hardware has not changed
The image version is shown in the Configuration menu at the human interface for the IntelliPak (minor version and build number are shown, not the 1). You can also look at NV#12 nciDevMinVer for the minor version number (13, e.g.)
Notes:
Rover V5 SP8 included 1.13.6.
Rover 5 SP6 and has image 1.13.5, SP7 has just come out recently, but did not have a newer image for the LCI-I, latest image at this time is 1.13.5.
Changes:
Other Question/Problem/Cause Statements:
- What is latest image for LCI-I?
- How can I check the version of the LCI-I card?
- 1.13.9 for IntelliPak I, prog ID 80 00 2A 56 0A 03 04 02
- 1.14.0 for IntelliPak II, prog ID 80 00 2A 56 0A 03 04 02
- 2.15.2 for IntelliPak II, prog ID 80 00 2A 56 0A 03 04 05
- Version Mismatch Diagnostic
- What is the difference between version 3.2 and 3.4?
Facts:
- INTELLIPAK - LCI-I
- Intellipak-LCI-I
- Intellipak LCI-I
