The purpose of this article is to show how to correctly set up the units SW1 dip switches on a start-up.
Locate the SW1 dip switch on the Main board next to the Display DSP1. The switch block is either Red or Blue.
The Blue switch block is used in this example.
Depending on the Model and year the information is located on the schematic under the Notes.

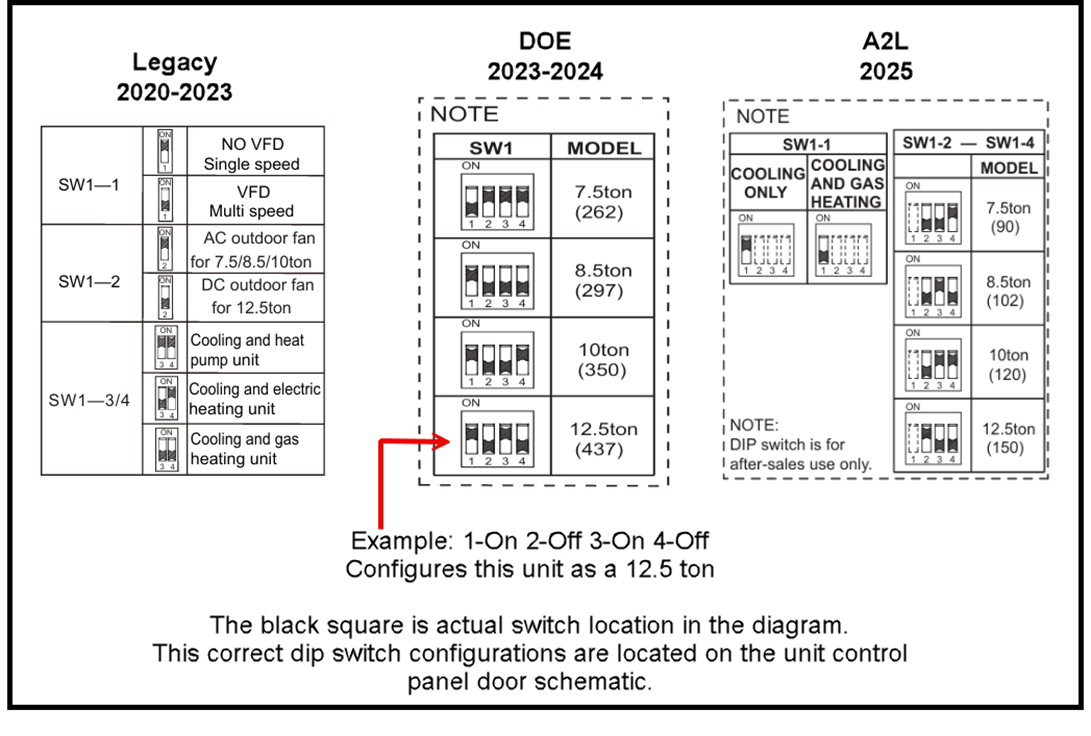

See information below for dip switch settings.
