How do I change the parameters on a TR150 VFD?
Follow the steps below to adjust the VFD parameters. Follow example below to change parameter 1-20.
1. Stop the equipment either at the Human Interface or by pressing the Off/Reset button on the TR150 VFD.

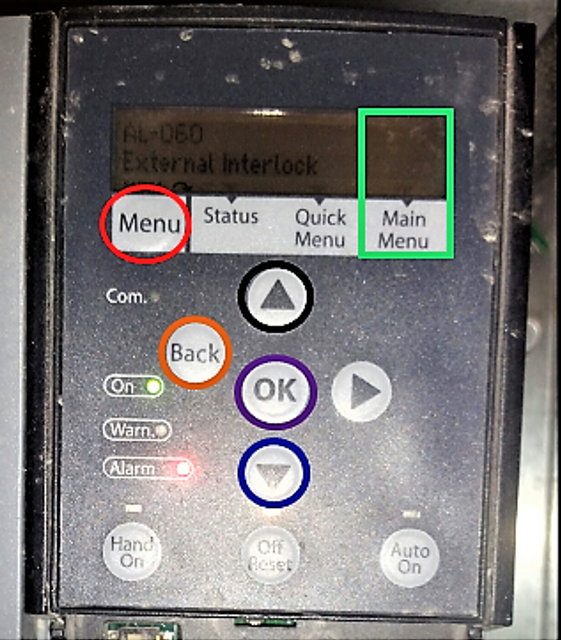

2. Press the MENU key until the triangle is above "Main Menu."

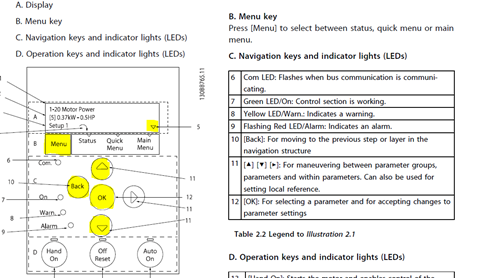

Text in image above
- Display
- Menu key
- Navigation keys and indicator lights (LEDs)
- Operation keys and indicator lights (LEDs)
B. Menu key
Press [Menu] to select between status, quick menu or main menu.
C. Navigation keys and indicator lights (LEDs)
| 6 | Com LED: Flashes when bus communication is communicating. |
| 7 | Green LED/On: Control section is working. |
| 8 | Yellow LED/Warn: Indicates a warning. |
| 9 | Flashing Red LED/Alarm: Indicates an alarm. |
| 10 | [Back]: For moving to the previous step or layer in the navigation structure. |
| 11 | [▲] [▼] [►]: For maneuvering between parameter groups, parameters and within parameters. Can also be used for setting local reference. |
| 12 | [OK]: For selecting a parameter and for accepting changes to parameter settings. |
3. Press the "Down" arrow until you reach parameter group 1.
4. Press OK.
5. Press the "Down" arrow until you reach the specific parameter 1-20.
6. Press OK.
7. Use the "Up" or "Down" arrow to change the value of the parameter. Alternatively, you can use the right arrow button to highlight a specific digit to change.
8. Press the OK button once you have made the desired changes.
