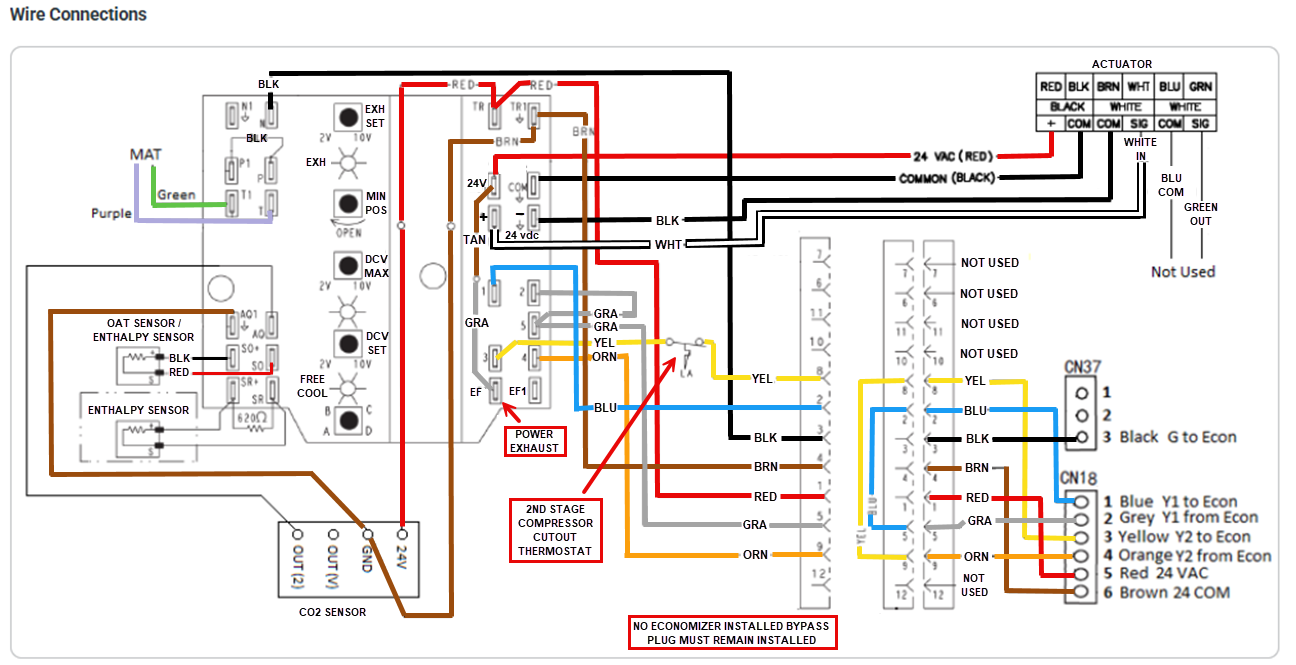

Wire Connections

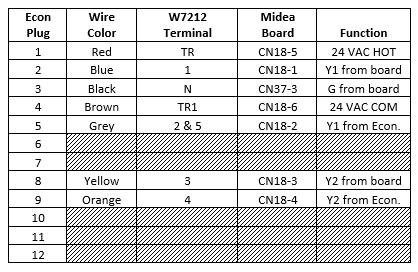

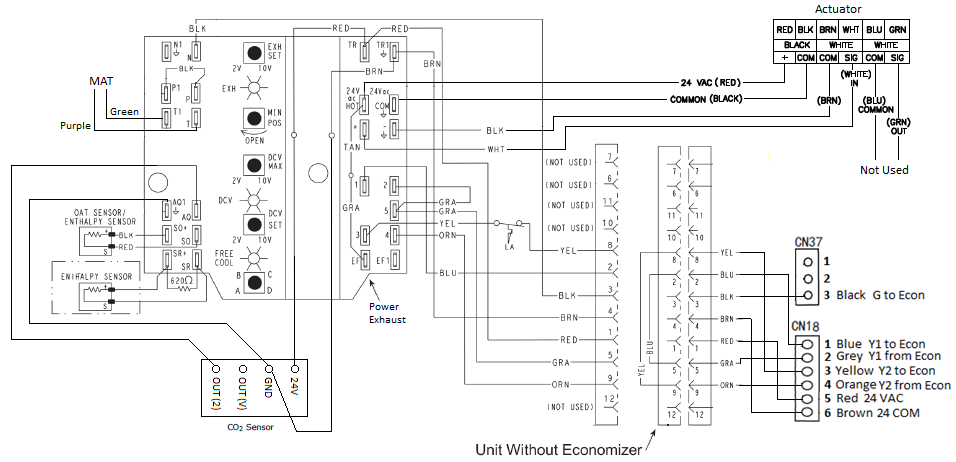

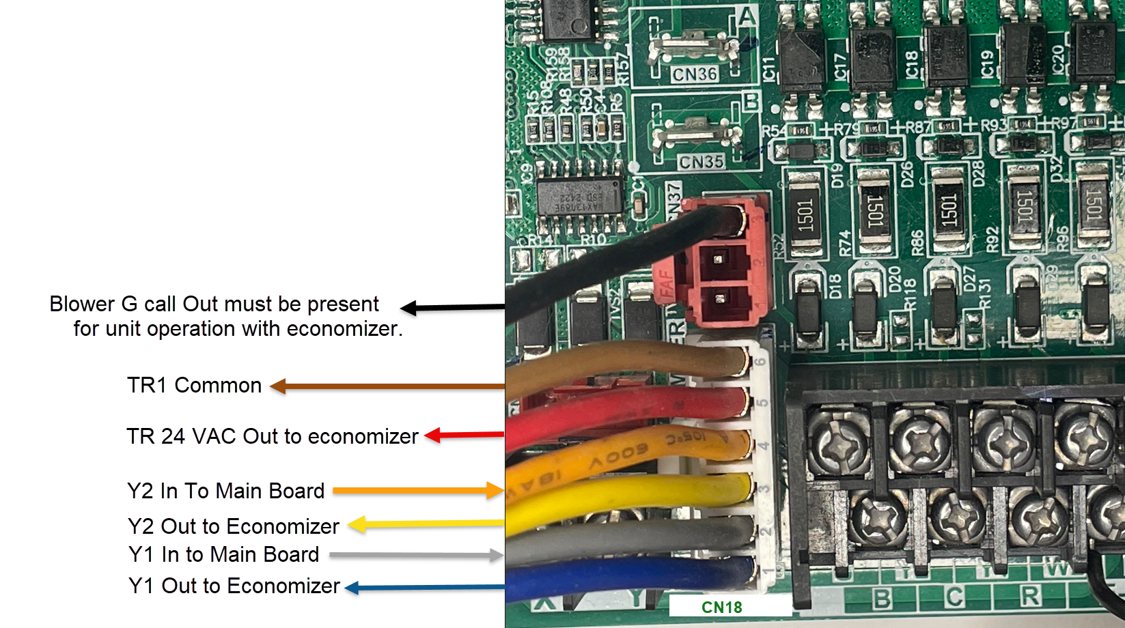

Main Board CN18 plug connection. This diagram shows voltage to economizer and back to the main board for compressor operation.

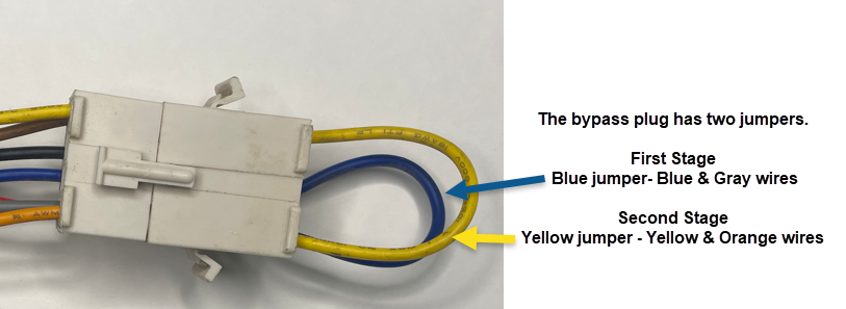

Here is the Bypass plug and the jumpers. this plug should be left inside control panel when removed for economizer installation for later use when needed.

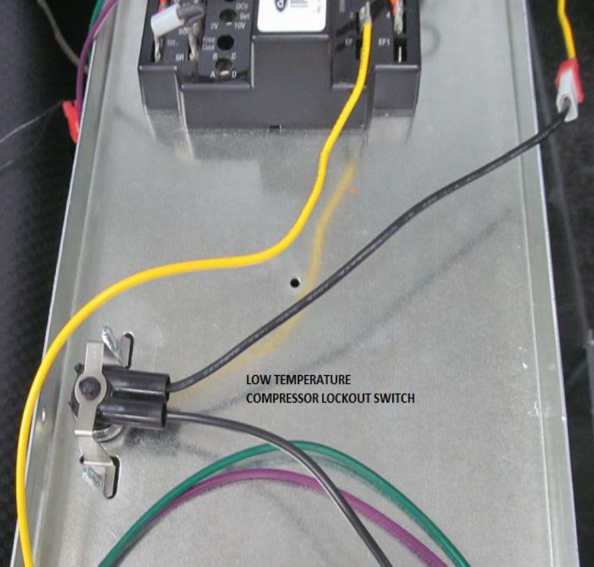

Here is the compressor thermal disk for second sstgae operation.
Notes:
- Low Temperature Compressor Lock-out Switch (LA) opens at 42°F and resets at 57°F.
- Factory-installed 620 OHM, 1 WATT, 5% Resistor on SR AND SR+ should be removed only when an enthalpy sensor is added to SR AND SR+.
.
