BCI2-R (BST) BACnet Setup Tool Software compatibility
Summary:
The BCI2-R is not compatible with the (BST) BACnet Setup Tool Software
- The (BST) BACnet Setup Tool Software is Not Compatible with the new BCI2-R v8.00.0025 for 3rd party BAS integration and is only compatible with BCI-R v7.03.008
- 3rd Party Integrators are going to need to connect to BCI2-R using Web browser 198.80.18.1

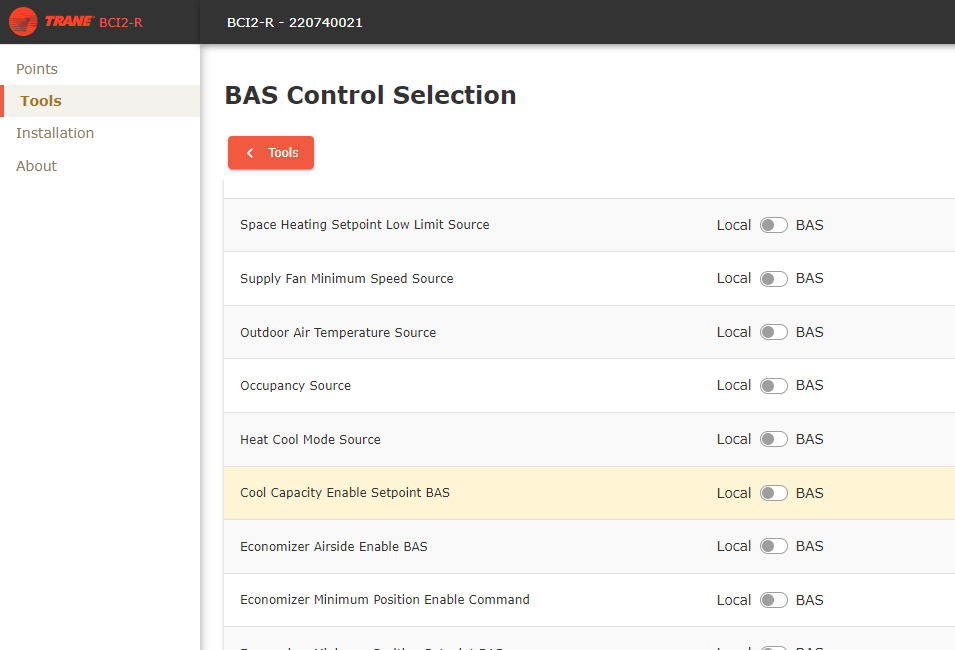

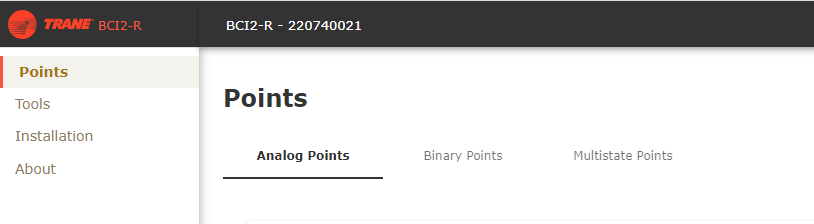

Once connected to BCI2-R via Web browser, Integrator can use either "Tools/BAS Control Selection" to switch control of the available points from "Local" to "BAS" or use the "Points", to view available Analog Outputs, Binary Output or Multistate Output to reset the points "out of service" property to "in service" and "override" the current value
