BCI2-R addressing and baud rate setup using the embedded service tool
Summary:
Following these steps, you should be able to successfully set up BCI2-R addressing and baud rate using the embedded service tool for your device
No special software required all you need to use is a web browser for examples Google Chrome, Microsoft Edge and Firefox. Type IP address 198.80.18.1
Step 1) Connect USB cable to controller open web browser and type in address 198.80.18.1
Fig. 1

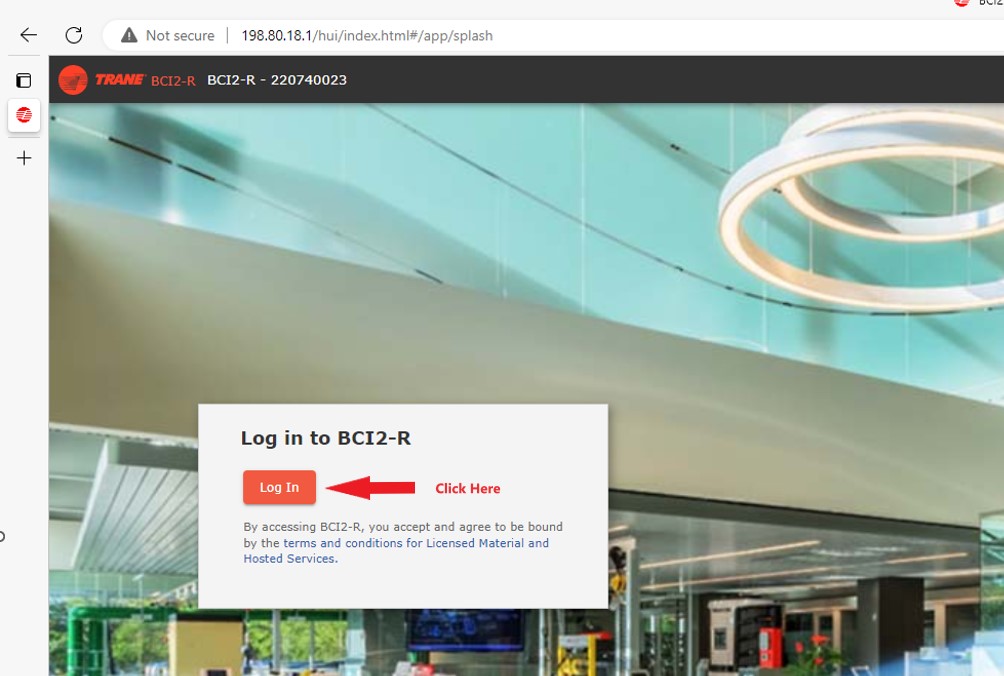

Step 2) Click on the Login Fig. 1
Fig. 2
Step 3) Once you click login the screen will look like Fig. 2 go to Identification and Communication for addressing and baud rate setup.
Fig. 4

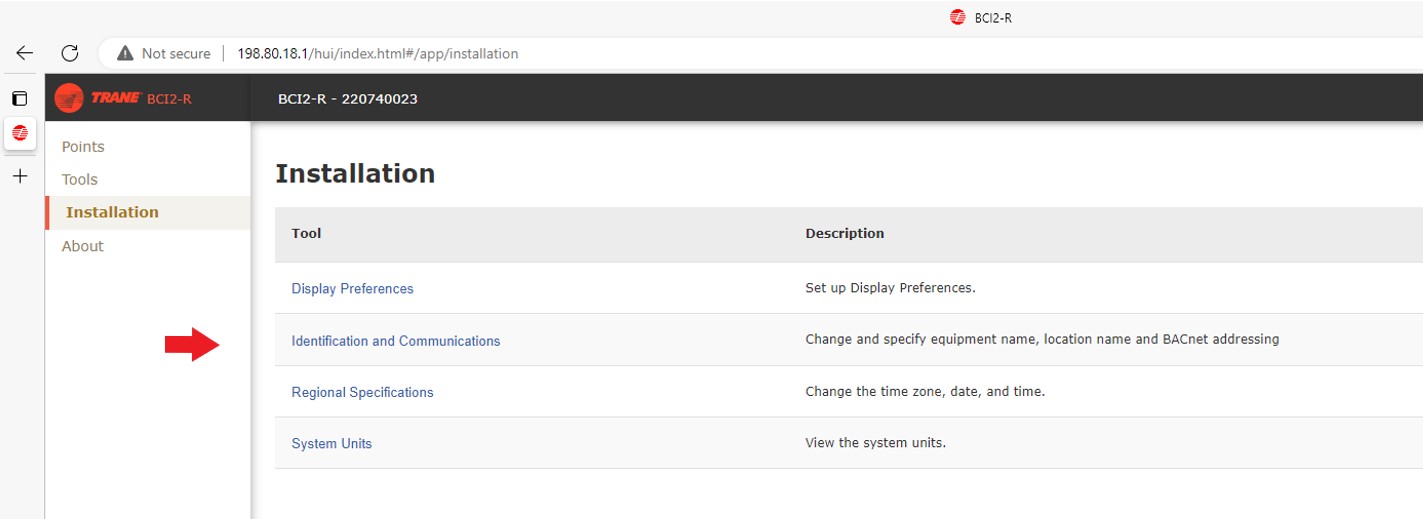

Step 4) Click on Identification and Communication Fig. 4
Fig. 5

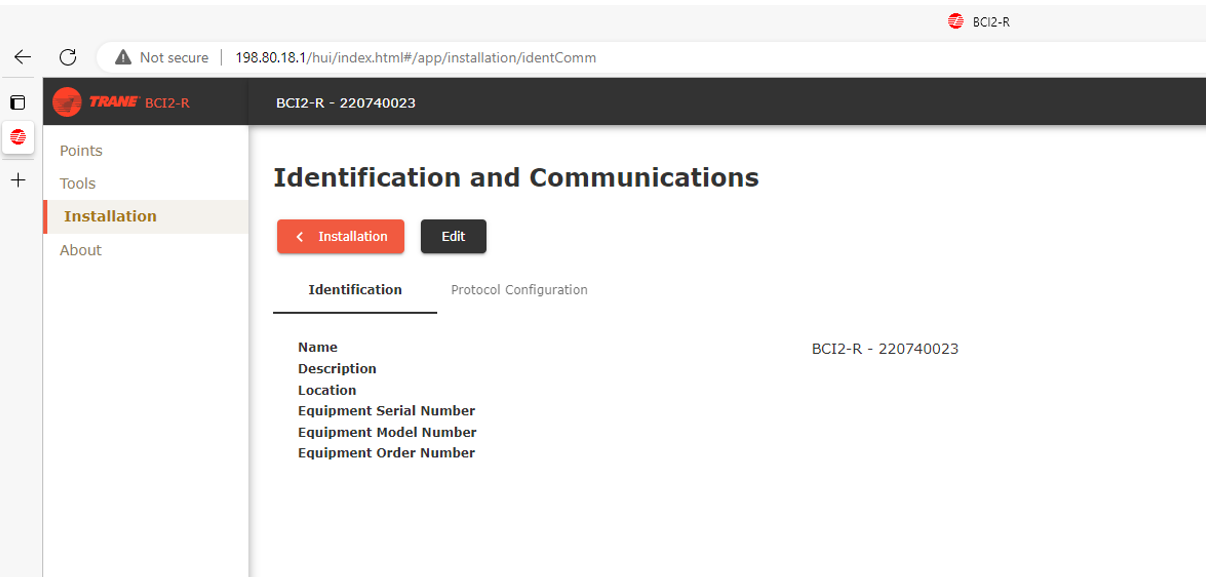

Step 5) Identification and Communication will lok like Fig. 5
Fig. 6
Step 6) Choose Protocal Configuration shown on Fig. 6 then click on Edit to make changes.
Fig. 7

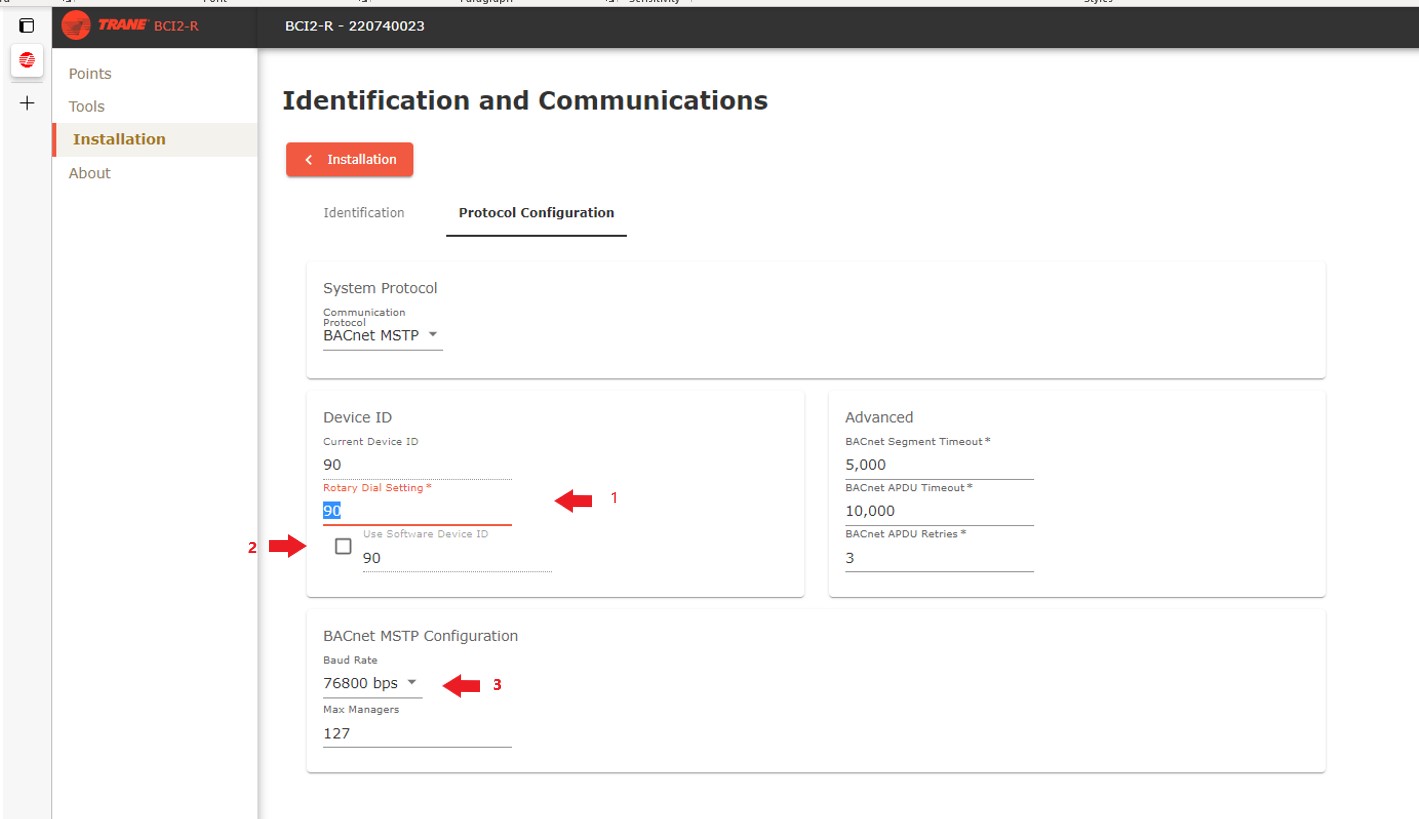

Step 7) To change tha Mac address, Device ID and Baud rate Fig. 7
1) Mac Address
2) Device ID
3) Baud Rate
Fig. 8

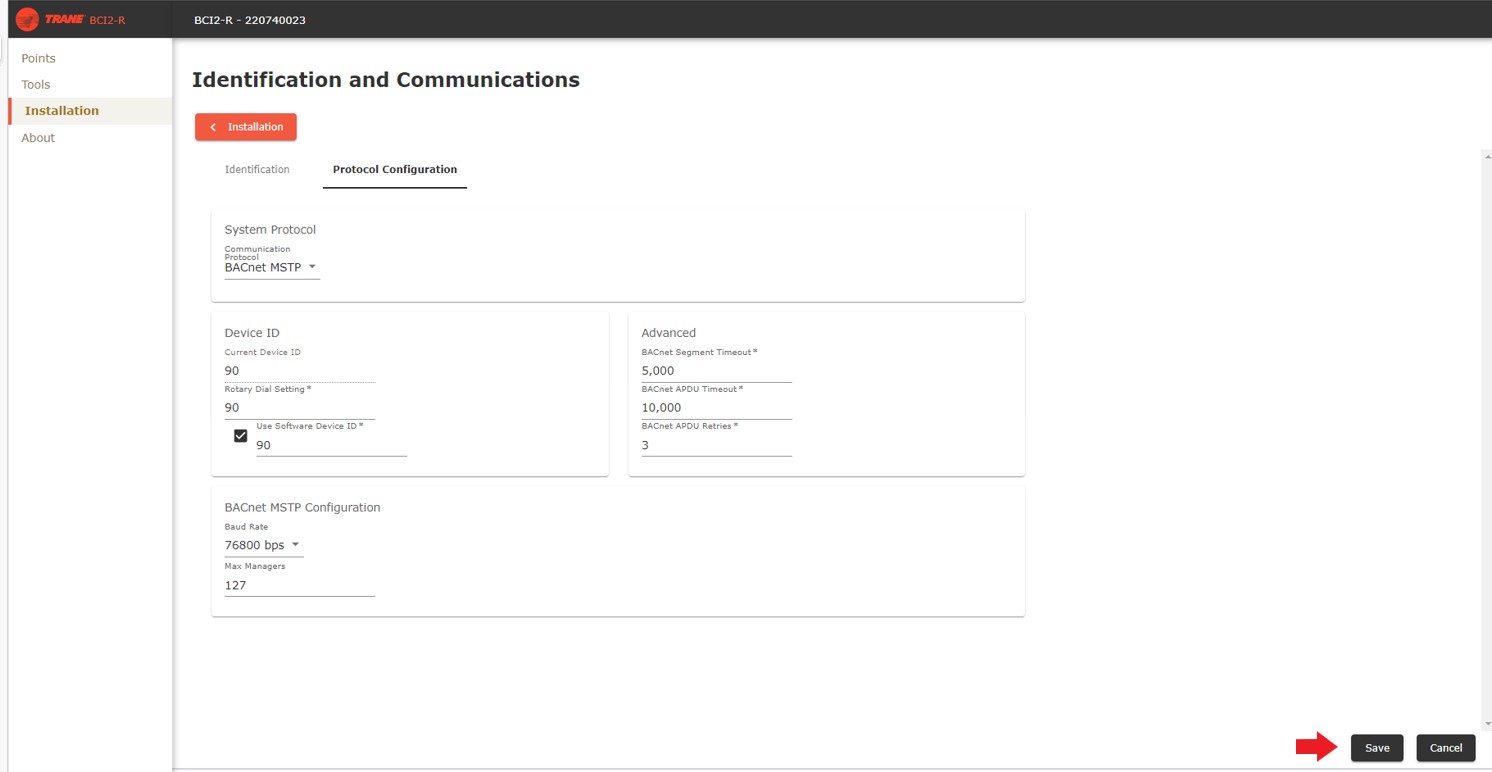

Step 8) Once changes are made the save button will change to black as Fig. 8 shows once that happens it can be saved.
