Clogged Filter Switch
Used With
| Model Number: | Used With: |
| FIACLFS001* | Precedent B or C cabinet (digit 39 = B, C), Standard or MERV 8 filters |
| FIACLFS002* | Precedent B or C cabinet (digit 39 = B, C), MERV 13 filters |
| FIACLFS003* | Precedent D cabinet (digit 39 = D), Standard or MERV 8 filters |
| FIACLFS004* | Precedent D cabinet (digit 39 = D), MERV 13 filters |
FIACLFS005* |
Precedent A cabinet (digit 39 = A), Standard or MERV 8 filters |
FIACLFS006* |
Precedent A cabinet (digit 39 = A), MERV 13 filters |
Installation Instructions
Click the e-library symbol for the latest version of the Clogged Filter Switch Installation Instructions.
Note
- An options board (FIAOPTN002*) must be installed in the unit for this accessory to operate.
- This accessory kit detects static pressure differentials across the filters to indicate a clogged or dirty filter condition. When it detects such a filter problem, the Symbio™ 700 will annunciate a filter change required alarm
Installation
Setting
- The pressure switch is factory preset at 0.45-inch WC (1.12 mbar) for FIACLFS001/3/5* and 0.75-inch WC (1.87 mbar) for FIACLFS002/4/6*.
Location

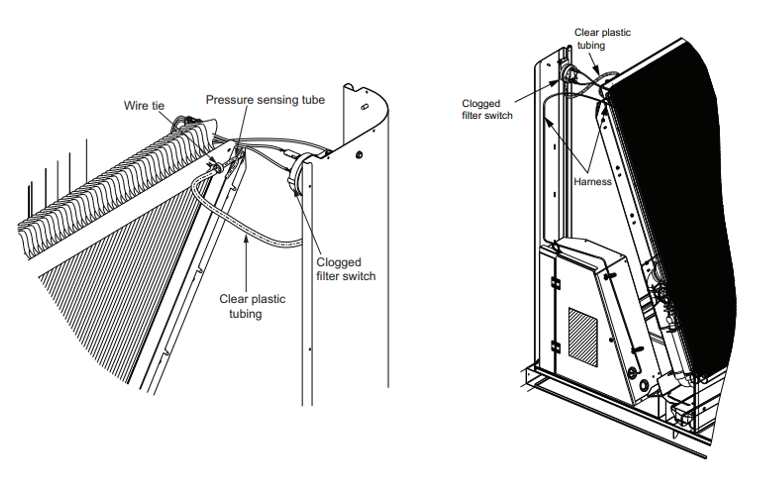

Cabinet B and C

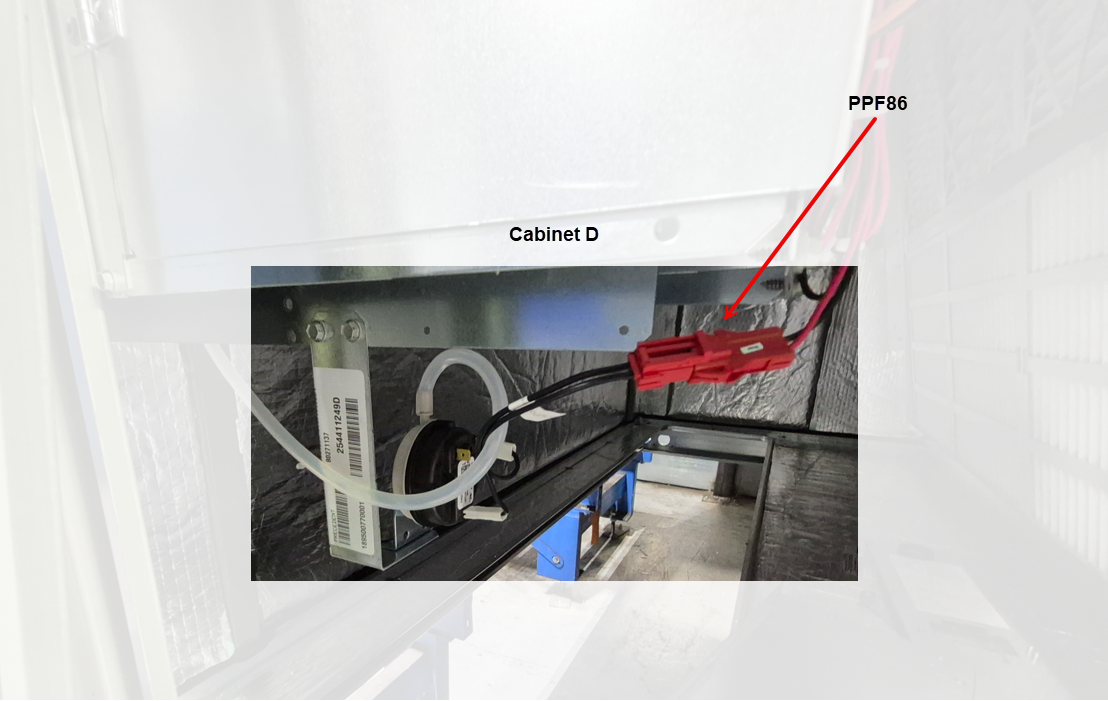

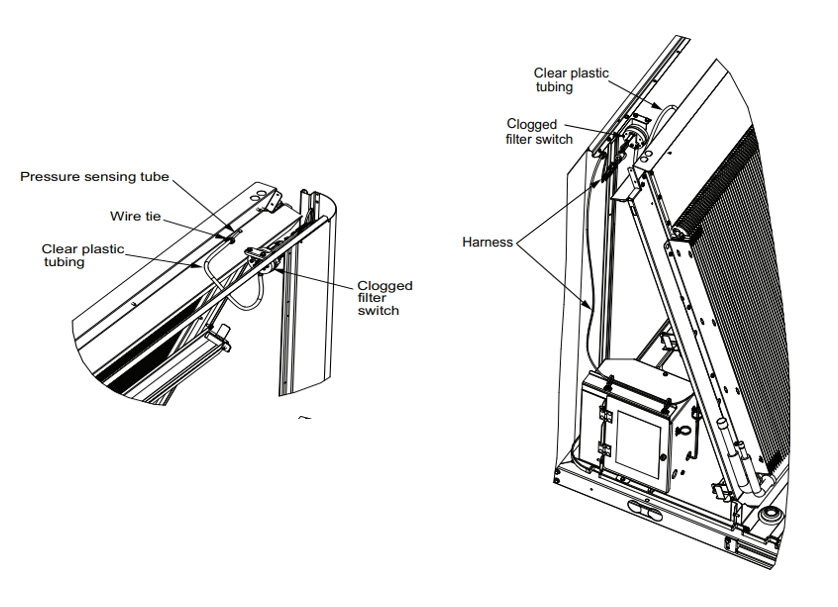

Cabinet D

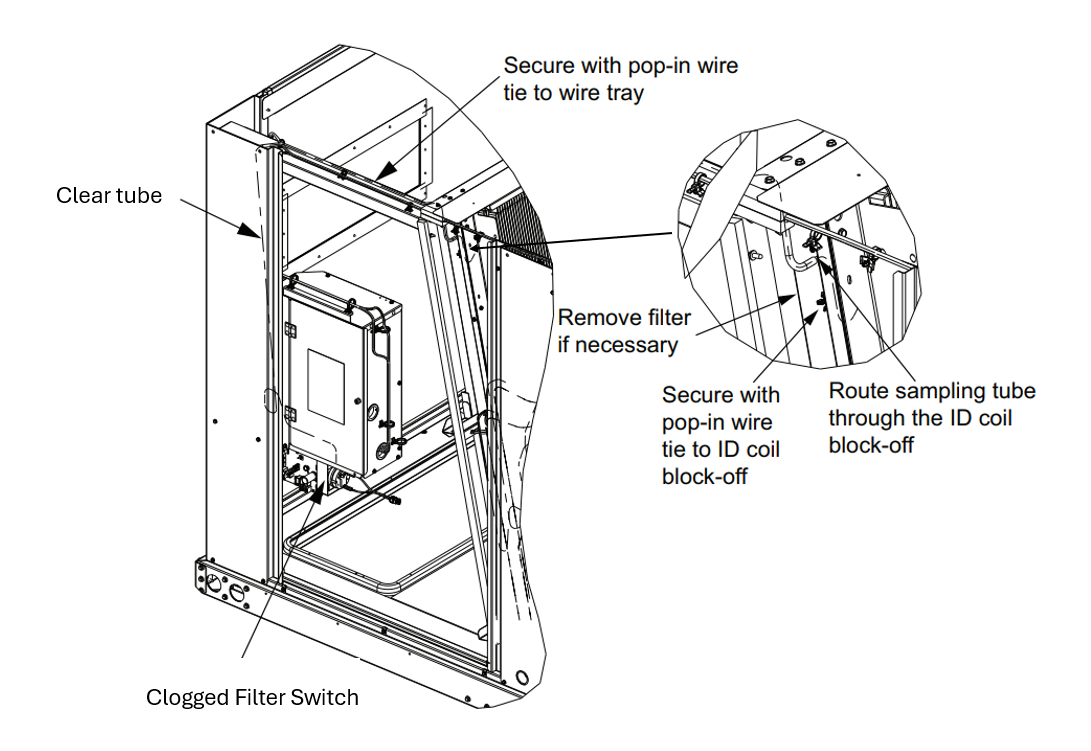

Cabinet A

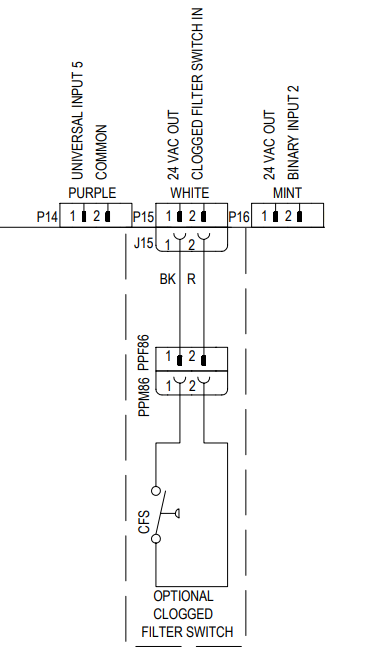

Wiring
- Using the control harness included in the kit, connect PPF86 from the harness to the connector on the clogged filter switch.
- Route the harness up the right side of the return enclosure and through the opening where the factory wires lead to the fresh air module inside the enclosure.

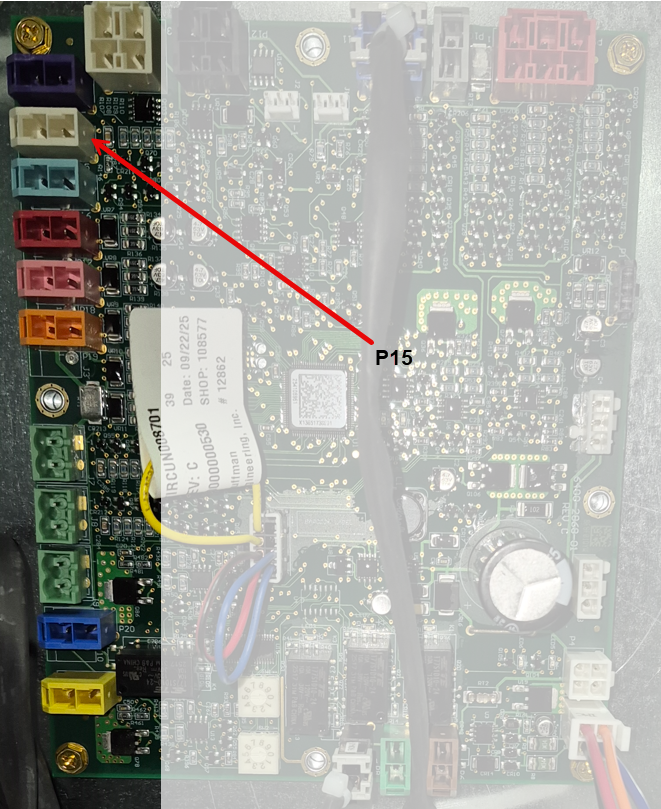

- Connect J15 of the harness to P15 on the fresh air module.
- Secure the harness with factory-installed wire ties using the releasable feature on each wire tie.
Configuration

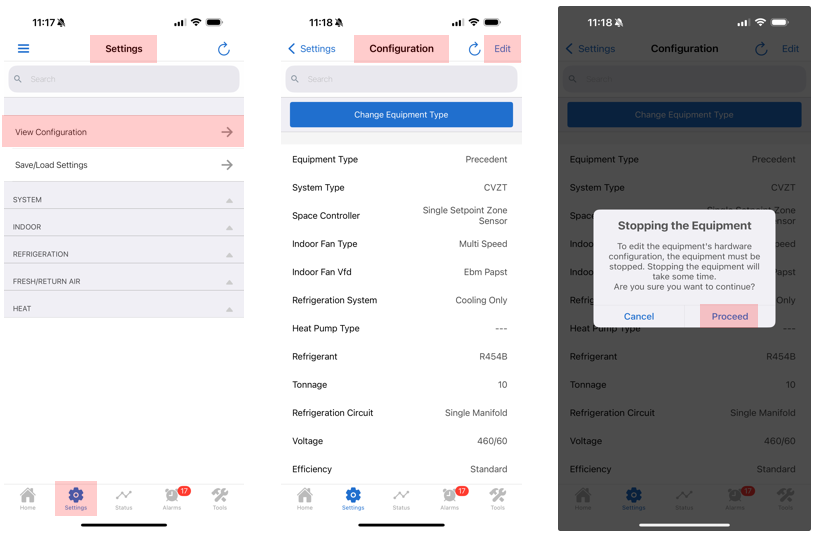

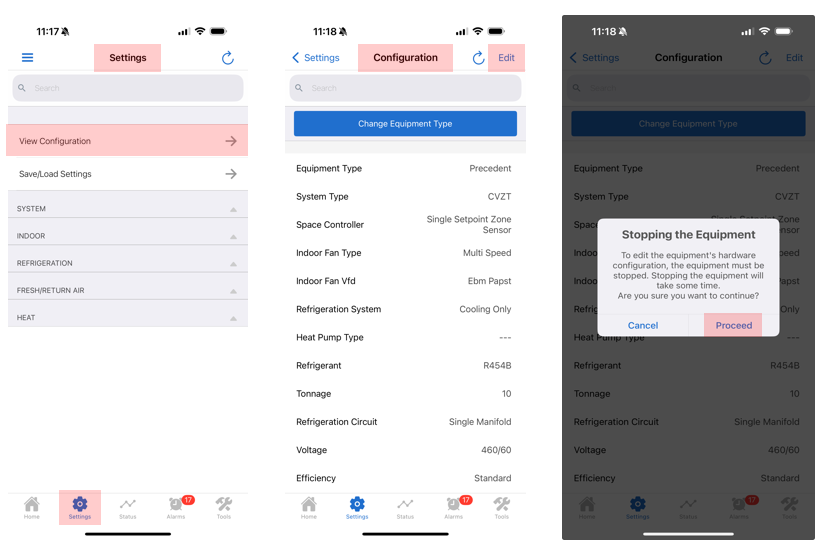

Phone App

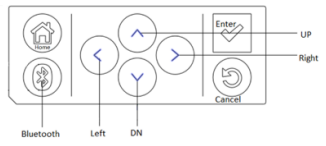

Using the Symbio 700 Onboard menu and keypad
- Press Home.
- Press the Down Arrow and select Utilities.
- Press the Check.
- Press the Down Arrow and select Unit Config.
- Press the Check.
- Press the Down Arrow and select Edit Unit Config.
- Press the Check.
- Press the Down Arrow and select Clogged Filter.
- Press the Check.
- Press the Down Arrow and select Installed.
- Press the Check.
- Press the Down or Up Arrow to Save Config.
- Press the Check.
- Press the Down Arrow to change No to Yes.
- Press the Check.
- It will say Edit Unit Config Updating.
