Customer Connection Module
Summary:

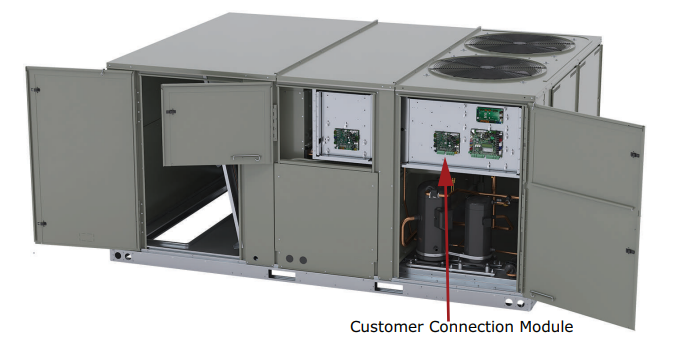

This kit is required when adding a humidistat, ventilation override, remote minimum position, external auto/stop, and alarm indicators. The Customer Connection module operates with the Symbio 700 in the condenser to provide logic control.
| Model Number: | Used With: |
| FIASCCM001* | Precedent™ and Voyager™ 3 with Symbio™ 700 Controls |
Click the e-library symbol for the latest version of the installation guide
Module Address

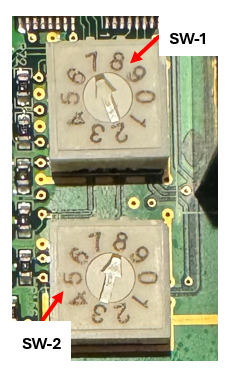

In the Customer Connection module, when it is field-installed, set the address rotary switches to 78. This is required to integrate the module with the Symbio controller. If the Customer Connection module was powered up before setting the address, reset the IMC link. To reset the IMC link, go to Tools > Service > scroll down to IMC LINK RESET.
For more information about addressing each module, click the link below:
What Symbio options module is needed with what options and address of each module

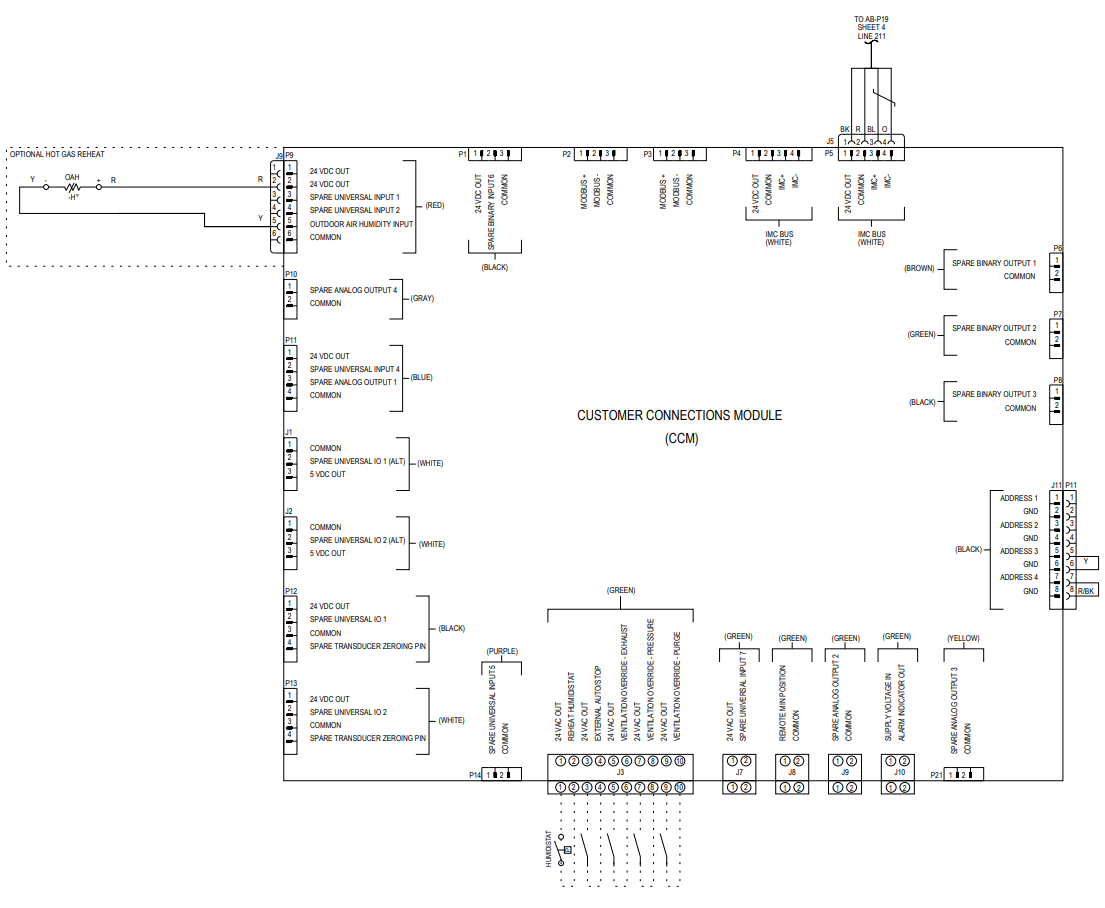

Wiring
Download the wiring diagram at the end of this article.
Configuration
