Drain Pan Overflow Switch
Used With
| Model Number: | Used With: |
| FIAOVFL001* | T/Y*036-300, W/D/G*036-300 |
Installation Instructions
Installation Instructions
Click the e-library symbol for the latest version of the Clogged Filter Switch Installation Instructions.
Notes
- An options board (FIAOPTN001*) must be installed in the unit for this accessory to operate.
- A condensate overflow switch is installed in the drainage system to detect when the water level in the drain pan reaches a critical point. When this happens, the switch will activate and send a signal to shut off the HVAC system, preventing further condensate buildup and potential flooding.

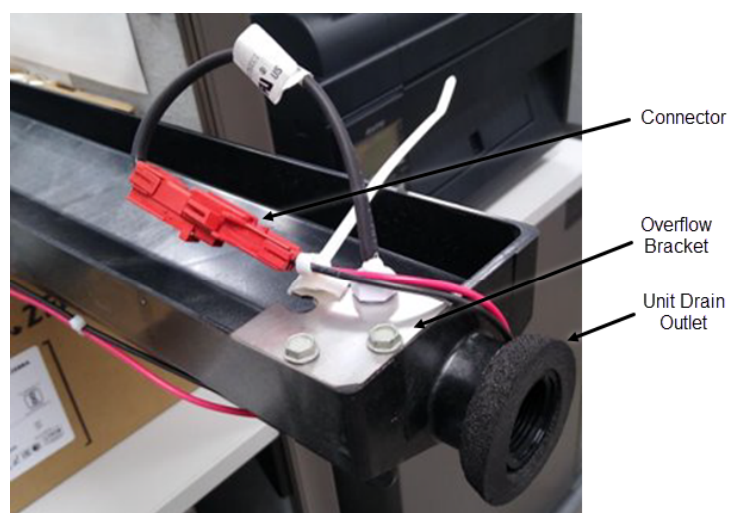

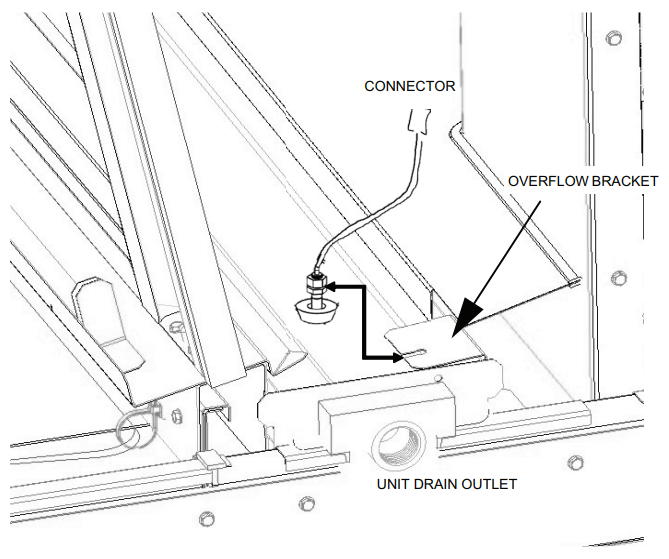

Location
A, B, & C Cabinet
D Cabinet
Wiring
Routing the Wire Harnesses
For detailed instructions, please reference the installation manual.
-

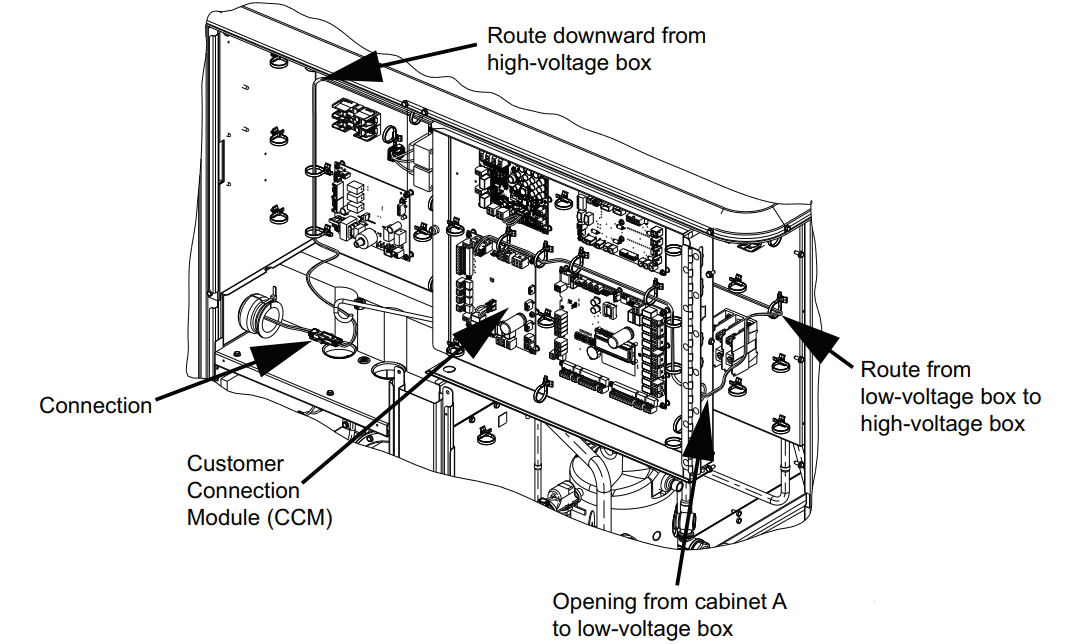

Cabinet A – route harness WIRCUN036801 from CCM-J12 to PPM21
-

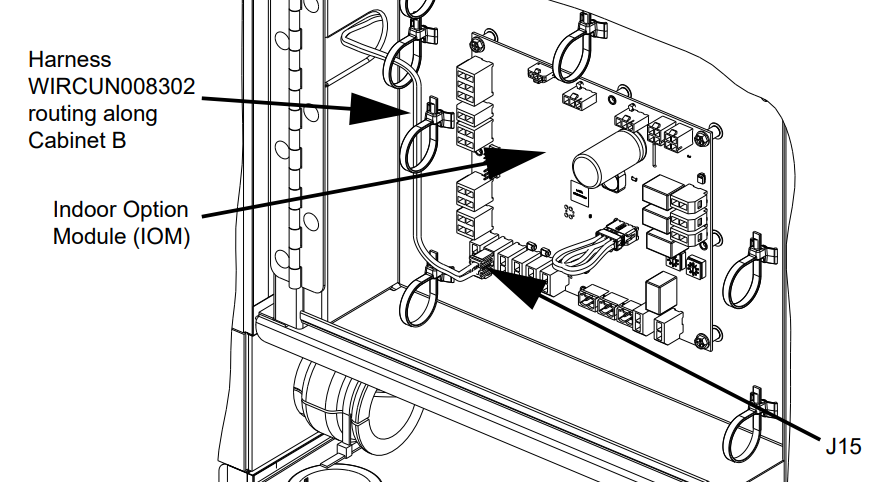

Cabinet B – route harness WIRCUN008302 from IOM-J15 to PPM21
-

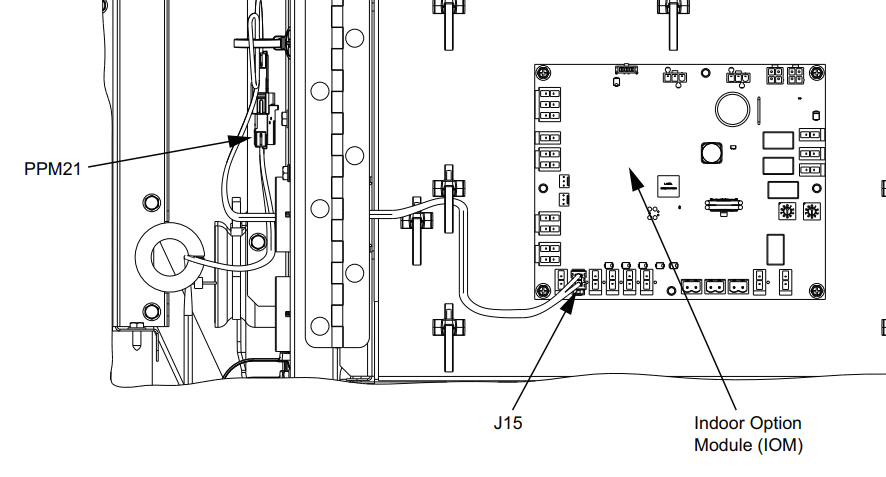

Cabinet C – route harness WIRCUN008302 from IOM-J15 to PPM21
-

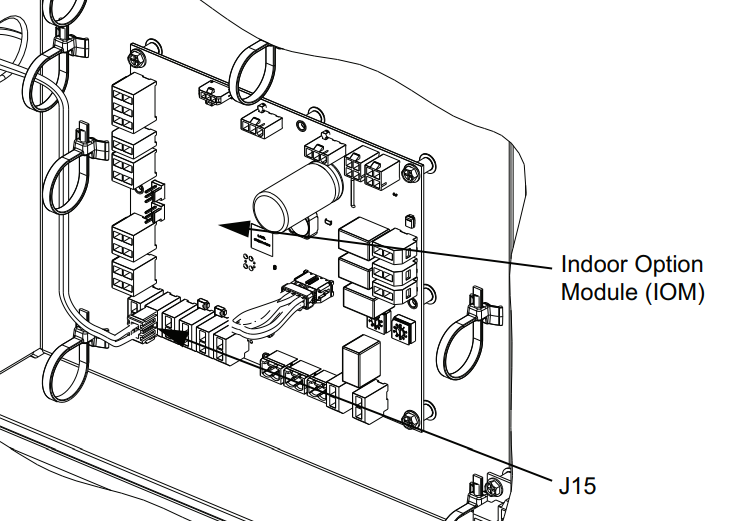

Cabinet D – route harness WIRCUN008302 from IOM-J15 to PPM21
Configuration

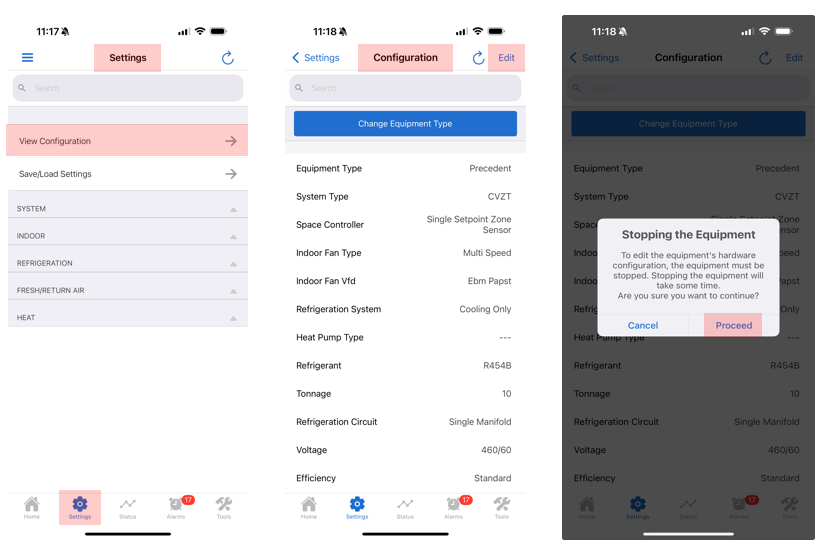

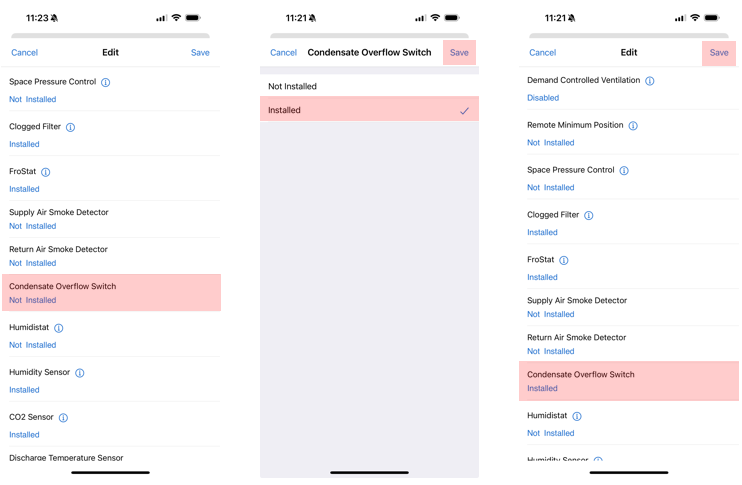

Phone App

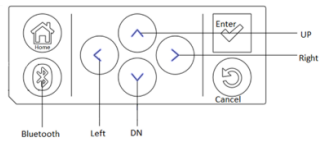

Using the Symbio 700 Onboard menu and keypad
- Press Home.
- Press the Down Arrow and select Utilities.
- Press the Check.
- Press the Down Arrow and select Unit Config.
- Press the Check.
- Press the Down Arrow and select Edit Unit Config.
- Press the Check.
- Press the Down Arrow and select Condensate Overflow Switch.
- Press the Check.
- Press the Down Arrow and select Installed.
- Press the Check.
- Press the Down or Up Arrow to Save Config.
- Press the Check.
- Press the Down Arrow to change No to Yes.
- Press the Check.
- It will say Edit Unit Config Updating.
