NOTES:
- Hydronic coils only
- Drain pan and coil can be rotated with the coil face remaining the same direction of air flow
- Motor rotation jumper would have to be reviewed IF the control box needed to be on the other side of the discharge
- Control boxes with electric heat box cannot be rotated
Instructions to rotate coil and main drain pan
1. Remove coil side panels on both sides.
2. Remove bracket on heater side (located near the filter rack).
3. Remove screws located at the top of the coil bracket on the leaving air side.

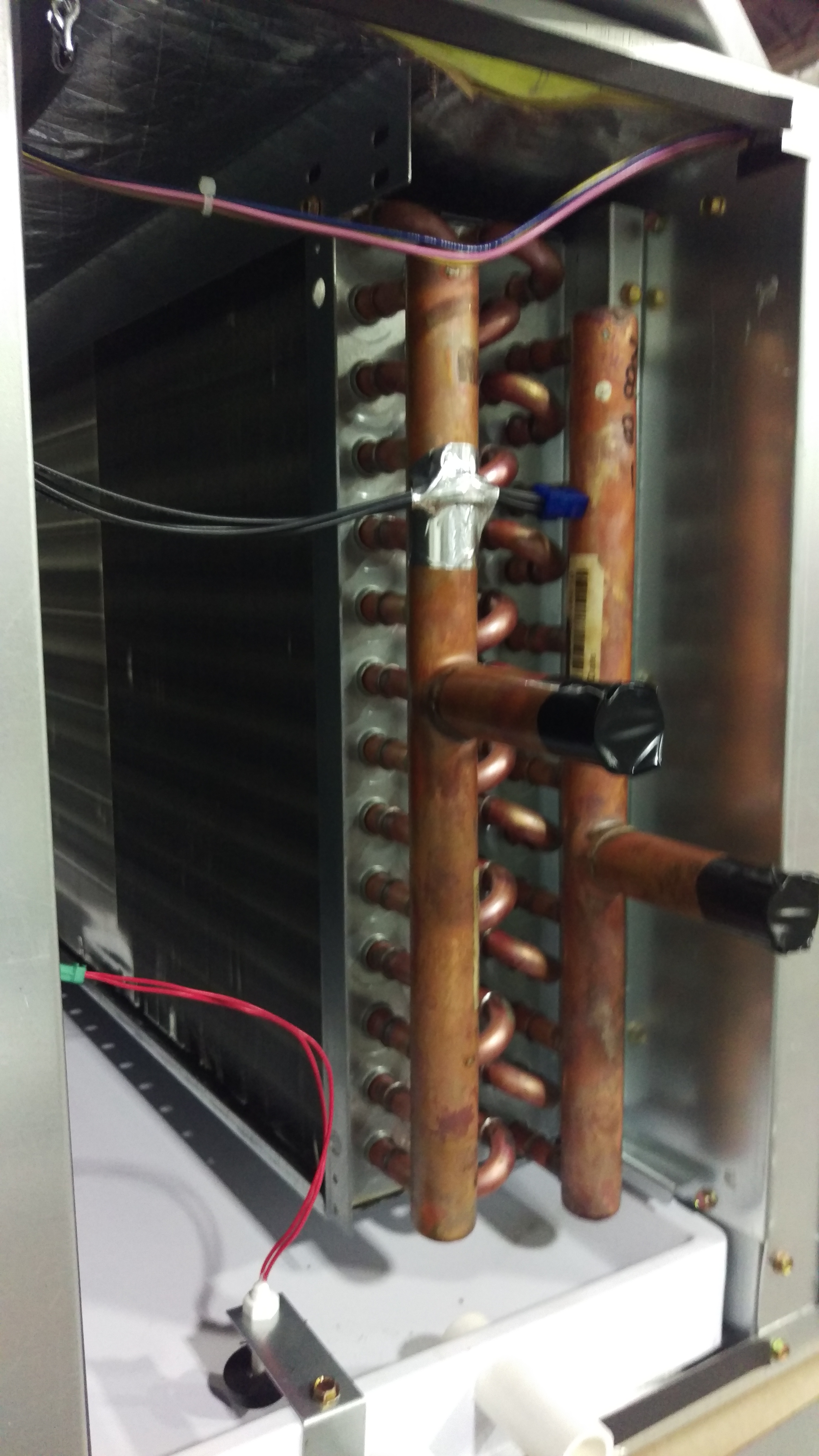

4. Slide the single coil or both heating and cooling hydronic coils out.

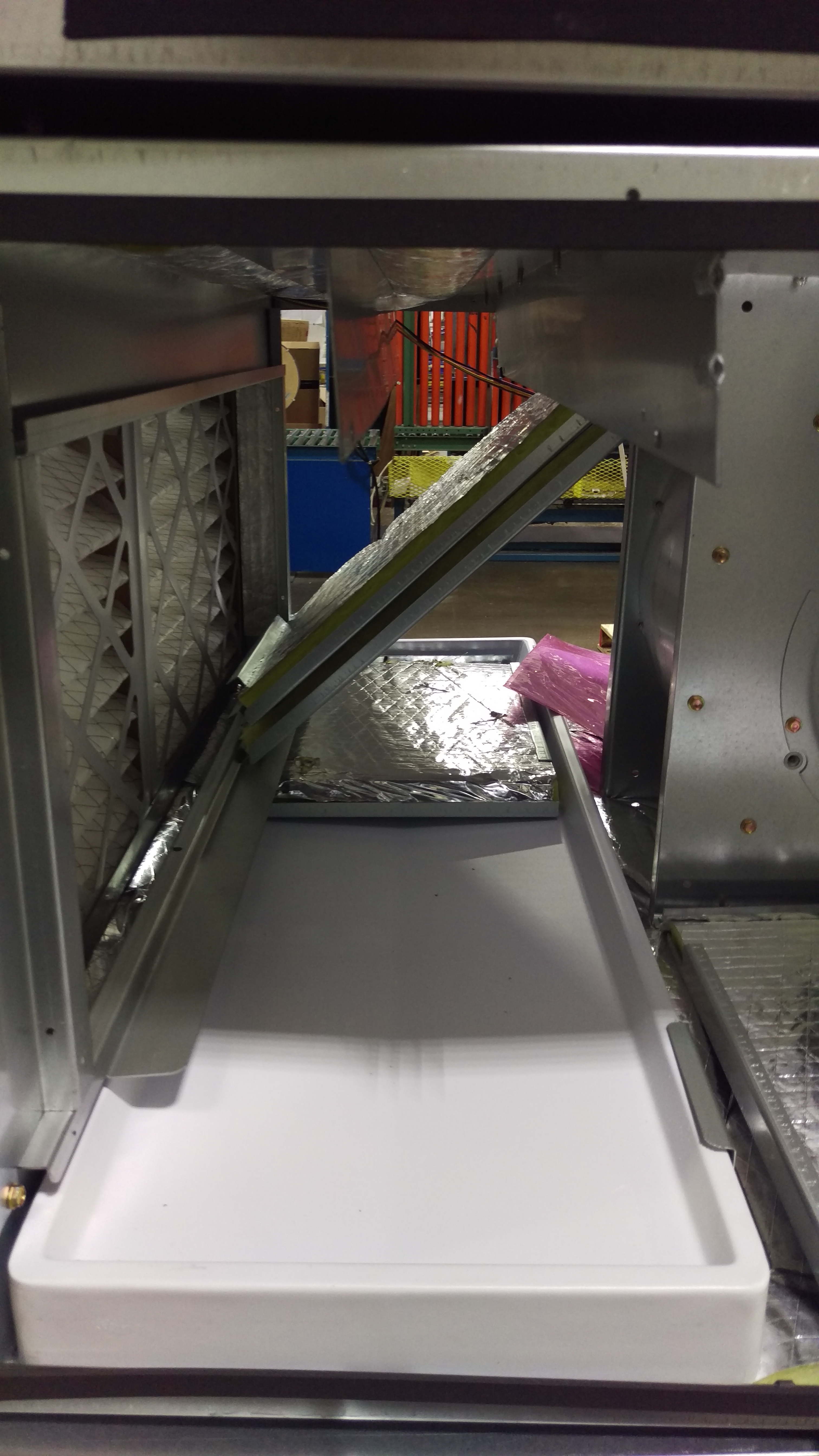

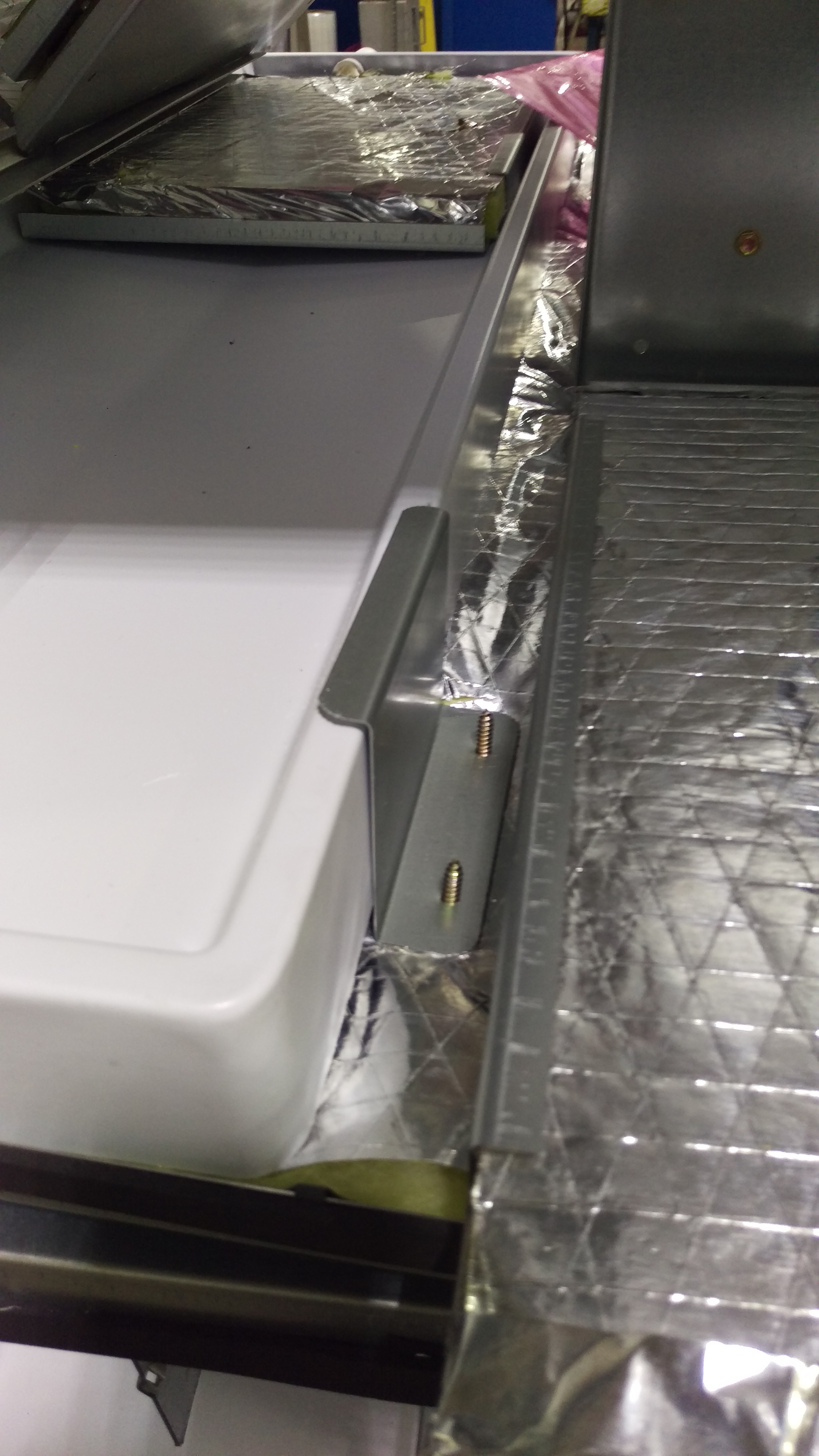

5. Bend over or remove brackets holding the main drain pan down (Screws are inserted from underneath the unit).
6. Remove the drain pan and relocate spout to the other side.

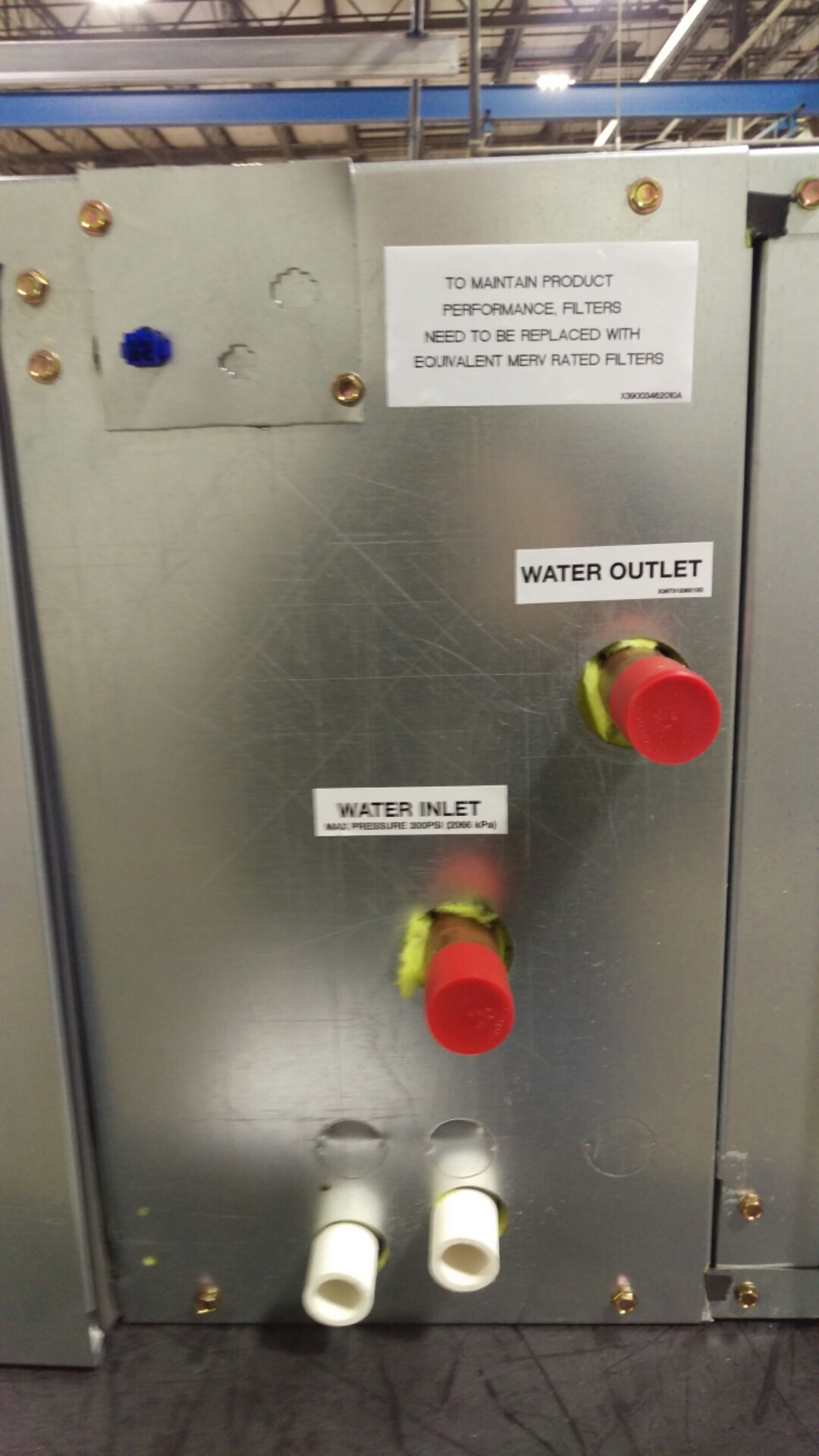

7. Relocate coil to the opposite side (maintaining entering and leaving air sides (windmill)- NOTE: Supply and return connections will move up or down however the supply will always be on the leaving air side of the coil.
8. There are tabs that the coil housing will slide into for proper fit.
9. Extend wires as needed for end devices if ordered.
10. Swap coil outside end panels.
11. Cut holes and cover holes as needed on the header side.
