Issue:
Motor t-stat failure
Resolution:
- If one of the internal motor t-stats (clicks-on device) fails, it is permissible to bypass that device at the motor terminal plate (motor j-box) RTD studs to still allow proper protection into the E3 & E4 compressor module inputs.
- There is sufficient protection to allow the motor not to run in an unsafe manner. The CTs will monitor overcurrent and will protect the chiller if the motor is overheating.
See wiring diagrams for reference: RTAA-IOM-3, RTAA-W-2, RTAA-IOM-4A, RTWA-IOM-1A, RTAA-SVX-01A-EN, RLC-SVX07A-EN.
This wiring information is also available in the individual chiller wiring diagrams.

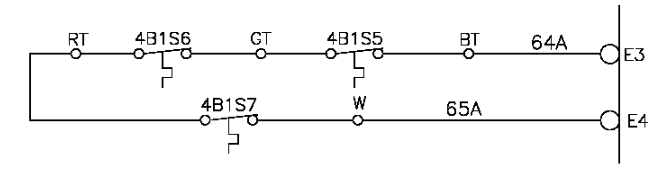

Example: Circuit 2 compressor module wiring: (move either wire 65A or 64A as needed to RTD studs RT or GT as needed.)
Notes:
Resource Available:
- Tech TV Video(s):
- N/A
- Reference Literature: (Electronic copies can be pulled from e-library at Trane Residential (tranetechnologies.com))
- IOM: RTAA-IOM-3 , RTAA-IOM-4A, RTWA-IOM-1A, RTAA-SVX-01A-EN, RLC-SVX07A-EN
- Service Guide:
- Other:
- RTAA-W-2
Changes:
Other Question/Problem/Cause Statements:
- Motor t-stat failure
- Bypassing motor thermostat
- Motor winding t-stat bypass?
Facts:
- RTAA 130-400 TON (PUEBLO)
- Air-Cooled Chiller (Pueblo) (RTAA 70-125 Ton)
- Compressor Chiller (Pueblo) (RTUA)
- Water-Cooled Chiller (Pueblo) (RTWA)
Document Identifier: DOC-78342
Document Identifier: 78342
