CGWD, CGWE, CGAD, CGAE, CCAD, CCAE:
- High Motor / Refrigerant Temperature - Compressor A B, C, or DC1, C2, C3, or C4
- This diagnostic is displayed when the High Motor/High Refrigerant Temperature input for the compressor is open.
- Normally, this occurs when either the motor winding thermostat or the refrigerant discharge thermostat for the respective compressor has tripped.
- This is a CMR diagnostic.
- This could mean a faulty t-stat, a bad motor, or both.
- Before condemning the compressor, ensure there is no wiring problem.
Typically you will need to replace the compressor.

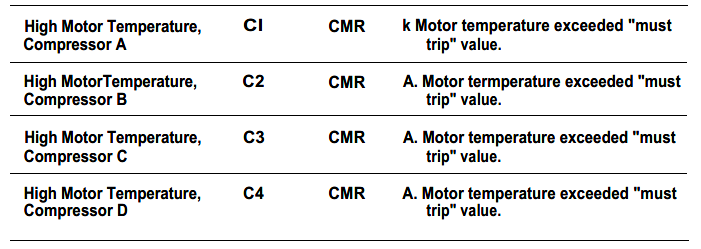

High Motor Temperature, Compressor A C1 CMR k Motor temperature exceeded "must trip" value High Motor Temperature, Compressor B C2 CMR A. Motor temperature exceeded "must trip" value High Motor Temperature, Compressor C C3 CMR A. Motor temperature exceeded "must trip" value High Motor Temperature, Compressor D C4 CMR A. Motor temperature exceeded "must trip" value
Additional details
Facts
- Air-Cooled Chiller (PBL) (CGAD, CGAE)
- Compressor Chiller (PBL) (CCAD, CCAE)
- Water-Cooled Chiller (PBL) (CGWD, CGWE)
- Compressor Chiller (PBL) (CCAA, CCAB, CCAC)
- Water-Cooled Chiller (PBL) (CGWA, CGWB, CGWC)
