*LCU Precedent Motor Wiring with Replacement 3-Speed motor
The original fan motor used in some 3-5T Precedent units originally used a 2-speed motor that used a high-speed relay (HSR) to switch between high and low speeds.

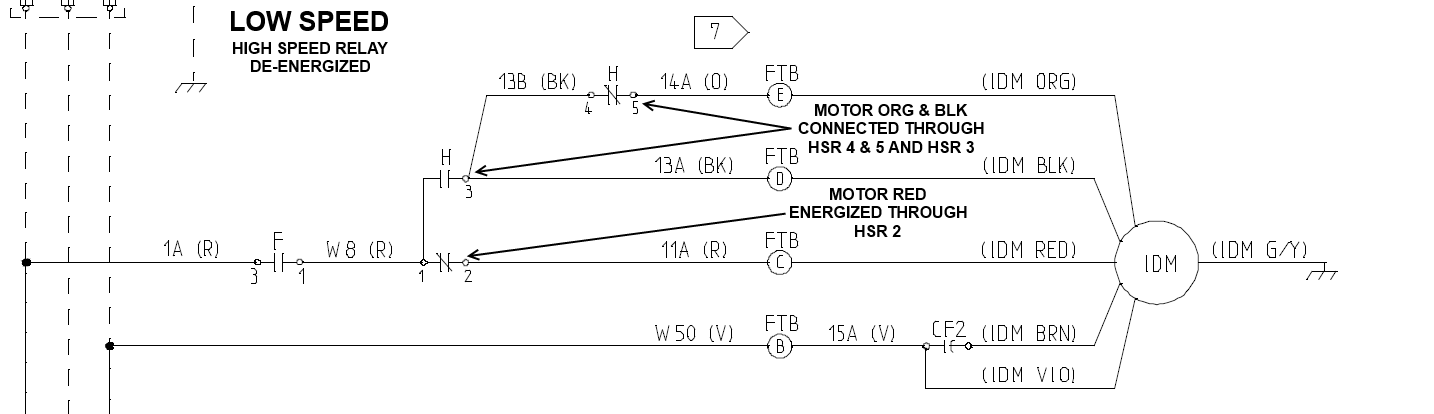

Low-Speed Operation
Motor ORG and BLK wires connected, RED & VIOLET powered

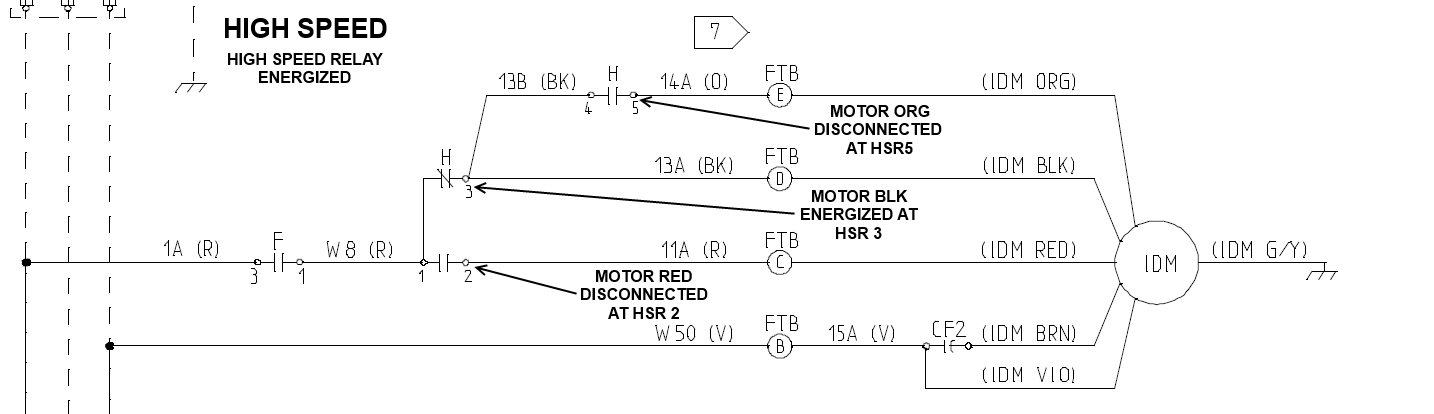

High-Speed Operation
Motor ORG & RED isolated, BLK & VIOLET powered
The replacement motor may be a 3-speed motor with more wires than the original and different wire color designations (details from 3T unit using MOT18824 shown below).
Note: YELLOW and BROWN are connected internally in the motor, there is no need to connect YELLOW, but it can be connected to the same side of the capacitor as BROWN
Below is a wiring diagram that illustrates how to adapt this new 3-speed motor to the unit's 2-speed HSR wiring:
