*LCU Precedent R-22 Two Tap Indoor Info
Solution:

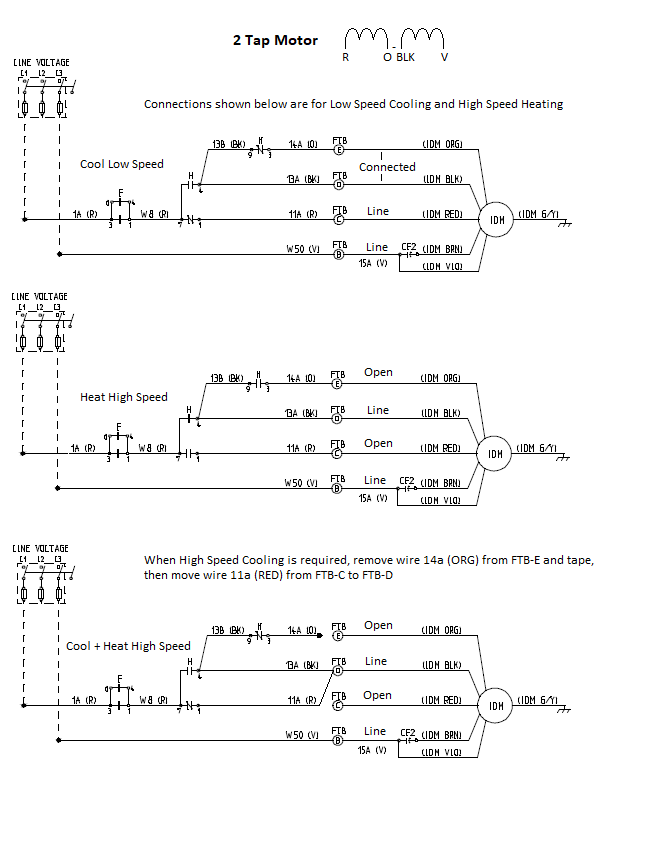

Below is a diagram of how the 2 Tap Motor receives line voltage in Heat and Cool Mode.
