*LCU Precedent BC Plenum Fan Troubleshooting
Solution:
Below is a diagram for a Precedent Gas Heat Unit with the BC Plenum Motor showing Reliatel and Electromechanical speed inputs (PPF-IDFC Pins 1 & 8)
T
First make the motor sure is getting all 3 Phases of power.
- Separate PPF-IDFC (unit side) and PPM-IDFC (motor side).

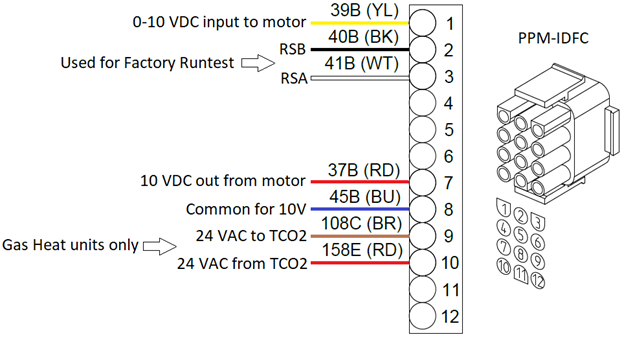

- Locate the following on PPM-IDFC;
- Pin 1, wire 39B, yellow
- Pin 7, wire 37B, red
- Pin 8, wire 45B, blue
- On the PPM-IDFC plug check pins 7 & 8 and verify the presence of 10 VDC.
- If 10 VDC is present continue to step 4.
- If 10 VDC is NOT present and it is getting all 3 Phases of power the motor is bad, assuming wires 37B(RD) and 45B(BL) are intact all the way to the motor.
- Jump PPM-IDFC pins 1 & 7 together.
- If the motor starts and ramps to full speed the motor is good.
- If the motor still doesn’t run the motor is bad, assuming wires 39B(YL) and 37B(RD) are intact all the way to the motor.

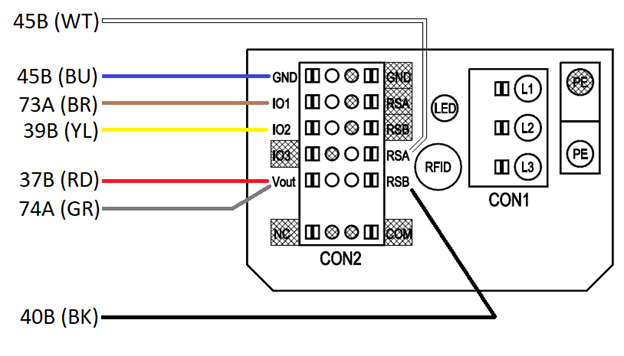

EBM Motor Internal Connections
Note: Shaded gray not used
Motor data from EBM-Papst
208 – 230 Motor
Current draw 7.0 Amps, 2300 Watts
380 – 480 Motor
Current draw – 3.6 Amps, 2300 Watts
Both Motors
Direction of Rotation – Clockwise, viewed toward rotor
Weight – 36.7 lbs, 16.65 kg
EBM Motor LED Codes - Applicable only to Third Generation Motors
Steady Green – Good ready for operation
Blinking Orange – Warning
Blinking Red – Failure
Note: Manual reset by "Switch off line voltage - wait briefly - switch line voltage back on"
|
Warning Codes |
|
|
Number of Pulses |
Motor Status - LED Orange |
|
1 |
Current limitation in action |
|
2 |
Line impedance too high (DC-link voltage unstable) |
|
3 |
Power limiter in action |
|
4 |
Output stage temperature high |
|
5 |
Motor temperature high |
|
6 |
Temperature inside electronics high |
|
7 |
DC-link voltage low |
|
8 |
Braking mode: set in case of external drive in opposite direction at high speed for lengthy period |
|
9 |
Calibration of rotor position sensor in progress |
|
10 |
Actual speed is lower than run monitoring speed limit |
|
11 |
Open circuit at analog input |
|
13 |
DC-Link voltage high |
|
15 |
Line voltage high |
|
16 |
Shake-loose function activated |
| Failure Codes | |||
| Number of Pulses | Motor Status - LED Red | Possible Cause | Possible Remedy |
| 1 | Phase failure or line undervoltage | Missing phase or poor power supply quality | Check line voltage |
| 3 | Overtemperature of Power Module | Electronics housing contaminated | Provide better cooling. Manual reset required |
| 4 | Communication error between primary controller and secondary controller | External supply applied via Vout for setting parameters. Internal error | Switch off line voltage - wait - switch back on |
| 6 | Motor Overheating | Ambient temperature too high Impermissible operating point | Reduce ambient temperature Correct operating point. Manual reset required |
| 7 | Hall Sensor Error | Internal Error | Switch off line voltage - wait - switch back on |
| 8 | Rotor Locked | Mechanical Blockage | Switch off - check safe isolation from supply - check freedom of movement of rotor |
| 9 | Speed limit exceeded | - | - |
| 11 | Rotor position sensor calibration error | Rotor position sensor calibration necessary. | Perform Module Pairing, see page 16 of RT-SVP08D-EN |
| 13 | DC-link undervoltage | Line voltage not OK | Check the line voltage applied |
