Supply Fan: Troubleshooting EBM Papst motor
Step 1: Safety First
Section 1 of the “Operating instructions” covers all the safety regulations and information related to the device. Review this document before starting any work on the device. You can find operating instructions on our website here: https://www.ebmpapst.us/en/products/operating_instructions/operatinginstructions.php
Step 2: Visual inspection
While following the safety precautions listed in section 1 of the operating instructions, visually assess the device's condition. Check for broken or bent blades, struts, or guard grilles. Check for locked rotor conditions due to “rubbing” between the rotor and its surroundings or foreign objects.
Step 3: Status LED

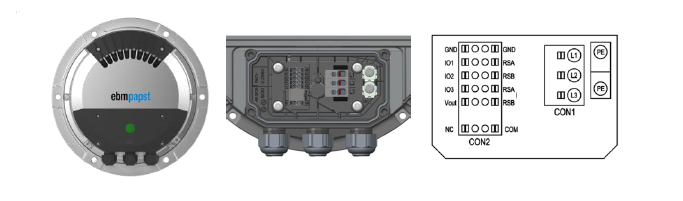

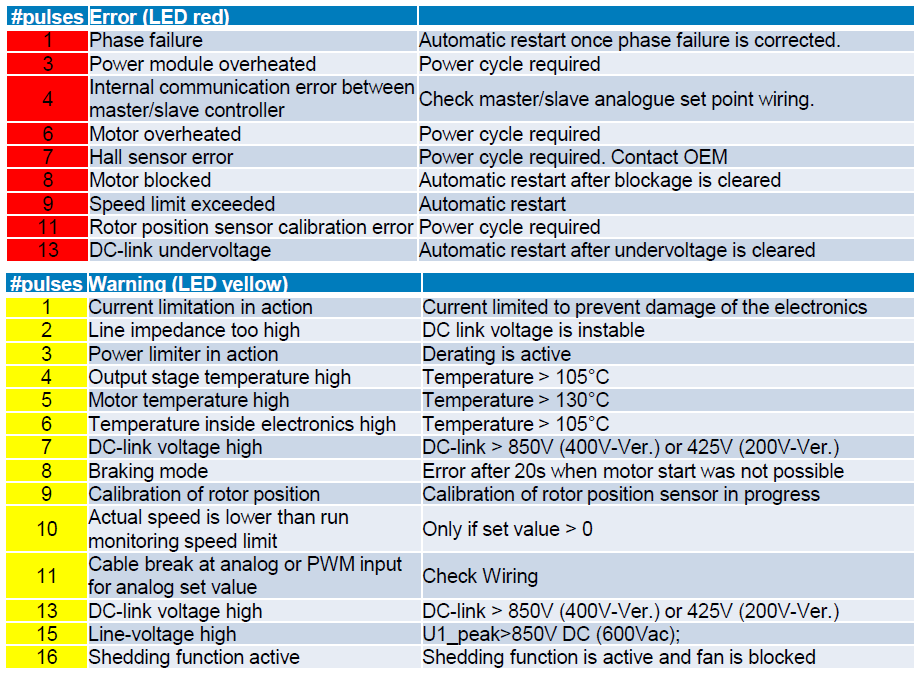

While the fan is still powered carefully approach it and check the Status LED located at the top of the fan motor junction box. If the LED is not visible through the junction box cover, cut power to the motor, remove the junction box cover, and restore power to the fan. Caution: The fan may start rotating. Check the LED pulses against the following list:
If there is no LED proceed to "Step 4"
Step 4: No LED? Check Fuses
Turn OFF the power mains or breaker box. Check all the fuses and connections. Make sure connections are on the wire strand and not on the wire insulation.
Are the fuses OK?
If fuses are ok, proceed to “Step 7”
If fuses are blown, proceed to “Step 5”
Step 5: Phase Resistance

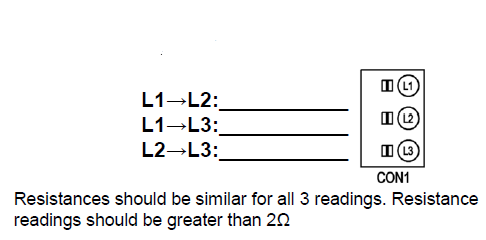

Caution: Power wires need to be removed. Make sure the power is OFF. Check resistances across the CON1 phases
Step 6: Resistance OK?
If resistances are ok, replace fuses. If resistances are not ok, replace the fan and check the system wiring for any faults.
Step 7: “Power cycle” the fan
Cut power to the unit by turning OFF the power mains or breaker box. Turn the Power back ON after 3 to 5 minutes to complete the power cycle. Re-check fan status. Continue to the next step if the issue is not resolved.
Step 8: Phase voltage
Check the mains voltage at each phase on the CON1 connector. Phases should all be present and similar in value. Make sure the voltage is within the acceptable voltage range as listed on the motor nameplate.
Step 9: Voltage output
Check the “Vout” output on the CON2 connector (between “Vout” and GND). If the motor is energized, but there is no 10VDC output present, the motor is damaged.
Step 10: Control signal
Check control input at the CON2 (IO2 & GND). Confirm there is a control voltage present at the CON2 connector. If there is no control signal present, contact the OEM to receive the correct wiring for this equipment.
Step11: Status relay

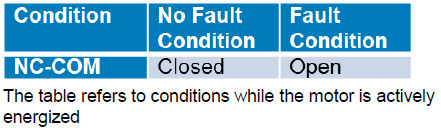

Check the alarm contact NC and COM in CON2. to determine if there are any fault conditions. Check for continuity
Step 12: EC-Control
Use a Modbus/RS485 connection to determine the fault condition. The ebm-papst’s EC Control Software is available free at our website www.ebmpapst.us under the support and download section.
