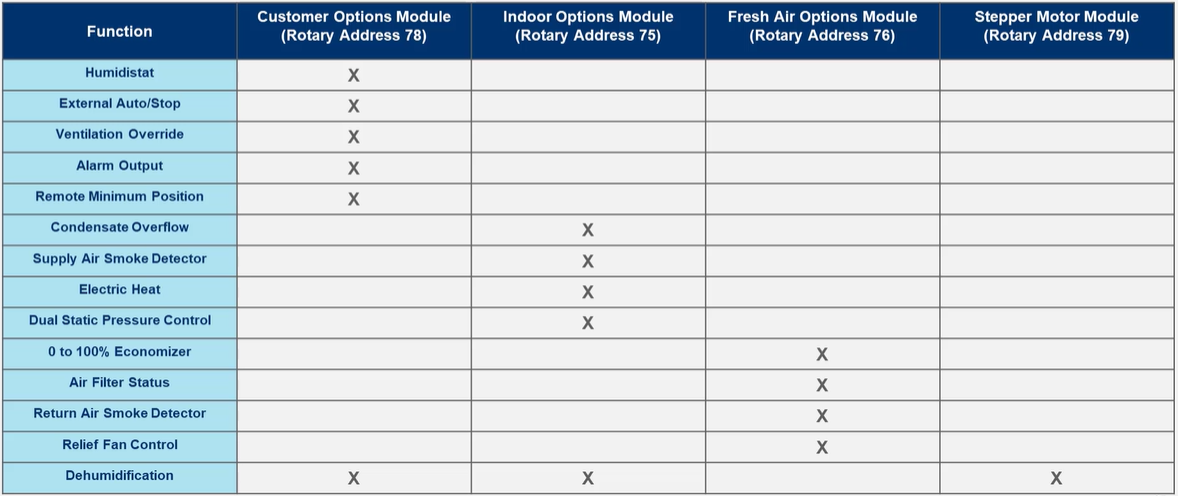

Symbio 700 - What options module is needed with what options and address of each module
Summary:
The Symbio 700 module address refers to the specific identifier assigned to the Symbio 700 module in a network. This address serves as a unique identifier for the module, allowing it to be recognized in the network. The Symbio 700 module address plays a crucial role in establishing communication and interoperability between the module and other connected devices, enabling seamless integration and functionality.
Addressing:

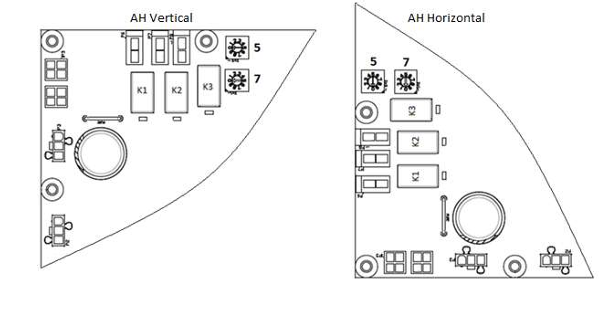

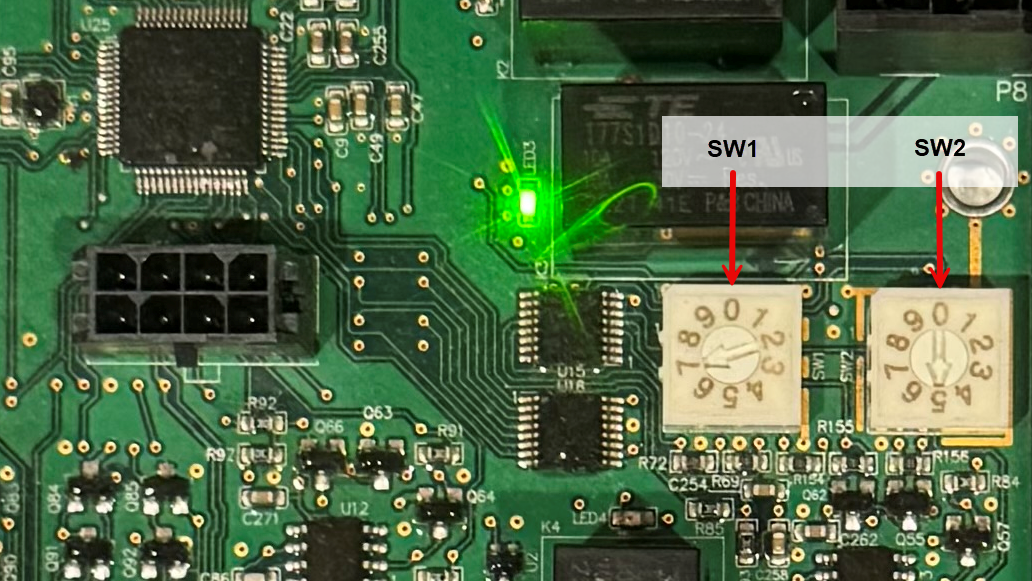

Set the options board address as the following example of indoor options module.
If the Options Board was powered up before setting the address, do an IMC Reset with the Phone App.
Go to Tools > Service > IMC link Reset

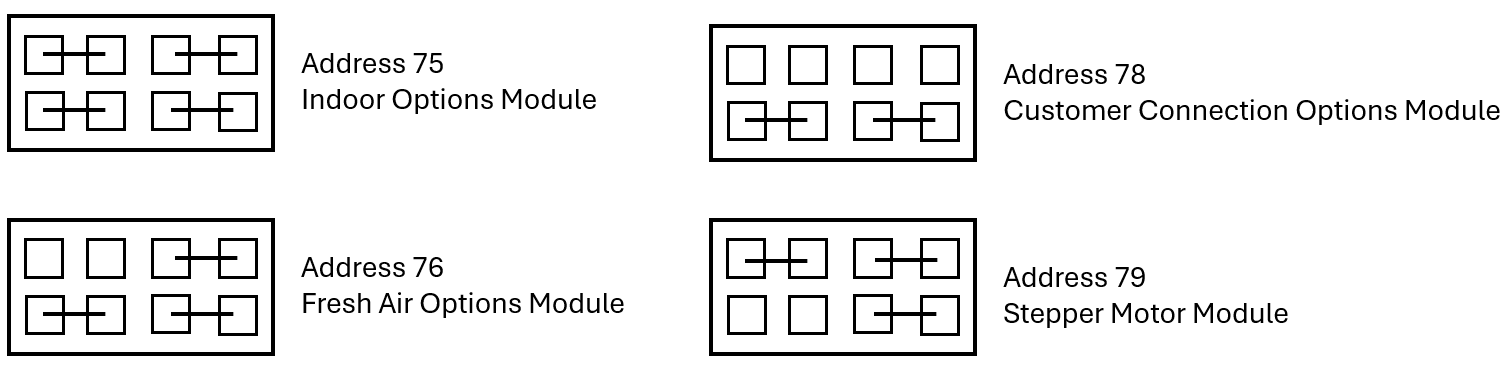

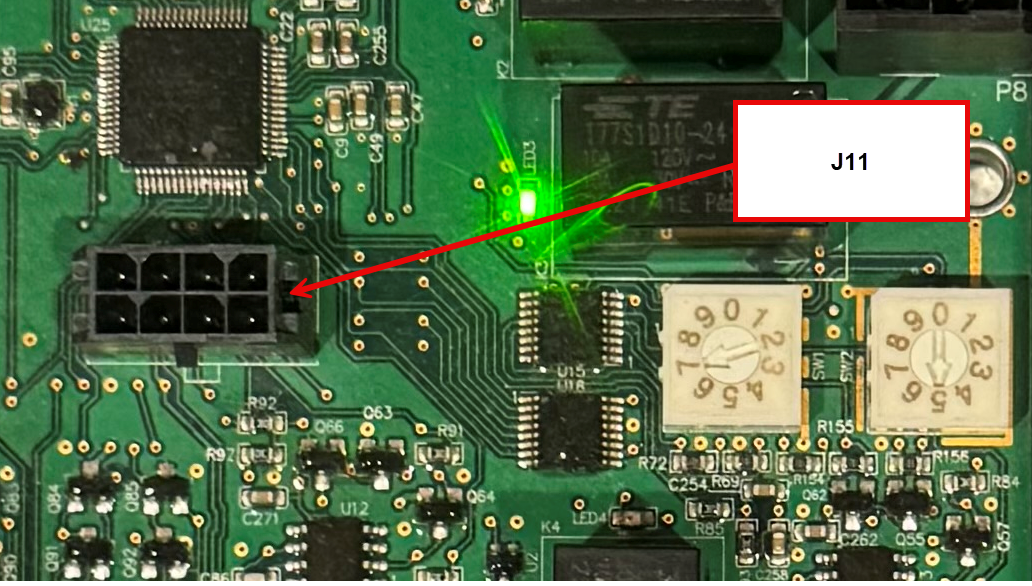

Factory Installed Option Module Address Configuration Plug:
- Indoor Options Module - J11
- Fresh Air Options Module - J11
- Customer Connection Options Module - J11
- Stepper Motor Module - J9
Links:
Customer Connection Module
Indoor Options Module
Fresh Air Options Module
