Troubleshoot

Does the FAOM Module have power?

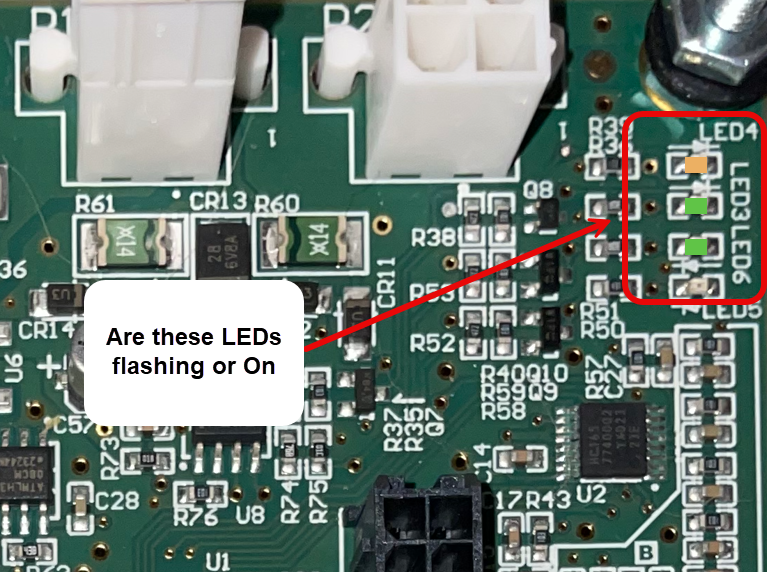

• Verify that the LEDs are powered up. (LED4, LED5, and LED6)

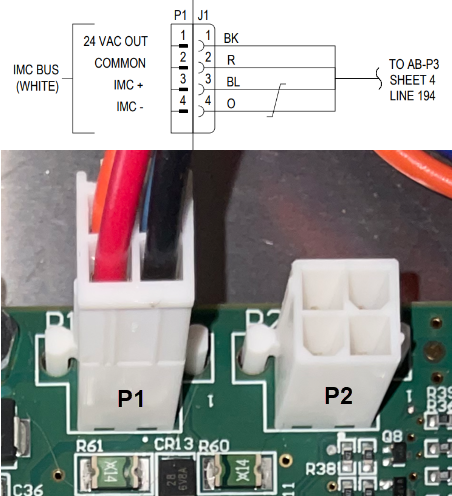

• Verify SMC-P1 has 24VAC between Red and Black
• Verify SMC-P1 has 3.2 - 3.9 VDC between Blue and Orange

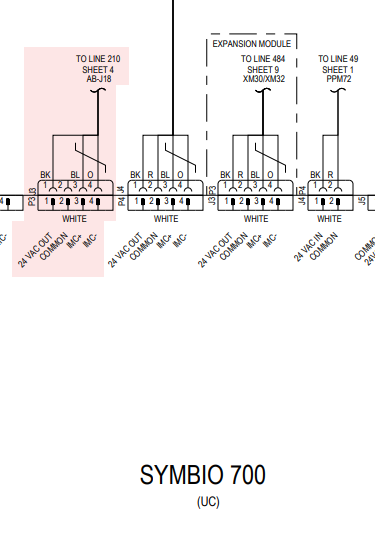

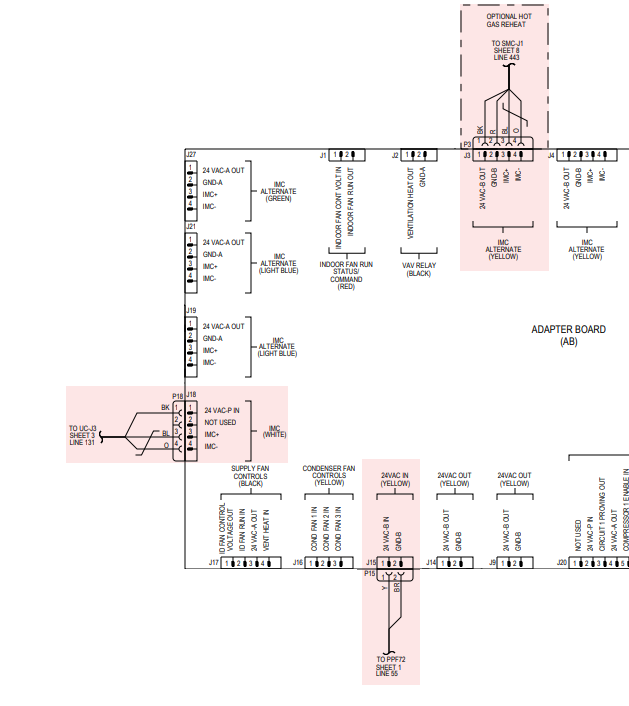

• If SMC-P1 does not have VAC or VDC, go to the adapter board above the Symbio Unit Controller Module. Verify that AB-J3 has 24VAC between Red and Black and has 3.2-3.9VDC between Blue and Orange.
• If AB-J3 is not receiving voltage, verify VAC from AB-J15 (Yellow & Brown) and VDC from AB-J18 (Blue & Orange).

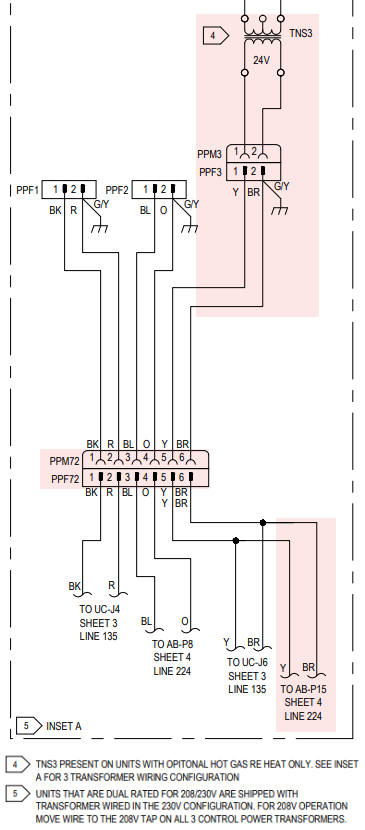

• If AB-J15 (Yellow & Brown) is not receiving VAC verify PPF72/PPM72 and PPF3/PPM3

• If AB-J18 (Blue & Orange) is not receiving VDC, verify UC-P3.

Does the Factory-Installed module have the address plug?

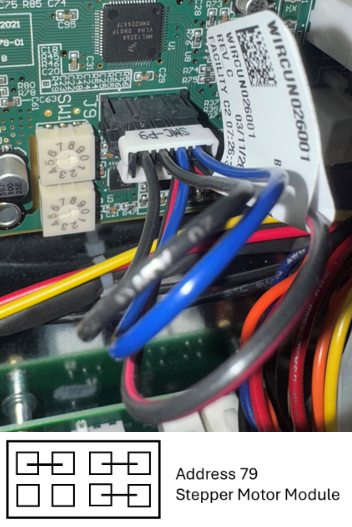

• The Stepper Motor Controller is factory-installed and includes an address plug pre-installed on J9. The factory plug is already configured for address 79.
• The rotary dials should be set to 00.
• If the Stepper Motor Controller says "Not Communicating" on the mobile phone app under Tools > Service, try the steps below.
• If the address plug is securely connected and you have verified the address on the plug, remove the plug and set the rotary dials to 79 (SW1 to 7 and SW2 to 9).
• Cycle power to the unit or reset the IMC link through the mobile phone app.
• Go to Tools > Service > scroll down to IMC LINK RESET.

Is the UC module configured?

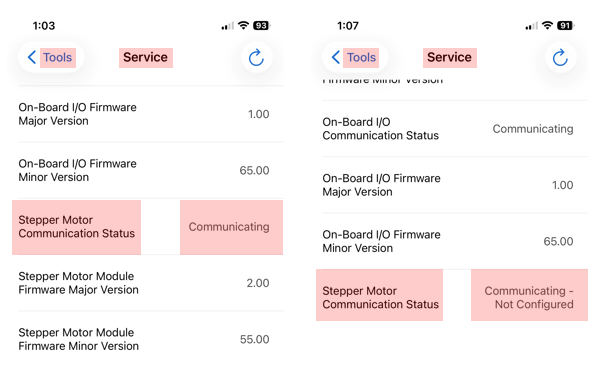

• To verify the communication status, go to Tools > Service in your mobile phone app.
• When it says Communicating, there should be no active alarms for the Stepper Motor Controller.
• When it says 'Communicating - Not Configured,' it means the Stepper Motor Controller is communicating, but there is no configuration associated with it. This will show active alarms.
• You must configure the SMC under Settings > View Configurations> Edit.

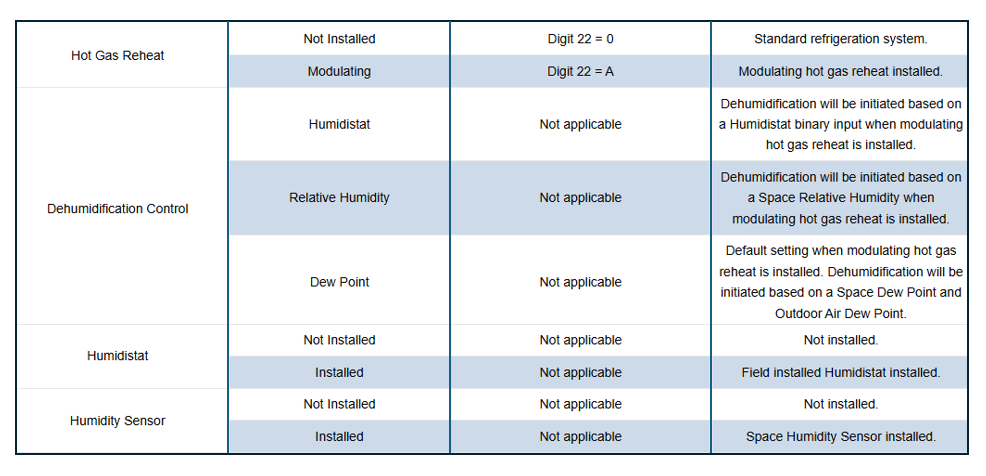

Configurations

Alarms

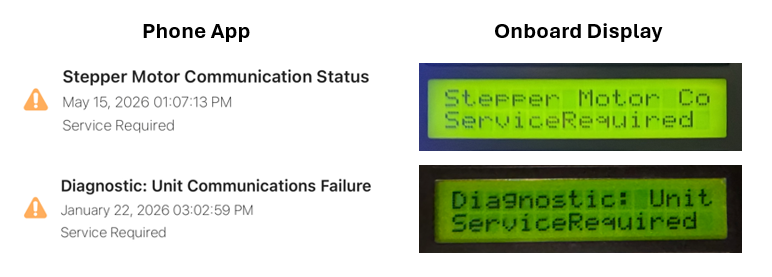

• Diagnostic: Unit Communication Failure
• Stepper Motor Communication Status
