Modbus Device Service:

Symbio 700 provides the ability to apply a Modbus address to an end-device which is useful for field replacement of Modbus-controlled end devices. The service is available via the onboard display Service menu, Symbio 700 Service and Installation app and Tracer TU.

Procedure for the local user on-board interface:

1. Power Down the Equipment
   • Remove power from the equipment.
2. Connect Symbio 700 to Replacement End Device

   • Connect Symbio 700 to the replacement end device which requires a Modbus address change. All other Modbus devices required to be disconnected from the Modbus communication bus.

     Other modbus devices that will need to be removed could include:

     • Supply Fan 1
     • Ignition Board
     • R454B Leak Detection Sensor
   • Technician must trip the Symbio 700 Equipment Shutdown input (J18) prior to applying power.
3. Power Up the Equipment
   • After checking connections, apply power to the equipment. The replacement end device should be powered and communicating with the Symbio 700.
4. Symbio 700 onboard display, Service Menu
   • Using the Symbio 700 local user on-board interface, navigate to the Service Menu and then to Modbus Device Service screen. Press ENTER to begin the Modbus address change process.

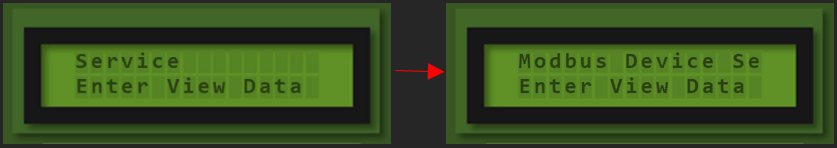

   • Figure X1. Modbus Device Service menu.

   •

5. Select the Replacement Device
   • The Select Device screen will display a list of discovered Modbus devices communicating the Symbio 700 at power up.
   • Example, when replacing Precedent supply fan 2 drive, the replacement drive is programmed as “SupplyFanERM1 (3)”.

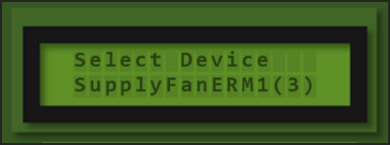

   • Figure X2. Selecting Device to be re-addressed.

   •

   • If no Modbus devices are detected, “No Communicating Devices” is displayed. Restart the process at step 1 and check that the end device power and Modbus link connections.
6. Assign new Modbus Address
   • The screen will prompt you to Select New Device. Use the Up and Down buttons to select the device with the desired Modbus address and press Enter.
   • Only valid addresses are allowed to be selected.
   • When replacing Precedent supply fan 2 drive, at this step, select “SupplyFanERM2 (4)”. Press Enter to apply the setting to the replacement device.

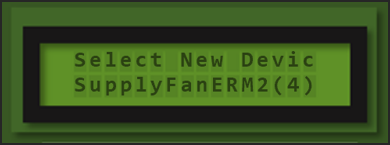

   • Figure X3. Selecting New Device.

   •

7. On board display confirmation Messages
   • “Updated” is displayed if the device was successfully addressed.
   • “Unsupported Target Device” is displayed if the device is unsupported.
   • “Not Changed” is displayed if selected device address is the same the address being written.
8. Cycle power to the Symbio 700
9. Verify end-device communication status
   • Navigate to Service menu, Modbus Devices, Supply Fan 2 Communication Status
   • Verify communication status is “Communicating”, if not communicating repeat steps 1-9.

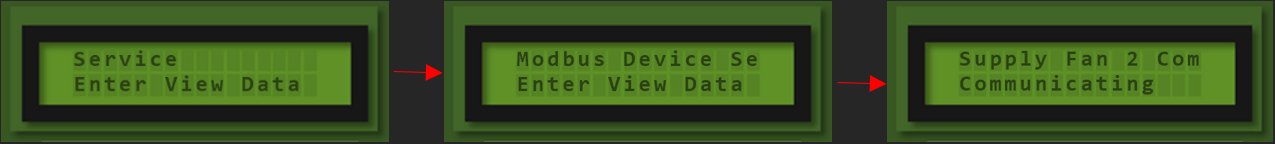

   • Figure X4. Verifying communication status.

   •

10. Power Down the Equipment
    • Remove power from the equipment.
    • Reconnect all previously disconnected Modbus devices from Step 2.
    • Return Symbio 700 Equipment Shutdown input (J18) to a normal state.
11. Verify communication status of all Modbus end-devices
    • Navigate to Service menu, Modbus Devices
    • Verify communication status is “Communicating” for applicable devices, if not communicating check Modbus connections.
      1. Supply Fan 1 Communication Status
      2. Supply Fan 2 Communication Status
      3. Gas Heat Ignition Module 1 Communication Status
      4. Compressor 1 VFD Communication Status
      5. Refrigerant Leak Sensor Communication Status Sensor A
