Issue:
Discharge Temperature Sensor
Resolution:
- The discharge temperature exceeded the trip value of 275F

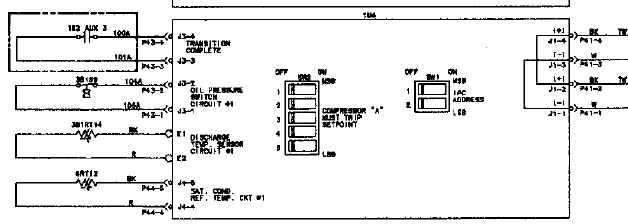

- The discharge temperature sensor or wiring is open
- NOTE: On units build in 1992 and later (prior to design sequence C0), the discharge temperature sensor will not be present

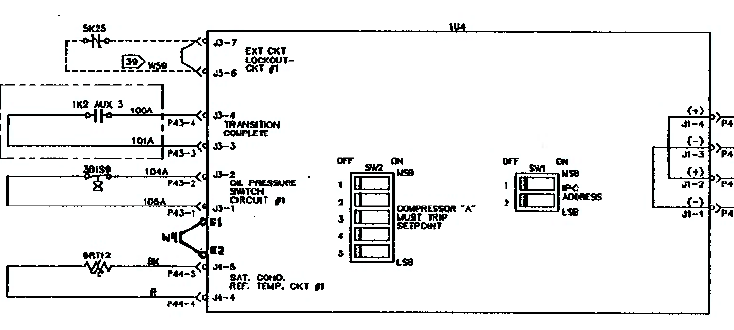

- This sensor is no longer available and the input E1 & E2 on the compressor module must be jumpered
- If the diagnostic continues with the jumper properly installed the compressor module must be replaced
Notes:
Changes:
Other Question/Problem/Cause Statements:
-
1C2 Discharge Temp Compressor A
1C3 Discharge Temp Compressor B
1C4 Discharge Temp Compressor C
1C5 Discharge Temp Compressor D
Discharge temp sensor failure
- Discharge Temperature Sensor
Facts:
- RTAA 130-400 Ton (Pueblo)
- RTAA 130-400
- Air-Cooled Chiller (Pueblo) (RTAA 130-400 Ton)
Document Identifier: DOC-74836
