Issue:
Weights & dimensions for replacement Helirotor compressors
Resolution:
The following data is an estimate of compressor weights that should be used when servicing Helirotor compressor units. These weight and dimensions are for the bare and dry compressor. No packaging materials are included even thought they are shown in the photos.
Table 1. GP Compressors CHHN
|
Size |
Weight |
Length |
Width |
Height |
|
35 ton |
754 (342) |
35 (890) |
13 (330) |
14 (360) |
|
40 ton |
796 (361) |
35 (890) |
13 (330) |
14 (360) |
|
50 ton |
796 (361) |
38 (970) |
14 (360) |
15 (380) |
|
60 ton |
796 (361) |
38 (970) |
14 (360) |
15 (380) |

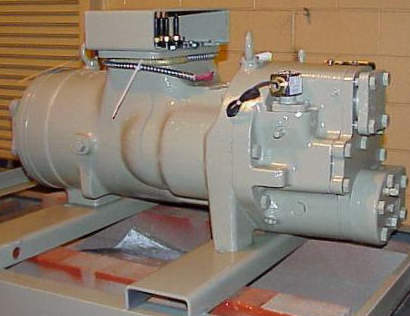

Figure 1. GP Compressor model CHHN 35 to 60 tons
Table 2. Intermediate Compressors CHHB
|
Size |
Weight |
Length |
Width |
Height |
|
70 ton |
950 (430) |
42 (1070) |
18 (460) |
16 (410) |
|
85 ton |
1091 (500) |
45 (1140) |
18 (460) |
16 (410) |
| <.P>100 ton |
1172 (530) |
45 (1140) |
18 (460) |
16 (410) |

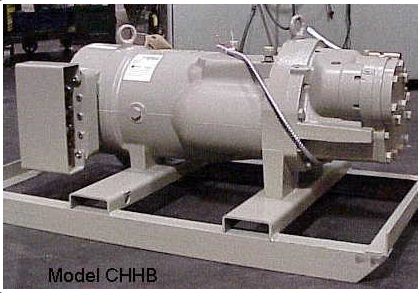

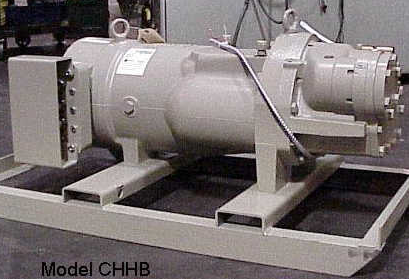

Figure 2. Intermediate Compressor model CHHB 70 to 100 tons
Table 3. Series R Compressors CHHA
|
Size |
Weight |
Length |
Width |
Height |
|
120 - 150 ton |
2530 (1150) |
83 (2110) |
24.5 (620) |
27 (690) |
|
170 - 215 ton |
2950 (1340) |
90 (2290) |
25.5 (650) |
30 (760) |
|
255 - 300 ton |
4200 (1900) |
90 (2290) |
30.5 (775) |
34 (860) |
|
380 - 450 ton |
6300 (2860) |
99 (2520) |
34 (860) |
39 (990) |

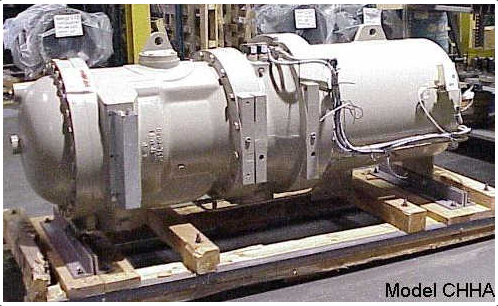

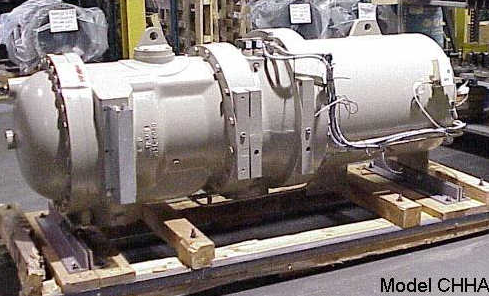

Figure 3. Series R Compressor model CHHA 120 to 450 tons
.
Notes:
Changes:
Other Question/Problem/Cause Statements:
- Weights & dimensions for replacement Helirotor compressors?
- What does a screw compressor weigh?
- What are the dimensions of a screw compressor?
- What is the shipping weight of a screw compressor?
Facts:
- Compressors, Rotary
Document Identifier: DOC-86299
