Issue:
Attaching the lifting chains/cables
Resolution:
RTAC, RTAA, RTCA Chillers:

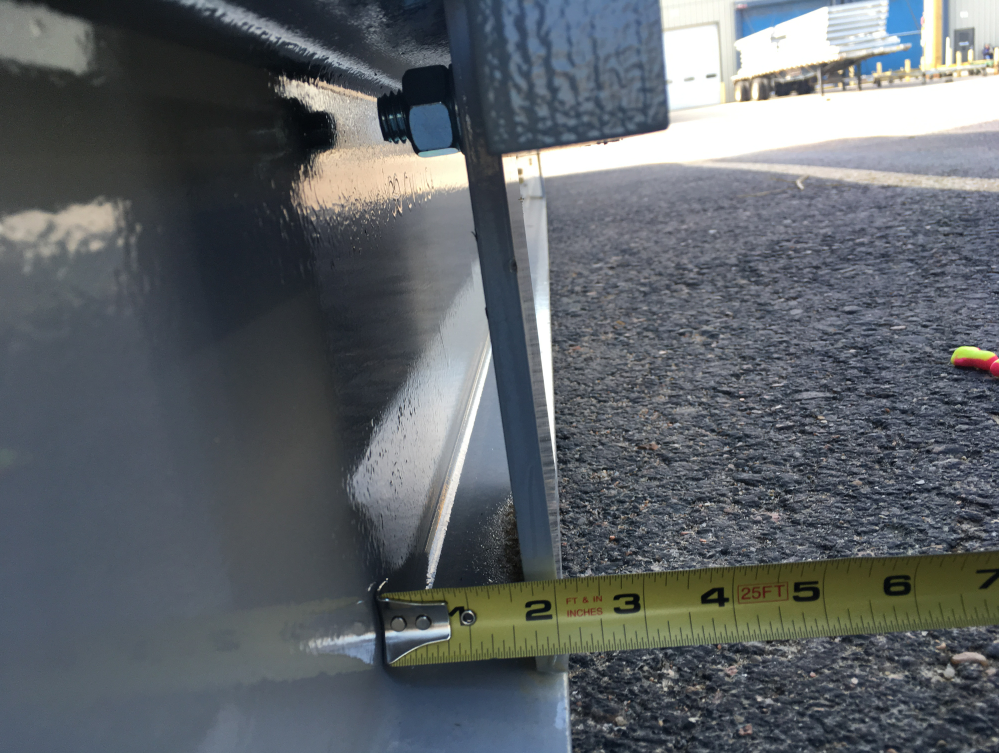

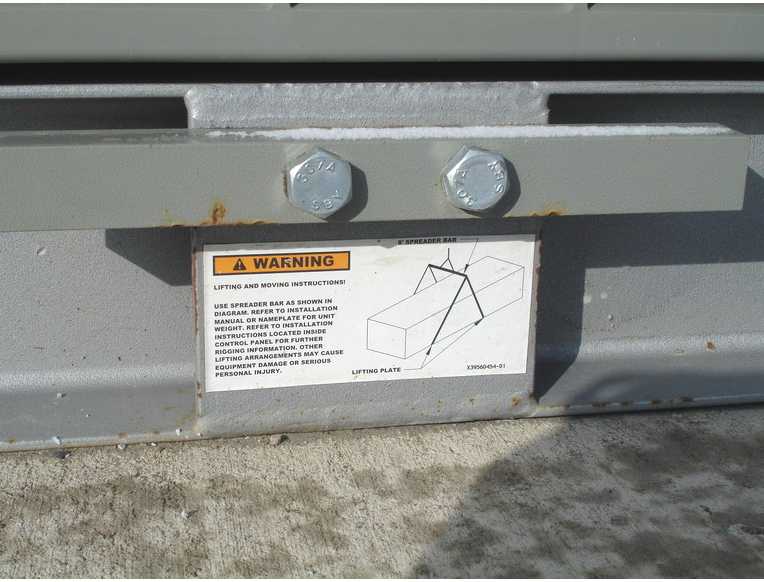

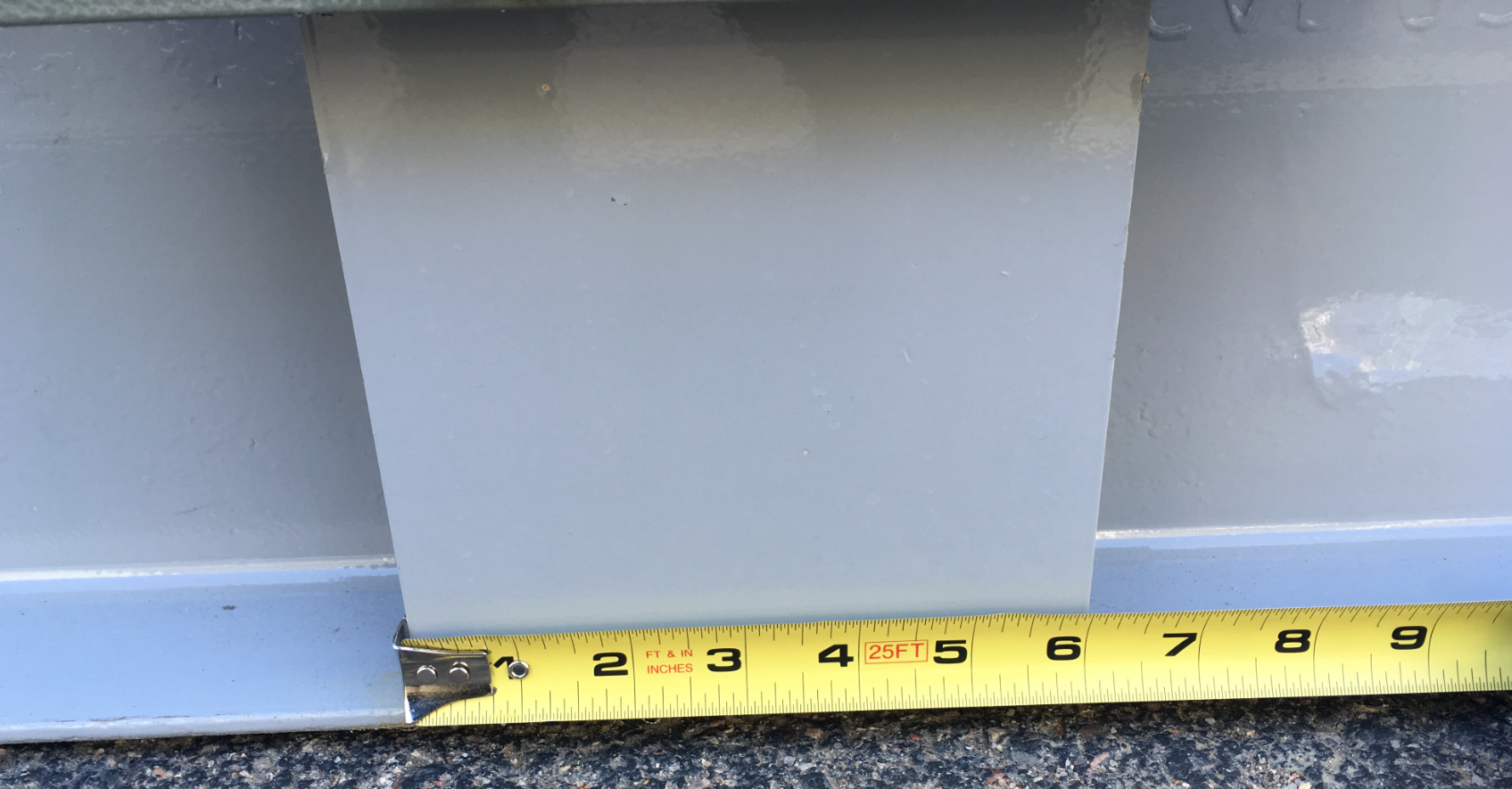

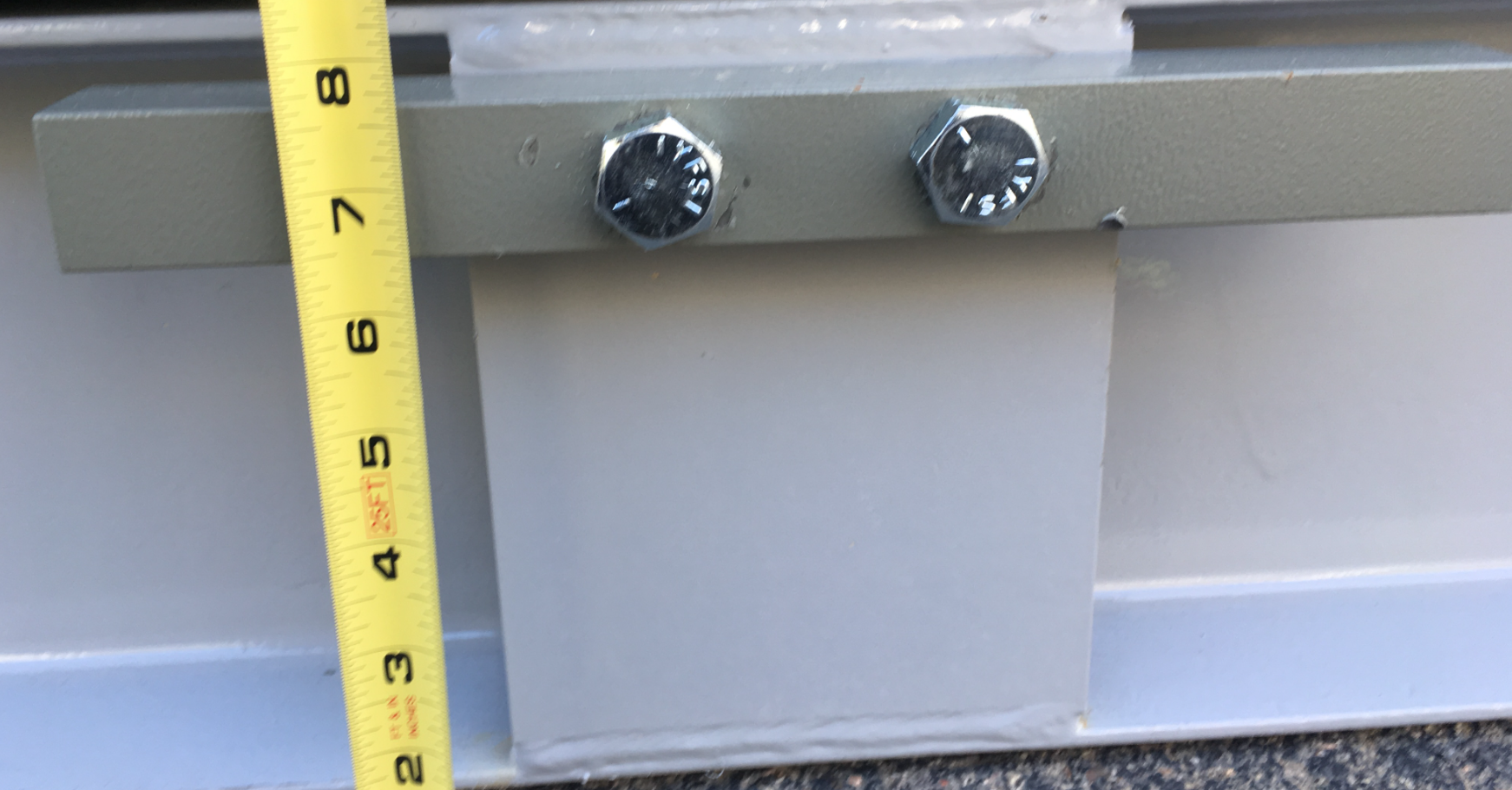

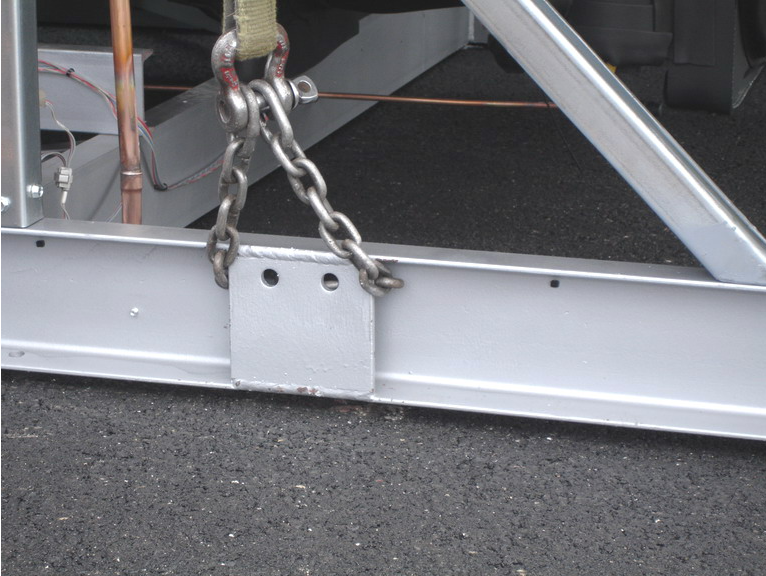

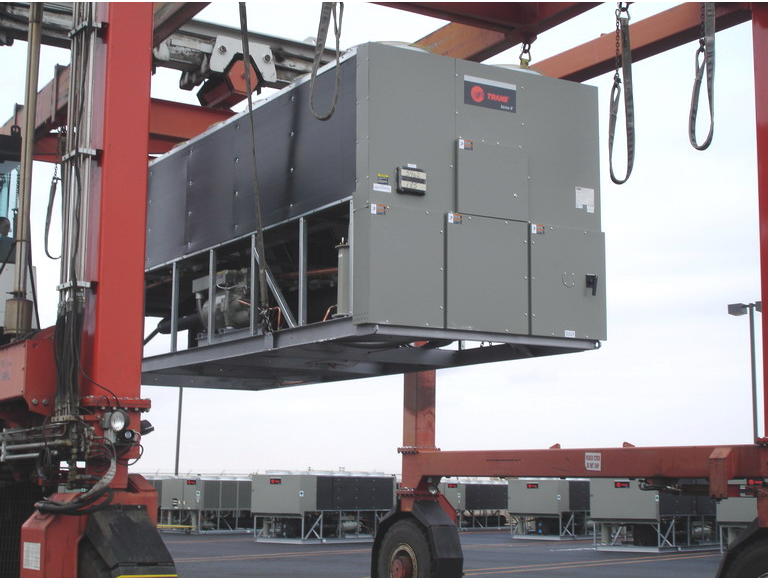

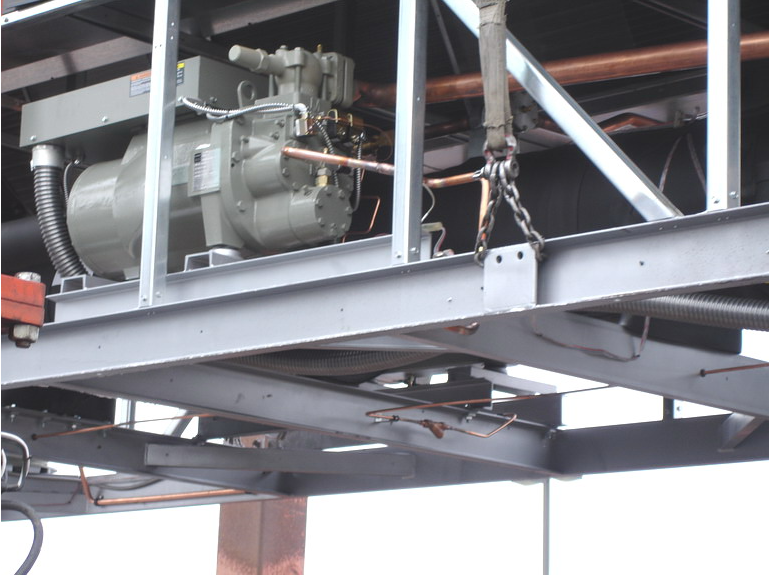

See attached photos for proper rigging.
We do not provide the types of clevises, chains, or types of slings to be used for liability concerns.
It is the responsibility of the installing contractor/rigger to provide the proper devices capable of supporting the entire weight of the chiller.
We provide shipping weights and center of gravity in the IOM.
Notes:
Changes:
Other Question/Problem/Cause Statements:
- What is the correct rigging?
- How do I connect the chains to the chiller?
- How do I lift the unit?
- Chiller Rigging?
Facts:
- RTAC
- RTAA
- Air-Cooled Condenser (RTCA)
Original HUB Document: DOC-81088
