Chiller Fall Restraint Information
CGAM fall restraint slots incorporated in the fan deck design from Design Sequence A0 (Jun 2009)

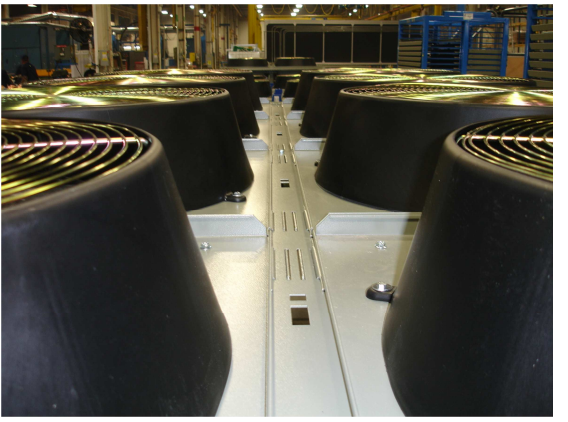

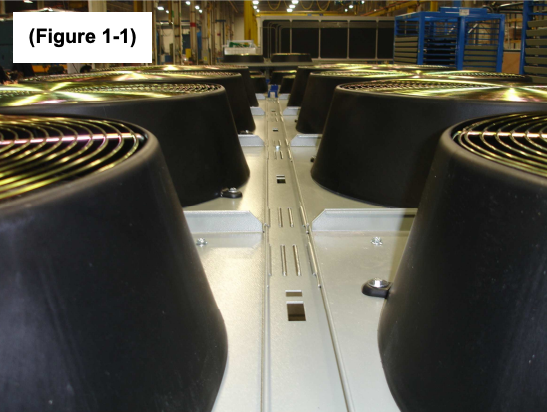

Figure 1-1 shows the restraint slots on a CGAM fan deck.
(Figure 1-1)
- Please see the Travel Restraint Slots attachment below.

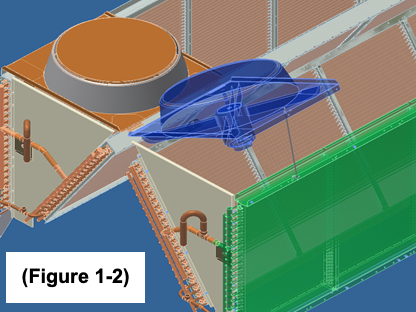

Figure 1-2 illustrates the design intent of CGAM prop rods. Keep in mind that CGAM chiller also include fan cassettes that can be propped up and
held in place with a prop rod when servicing fan motors.
(Figure 1-2)

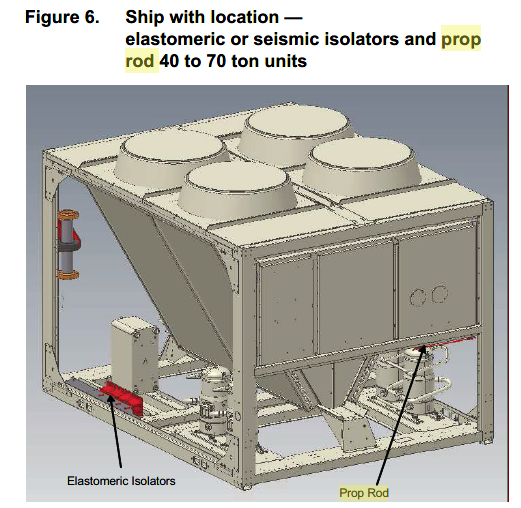

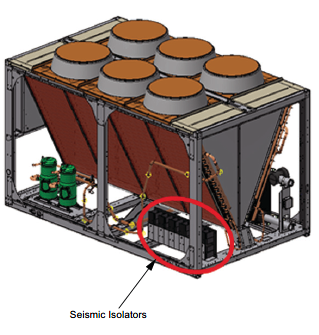

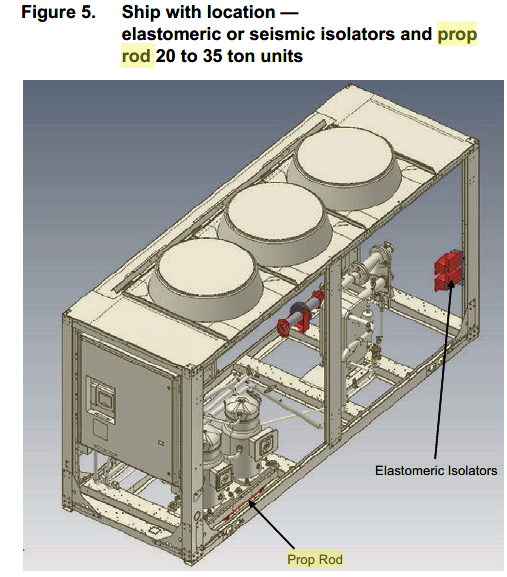

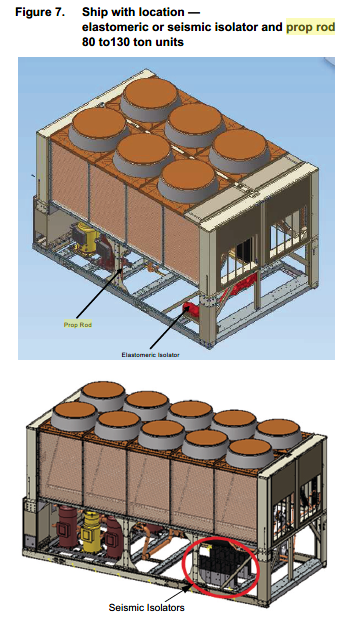

- See the Prop Rod and Isolator Location attachment below
RTAC fall restraint slots incorporated in the fan deck design from Design Sequence V0 (Feb 2011)

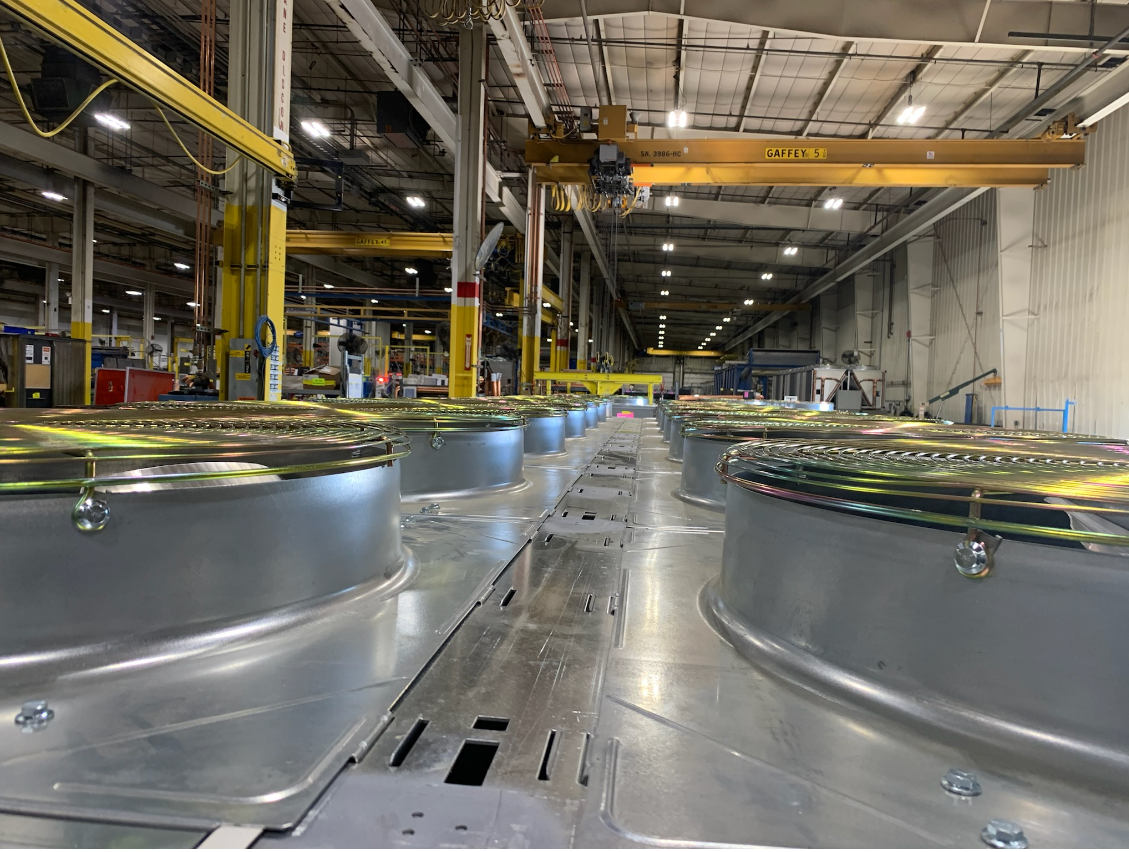

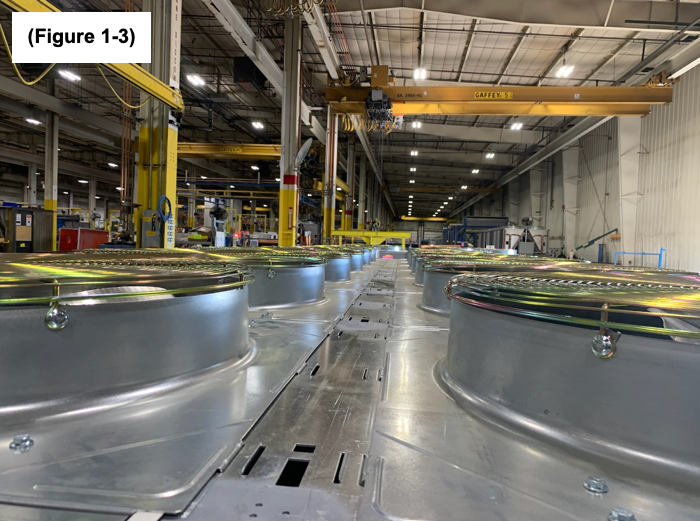

Figure 1-3 illustrates the fall restraint slots on a RTAC fan deck
(Figure 1-3)
Due to the design, it is recommended to keep off of RTAE, RTAF, ACR, and ACS chiller fan decks.
- The following link is for the fan lifting device available from Specialty Tools
Specialty Tools
Original HUB Document: DOC-194733
WARNING:
Information in this article is intended for use by individuals possessing adequate backgrounds of electrical and mechanical experience and who comply with all federal, state, and local laws, rules, orders, or regulations related to the installation, service, or repair of a heating or central air conditioning product. Any attempt to install, service, or repair a heating or central air conditioning product may result in personal injury and/or property damage. The manufacturer or seller cannot be responsible for the interpretation of the information contained herein, nor can it assume any liability in connection with its use.
