- The refrigerant charge for the RTAA 215 is 190 lbs of R-22 per circuit
- See attached Service Bulletin RTAA-SVB05A-EN
- The oil charge is 8 gallons per circuit of Trane OIL 15
- The RLA is 171 amps per compressor at 460 volts. RLA is 392 amps at 200 volts
- The CTs are -03 extension for a 460 volt chiller and -05 for a 200 volt chiller
- The overload settings for the compressors are 10101 / 21 for the 460 volt and 11110 / 30 for a 200 volt unit

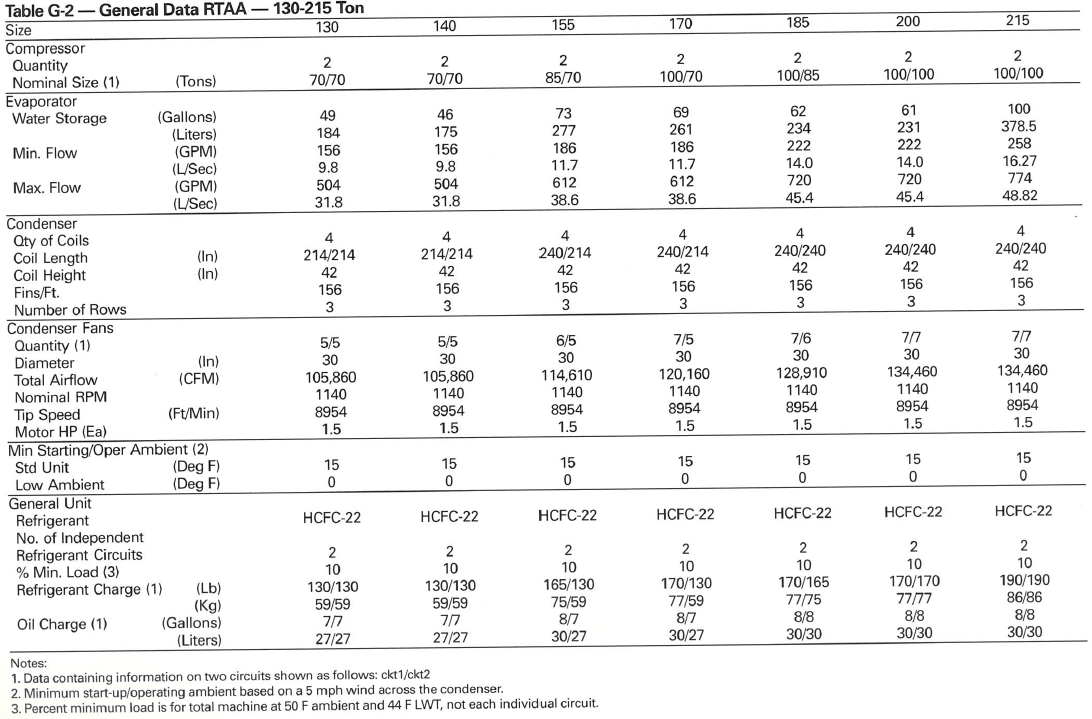

Table G-2 — General Data RTAA — 130-215 Ton
| Category | Subcategory | Units | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Size → | 130 | 140 | 155 | 170 | 185 | 200 | 215 | ||
| Compressor | Quantity | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Nominal Size (1) | (Tons) | 70/70 | 70/70 | 85/70 | 100/70 | 100/85 | 100/100 | 100/100 | |
| Evaporator | Water Storage | (Gallons) | 49 | 46 | 73 | 69 | 62 | 61 | 100 |
| Water Storage | (Liters) | 184 | 175 | 277 | 261 | 234 | 231 | 378.5 | |
| Min. Flow | (GPM) | 156 | 156 | 186 | 186 | 222 | 222 | 258 | |
| Min. Flow | (L/Sec) | 9.8 | 9.8 | 11.7 | 11.7 | 14.0 | 14.0 | 16.27 | |
| Max. Flow | (GPM) | 504 | 504 | 612 | 612 | 720 | 720 | 774 | |
| Max. Flow | (L/Sec) | 31.8 | 31.8 | 38.6 | 38.6 | 45.4 | 45.4 | 48.82 | |
| Condenser | Qty of Coils | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Coil Length | (In) | 214/214 | 214/214 | 240/214 | 240/214 | 240/240 | 240/240 | 240/240 | |
| Coil Height | (In) | 42 | 42 | 42 | 42 | 42 | 42 | 42 | |
| Fins/Ft. | 156 | 156 | 156 | 156 | 156 | 156 | 156 | ||
| Number of Rows | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| Condenser Fans | Quantity (1) | 5/5 | 5/5 | 6/5 | 7/5 | 7/6 | 7/7 | 7/7 | |
| Diameter | (In) | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Total Airflow | (CFM) | 105,860 | 105,860 | 114,610 | 120,160 | 128,910 | 134,460 | 134,460 | |
| Nominal RPM | 1140 | 1140 | 1140 | 1140 | 1140 | 1140 | 1140 | ||
| Tip Speed | (Ft/Min) | 8954 | 8954 | 8954 | 8954 | 8954 | 8954 | 8954 | |
| Motor HP (Ea) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Min Starting/Oper Ambient (2) | Std Unit | (Deg F) | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Low Ambient | (Deg F) | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| General Unit | Refrigerant | HCFC-22 | HCFC-22 | HCFC-22 | HCFC-22 | HCFC-22 | HCFC-22 | HCFC-22 | |
| No. of Independent | |||||||||
| Refrigerant Circuits | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| % Min. Load (3) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||
| Refrigerant Charge (1) | (Lb) | 130/130 | 130/130 | 165/130 | 170/130 | 170/165 | 170/170 | 190/190 | |
| Refrigerant Charge (1) | (Kg) | 59/59 | 59/59 | 75/59 | 77/59 | 77/75 | 77/77 | 86/86 | |
| Oil Charge (1) | (Gallons) | 7/7 | 7/7 | 8/7 | 8/7 | 8/8 | 8/8 | 8/8 | |
| Oil Charge (1) | (Liters) | 27/27 | 27/27 | 30/27 | 30/27 | 30/30 | 30/30 | 30/30 | |

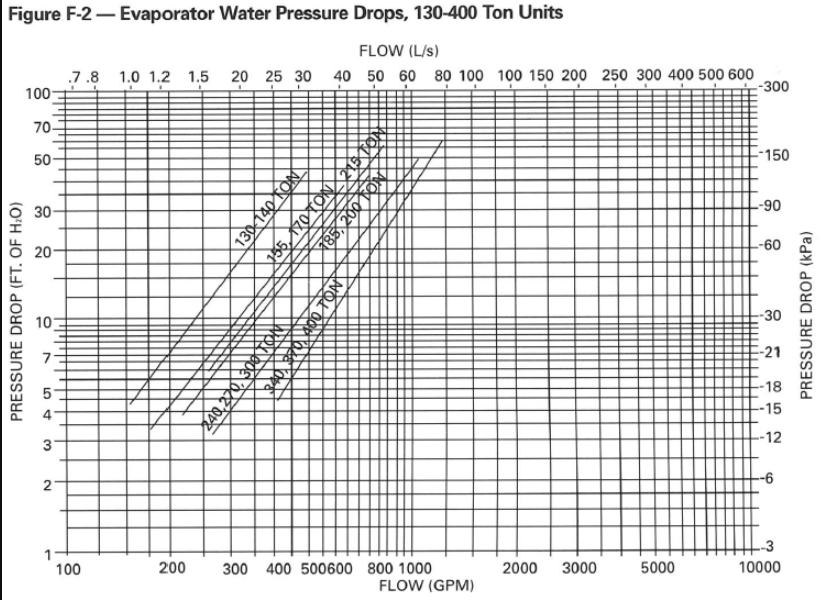

Figure F-2 —Evaporator Water Pressure Drops, 130-400 Ton Units
Additional details
Additional details
Other Question/Problem/Cause Statements
- What is the refrigerant charge for the RTAA 215 ton chiller?
- What is the oil charge for the RTAA 215 ton chiller?
- What is the current overload DIP switch settings for the RTAA 215 ton chiller?
- What is the RLA for the RTAA 215 ton chiller?
- What is the CT extension?
Facts
- This chiller size was not manufactured when RTAA-IOM-3 was published. This chiller size has two 100-ton compressors like the RTAA 200, but the current limits and the settings are slightly different. This chiller has a different sized evaporator as well (400 ton).
- Air-Cooled Chiller (Pueblo) (RTAA 130-400 Ton)
