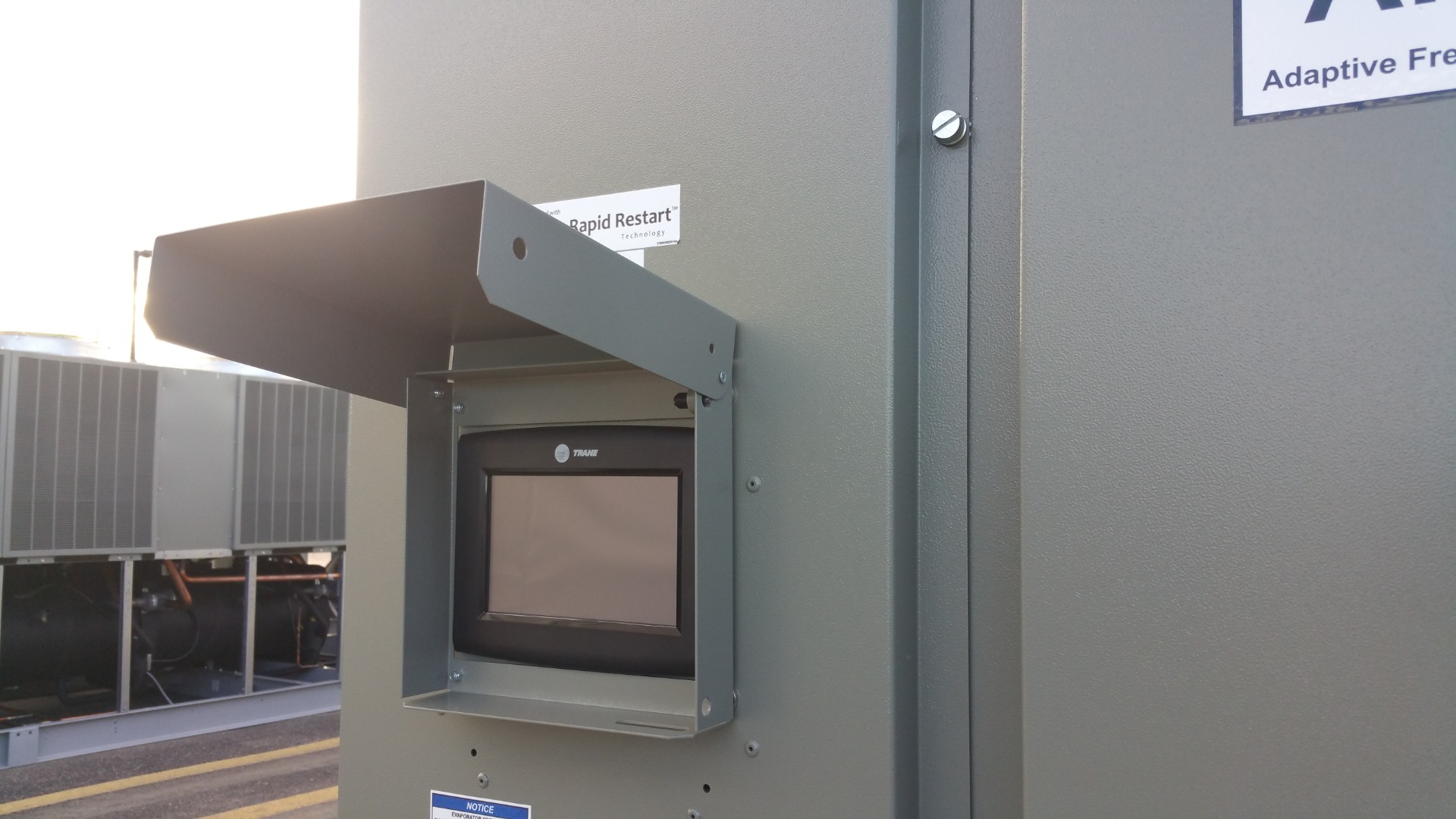

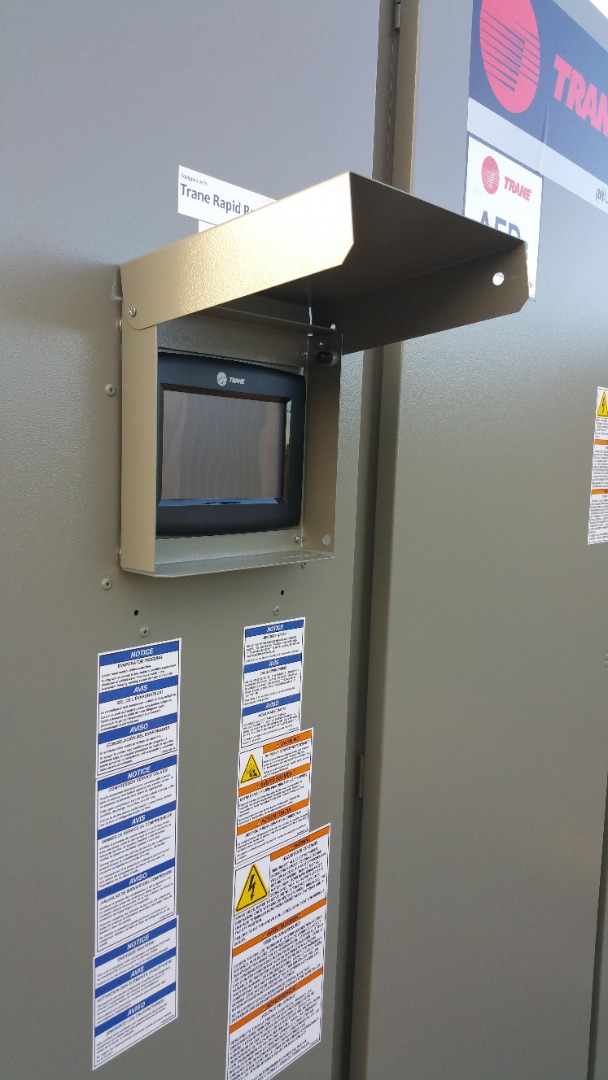

Starting in December of 2018, Pueblo began shipping all chillers standard with the TD7 enclosure. This enclosure protects the display from UV light and other outdoor elements.
Chillers in the field can be retrofit with the enclosure through Aftermarket or your local parts group.
Order Part Number: COV05084
- This enclosure is only applicable to chillers configured with an AdaptiView TD7 display.
-
This enclosure is NOT designed to fit on chillers with DynaView CH530 display.
- Click HERE for Dynaview Enclosure
-
The method to fasten the cover to the chiller control panel varies based on the chiller model as follows:
- ACSA - Magnetic
- ACXA - Magnetic
- RTAF - Magnetic
- ACRC - Fasteners
- CGAM - Fasteners
Notes:
Part Number: COV05084
Facts:
- TD7
- RTAE
- RTAF
- ACR
- ACS
- CGAM
- ASX
Combined the following HUB Documents: DOC-180527 and DOC-164381
