Issue:
Is an external flow switch required?
Resolution:

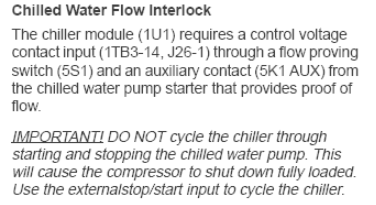

Yes, a flow switch/flow proving device and an auxiliary contact from the chilled water pump starter are required for proof of flow. Refer to RTHC-IOM-1C, page 3-10 for further information.
Notes:
NOTE: The IOM gives an incorrect terminal designator for the flow switch. The terminal designator should be J26-2, NOT J26-1.
Changes:
Other Question/Problem/Cause Statements:
- Is an external flow switch required?
Facts:
- Water-Cooled Chiller (Pueblo) (RTHC)
Document Identifier: DOC-78454
