Discussion, rules, and graphical representation of Extended Unloading and Minimum Capacity Timer.

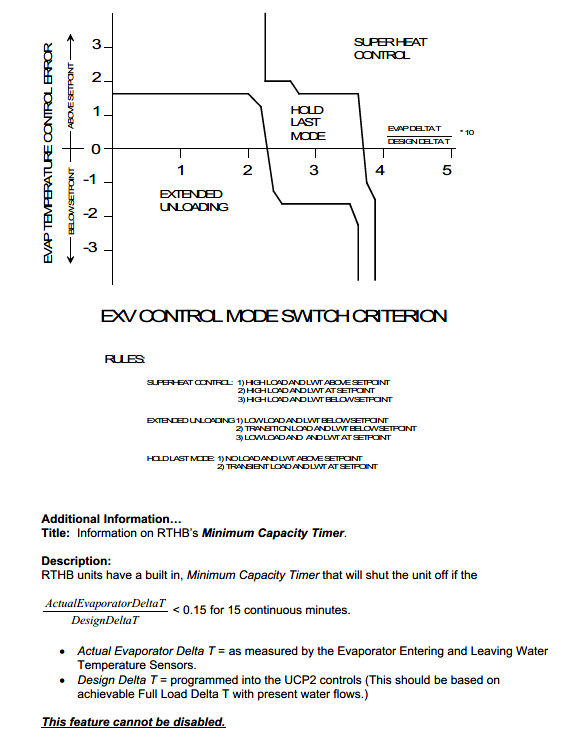

EXV CONTROL MODE SWITCH CRITERION

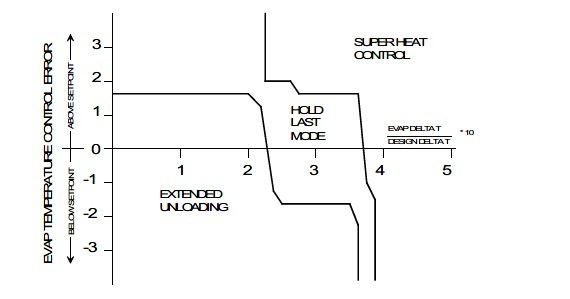

(The image displays a graph showing the relationship between "EVAP TEMPERATURE CONTROL ERROR" and different control modes: SUPER HEAT CONTROL, HOLD LAST MODE, and EXTENDED UNLOADING.)
RULES:
SUPER-HEAT CONTROL:
HIGH LOAD AND LWT ABOVE SETPOINT
HIGH LOAD AND LWT AT SETPOINT
HIGH LOAD AND LWT BELOW SETPOINT
EXTENDED UNLOADING:
LOW LOAD AND LWT BELOW SETPOINT
TRANSITION LOAD AND LWT BELOW SETPOINT
LOW LOAD AND LWT AT SETPOINT
HOLD LAST MODE:
NO LOAD AND LWT ABOVE SETPOINT
TRANSIENT LOAD AND LWT AT SETPOINT
Additional Information...
Title: Information on RTHB's Minimum Capacity Timer.
Description: RTHB units have a built-in, Minimum Capacity Timer that will shut the unit off if the:
ActualEvaporatorDeltaT / DesignDeltaT < 0.15 for 15 continuous minutes.
Actual Evaporator Delta T = as measured by the Evaporator Entering and Leaving Water Temperature Sensors.
Design Delta T = programmed into the UCP2 controls (This should be based on achievable Full Load Delta T with present water flows.)
This feature cannot be disabled.
