Issue:
EXV Electric Drive Diagnostics
Resolution:
RTAA/UA/WA Packaged Chillers:
- If you experience EXV Drive Failure Diagnostics on "packaged" units, follow the steps in RTAA-SB-5 (130-400) or RLC-SVD03A-EN (70-125)
RTAA Remote Evaporators
- These chillers have certain requirements for the wires between the control panel and the expansion valve terminal block
- See the appropriate IOM for specifications
- Wires must be at least 16 ga
- Wire that is too small will result in EXV drive failure diagnostics
- Try taking the wires from one circuit and "stacking" them on the other to reduce impedance
- If the diagnostics stop, or continue to be intermittent, you have found your problem and should replace wires between the EXV and control panel
New Style SEHI EXV & Module:
- The SEO style EXV has been replaced with SEHI style valves
- The two are not compatible with each other and require all EXV valves and EXV Module(s) to be replaced

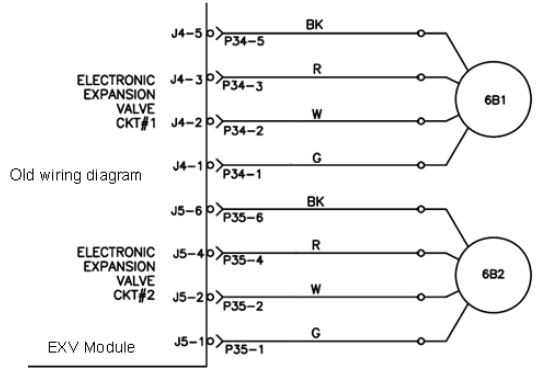

- The original valve was a three winding valve, while the SEHI valve has two windings (Red-Green & White-Black) which should be 70-75 ohms

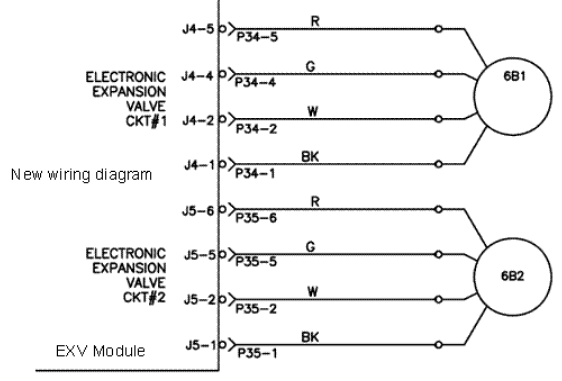

- The wire connections of the new valve to the new module are different. Below are the correct wire connections:
Notes:
- EXV Module X13651064 must be revision -040 (Rev D) or newer to avoid intermittent operational issues.
- Current module revision = H
- Minimum software revision 6200-0326-07
- Latest revision -08
- There is no longer an issue with Neodymium motors provided minimum module revision is present as shown above.
Resource Available:
-
Tech TV Video(s):
- N/A
-
Reference Literature: Electronic copies can be pulled from e-library at Trane Residential tranetechnologies.com
- IOM:
- Service Guide: RLC-SVD03A-EN and RTAA-SB-5
-
Other:
- PART-SVN118D-EN
- See Selection of EXV Module for more information
Other Question/Problem/Cause Statements:
- EXV Elec. Drive Ckt - Rfgt Ckt 1?
- EXV Elec. Drive Ckt - Rfgt Ckt 2?
- EXV Electrical Drive Fault?
Facts:
- Air-Cooled Chiller RTAA 70-125 Ton
- Air-Cooled Chiller RTAA 130-400 Ton
Document Identifier: DOC-80715
