One circuit is more noisy than the other circuit
- Verify the oil and refrigerant charges are correct.
- Refer to the RTAC Subcooling curves and verify correct refrigerant charge.
- To check the oil level properly, run the suspect circuit at minimum load for at least 45 minutes.
- This could be done by disconnecting the female step load and male load solenoid wires from their respective module.
- After running at minimum load, shut the circuit down and wait 30 minutes prior to checking the oil level.
- Refer to the table below for correct oil levels. NOTE: Too much oil (30-40% overcharge) may cause carryover problems, therefore, be careful not to overcharge with too much oil.

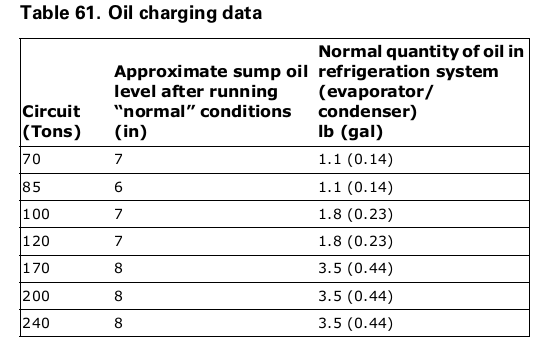

Table 61. Oil charging data
| Circuit (Tons) | Approximate sump oil level after running "normal" conditions (in) | Normal quantity of oil in refrigeration system (evaporator / condenser) lb (gal) |
|---|---|---|
| 70 | 7 | 1.1 (0.14) |
| 85 | 6 | 1.1 (0.14) |
| 100 | 7 | 1.8 (0.23) |
| 120 | 7 | 1.8 (0.23) |
| 170 | 8 | 3.5 (0.44) |
| 200 | 8 | 3.5 (0.44) |
| 240 | 8 | 3.5 (0.44) |
Additional details
Facts
- Air-Cooled Chiller (Pueblo) (RTAC)
