Overview:
These two units are not intended to be paired together. If (by accident) they end up together here is a suggestion to make it work.
Thermostat Connections:
Wire the thermostat to the Symbio 700 J21 except for R and C, wire thermostat R to Symbio Adapter Board J15-1, wire thermostat C to Symbio Adapter Board J15-2.
Remove and isolate wires from VFD terminals 12, 18, 27, 53 & 55 and from Fan Run Relay terminals 2 & 4.
Connections between Condenser and Air Handler
Thermostat Wire – 4 Wires w/o electric heat, 6 Wires with electric heat
- Symbio Condenser Adapter Board J15-1 to Air Handler LTB2-R.
- Symbio Condenser Adapter Board J15-2 to Air Handler LTB2-B1.
- Symbio Condenser Adapter Board J18-1 to Air Handler LTB2-G.
- Symbio Condenser Adapter Board J16-3 to Air Handler VFD terminal 61.
- Symbio Condenser UC J21-3 to Air Handler LTB2-W1
- Symbio Condenser UC J21-5 to Air Handler LTB2-W2
Shielded Twisted Pair – Ground shield at Air Handler
- Condenser Adapter Board J16-1 to VFD Terminal 68, J16-2 to VFD Terminal 69.
Symbio Configuration
- System Type: CVZT
- Indoor Fan Type: Multi Speed
VFD Re-programming (TR-150)
- 3-15 Reference 1 Source – [11] Local Bus Reference
- 5-10 Terminal 18 Digital Input – [0] No Operation
- 5-12 Terminal 27 Digital Input – [0] No Operation
- 8-01 Control Site – [2] Control Word Only
- 8-02 Control Source – [1] FC Port
- 8-03 Control Timeout Time – 15.0 sec
- 8-04 Control Timeout Function – [2] Stop
- 8-30 Protocol – [2] Modbus RTU
- 8-31 Address – 2
- 8-32 Baud Rate – [7] 115200 Baud
- 8-33 Parity / Stop Bits – [0] Even Parity, 1 Stop Bit
- 8-35 Minimum Response Delay - .005 sec 5ms
- 8-36 Maximum Response Delay – .01 sec 100ms

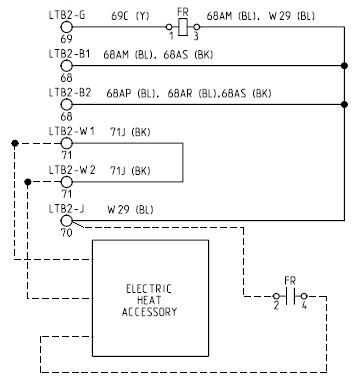

Repurpose Fan Run Relay to become a Fan Interlock for Electric Heat
- Move Brown electric heat control wire from LTB2-J to FR terminal 4.
- Add a field wire from LTB2-J to FR terminal 2.
If using the EDC (Evaporator Defrost Control) thermostat in the legacy air handler.
- Run a thermostat wire from LTB1-CD to UC J16-2.
- Using the Phone App go to Tools, Service, Customer Connection Polarity and change Demand Limit Input to Reversed.
- In Edit Configuration, set Demand Management to Demand Limit and in Settings, Refrigeration set Cooling Demand Limit Capacity Enable Setpoint to 0%
Note: You will always have the following alarms, but the unit will still operate (as a multi-speed)
- Indoor Options Module Communication Status
- Diagnostic: Unit Communications Failure
- Frostat Input
Optional
To get rid of the Indoor Options Module Communication Status, Unit Communications Failure and Frostat Alarms you could replace the RTOM with a BAYMODU001 Symbio Options Board kit.
The Symbio Options Board has two mounting holes that line up with the RTOM mounting holes but be aware, the Symbio Options Board is 5.5” x 6.75” make sure there is room in the control box.

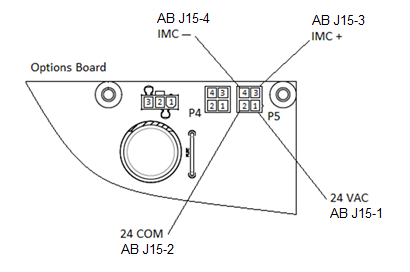

If you chose to go this route, the following additional wires would have to be added.
Thermostat Wire – 2 Wires
- Symbio Condenser Adapter Board J15-1 & 2, splice to Symbio Options Board P5-1 & 2.
Shielded Twisted Pair (ground shield in air handler)
- Symbio Condenser Adapter Board J15-3 & 4, splice to Symbio Options Board P5-3 & 4
Be sure to set the Symbio Options Board address to 75.
