Please be aware that this supporting article is a subset of a much larger article Outdoor CSAA/PSCA Installation. Refer to the main article for expanded IOM installation details for each ship with crate part.

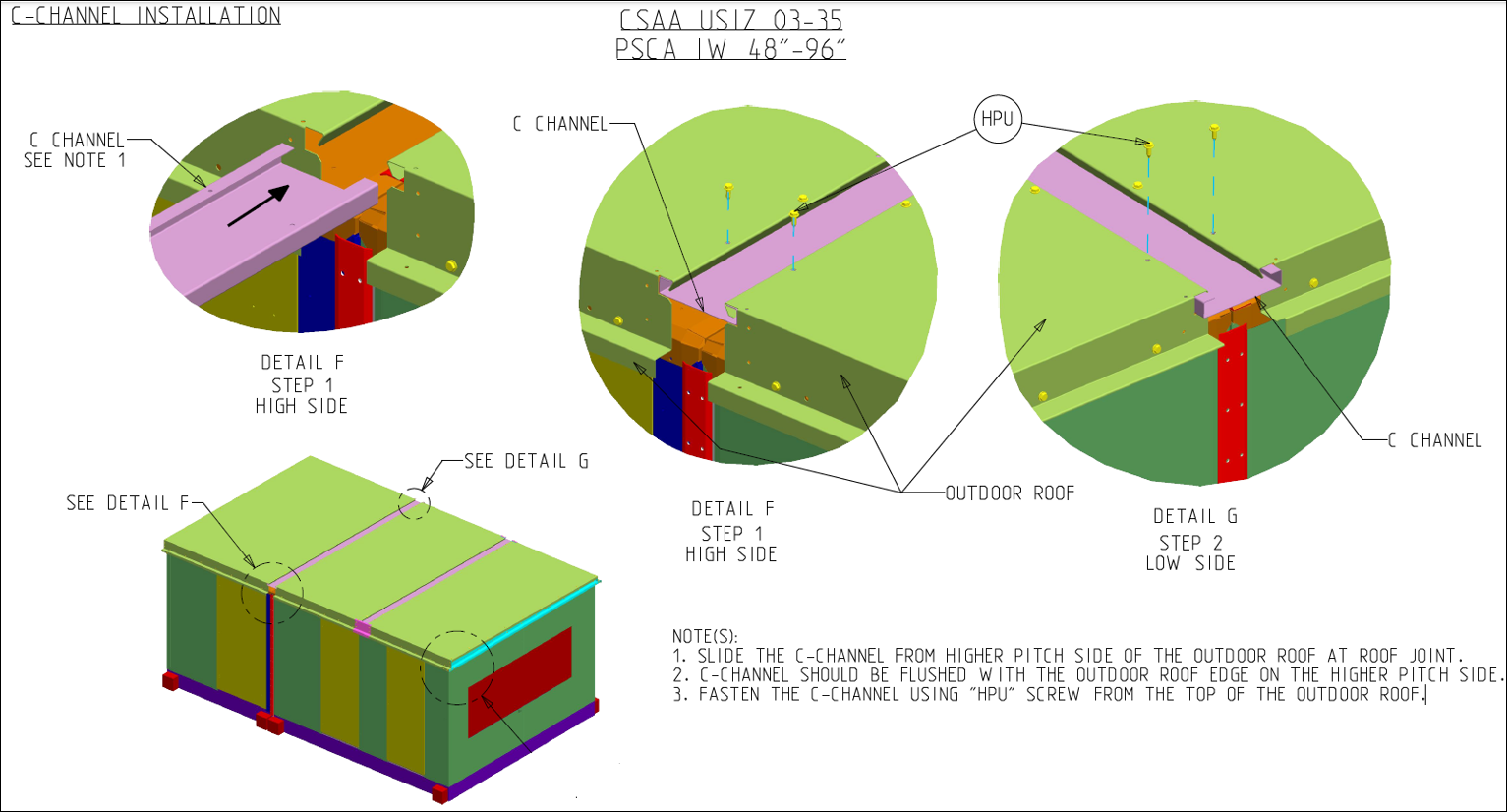

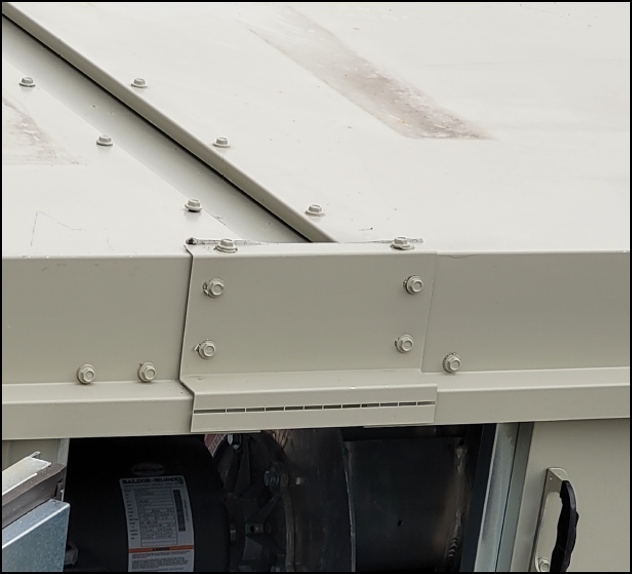

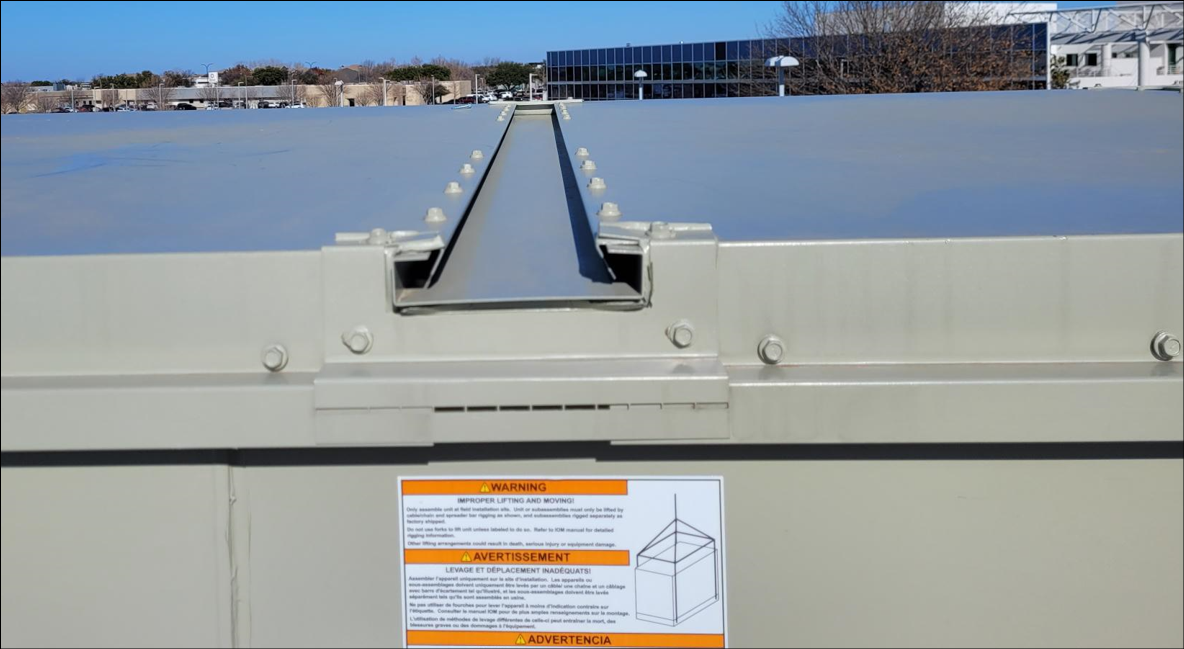

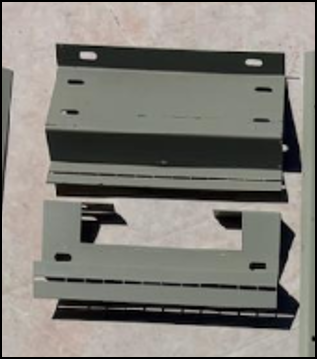

C-Channels are used to seal the outer roof panels on Outdoor CSAA & PSCA AHUs at field joints between shipping splits. CSAA unit size 3-35 & PSCA Internal Width (IW) 27.5-96 inch. Below are the details for C-Channel, Support Brackets, and Bracket Gaskets with helpful field photos.

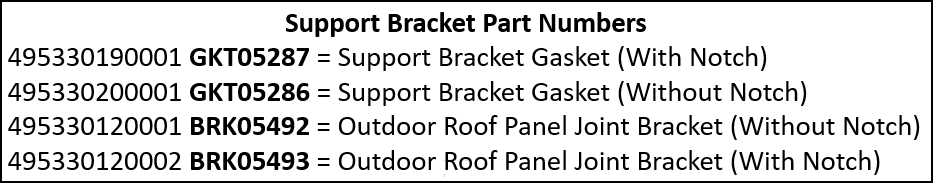

BALLOON = DESCRIPTION

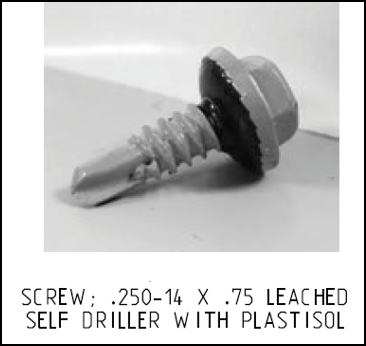

HPU = .250-14 X .75 LEACHED SELF DRILLER WITH PLASTISOL

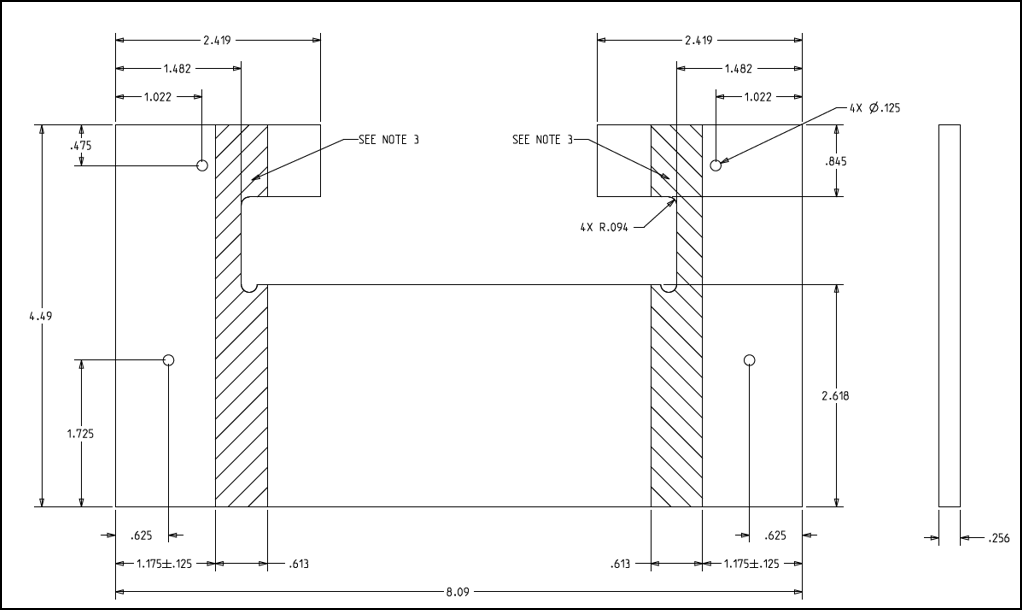

GASKET WITH NOTCH (LOW SIDE)

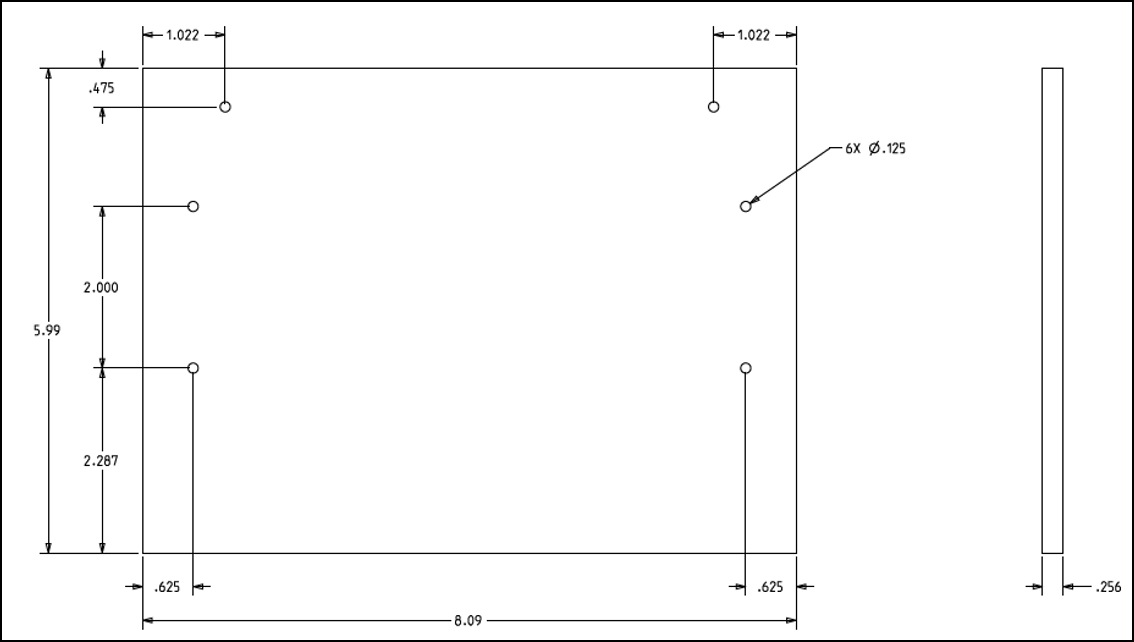

GASKET WITHOUT NOTCH (HIGH SIDE)

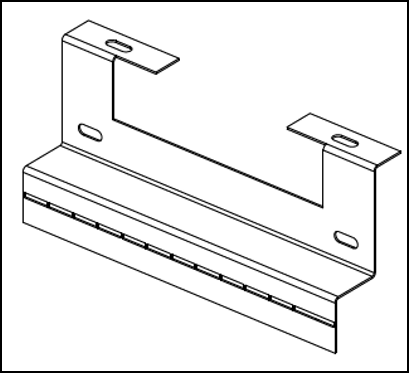

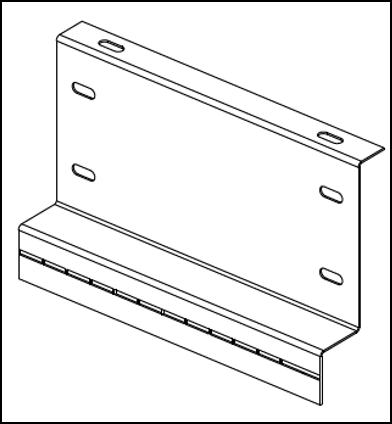

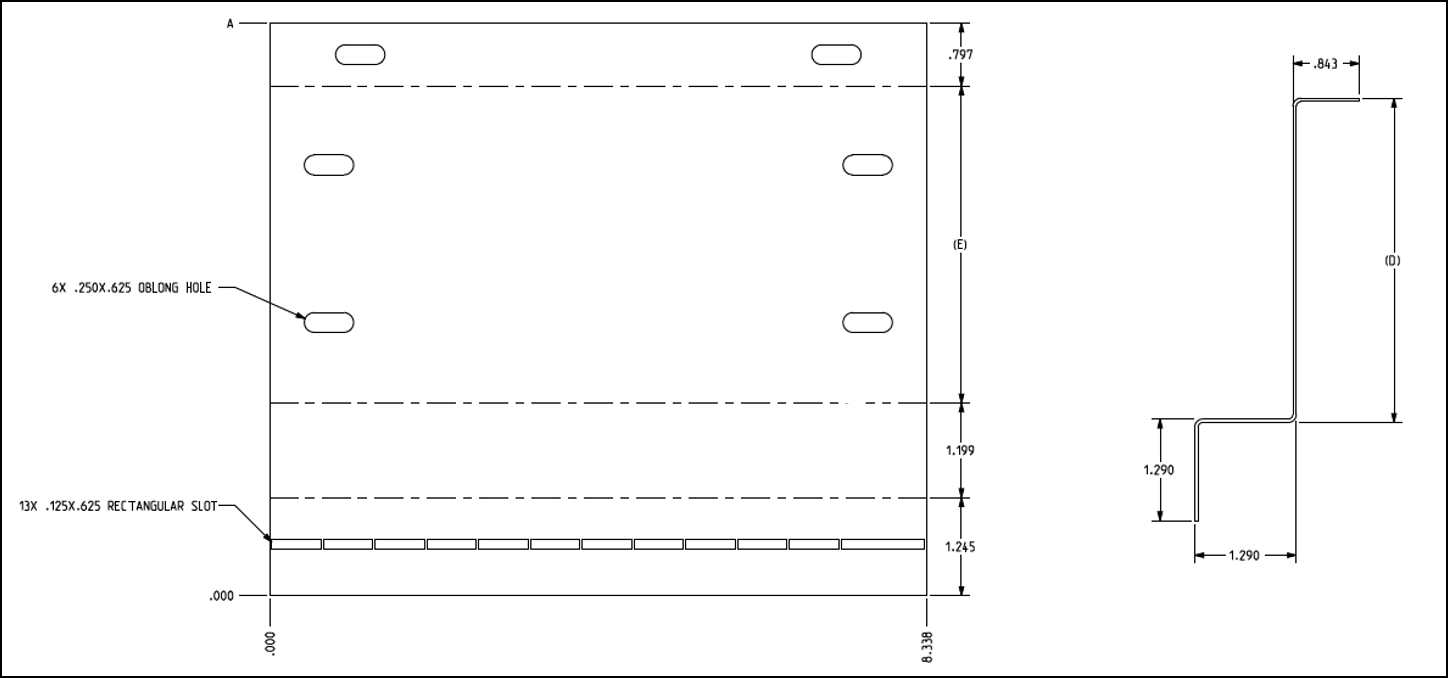

OUTDOOR ROOF PANEL JOINT BRACKET WITHOUT NOTCH (HIGH SIDE)

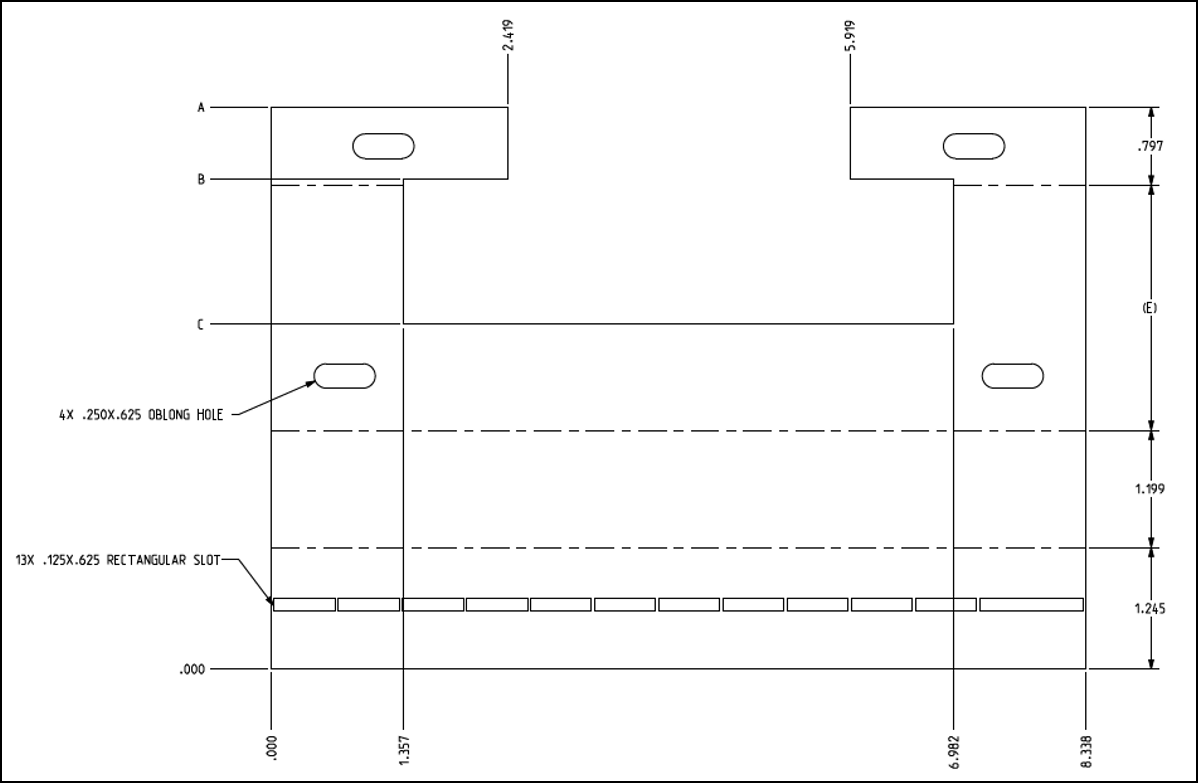

OUTOOR ROOF PANEL JOINT BRACKET WITH NOTCH (LOW SIDE)

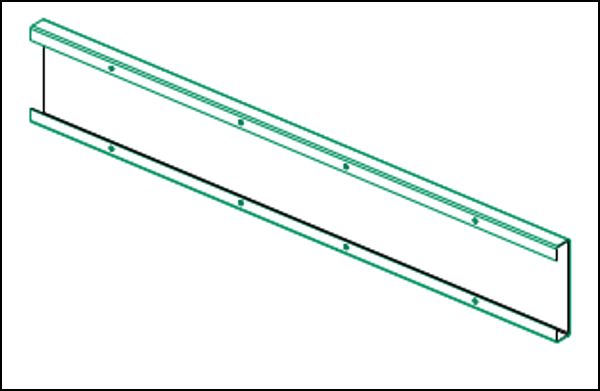

C-CHANNEL

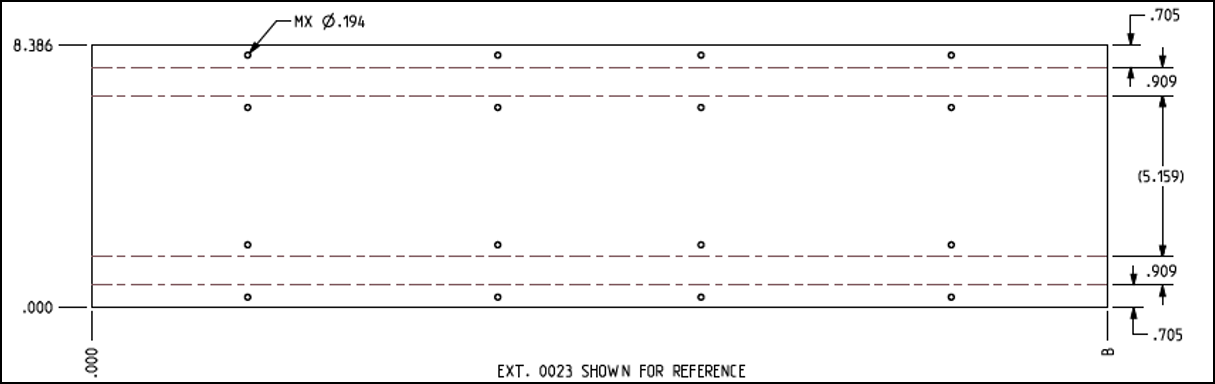

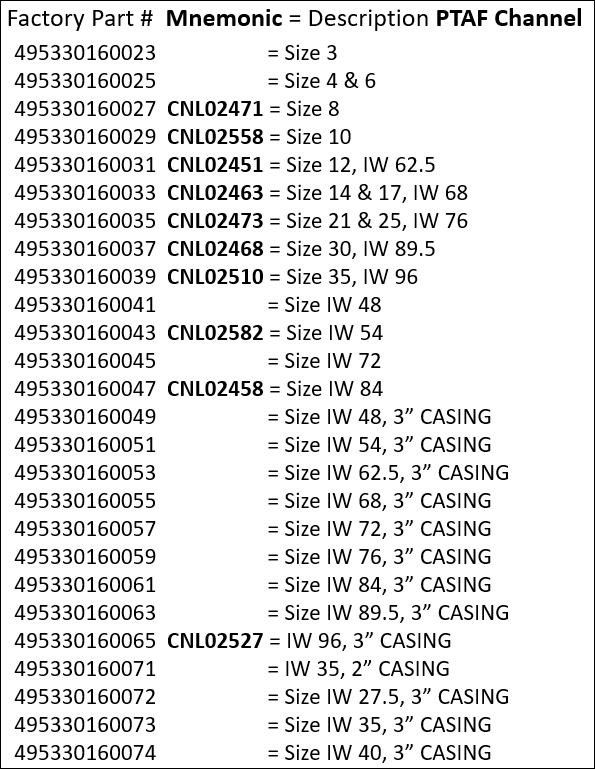

The customer may refer to the ship part, which is perpendicular to the airflow channel, using terms like C-Channel, roof trough, gutter channel, or roof covering. The C-Channel is vital for directing airflow and ensuring ventilation. Below are the specifications for the C-Channel. Note that while multiple sizes exist, many are rarely used and have not been setup or enriched. If you find a part not shown in the system, especially related to the factory part number in the list below, submit a parts identification request through a Trane Supply Customer Sales Associate (CSA) using the SalesForce OMNI system. For more help, refer to the Parts ID link for guidance on identifying components.
HIGH SIDE
LOW SIDE
