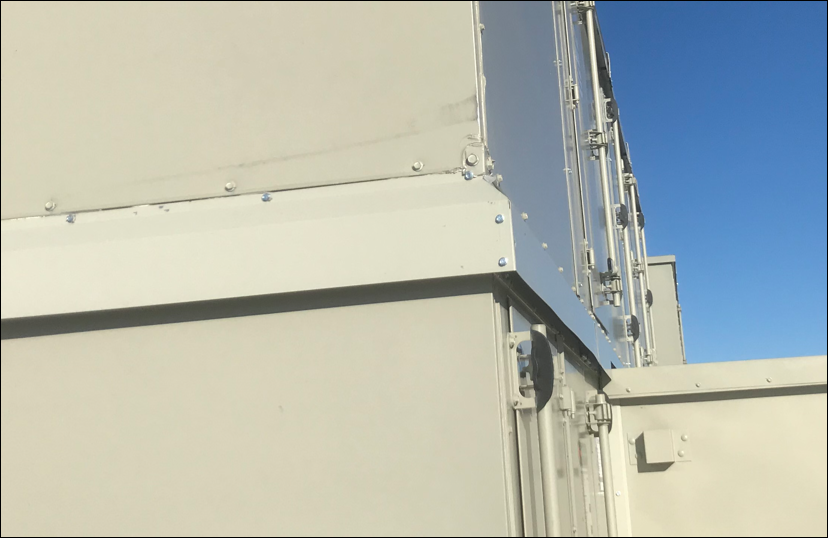

Stacked flashing is used to seal the joint between the lower and upper sections of an Outdoor Stacked unit, CSAA/PSCA Size 3-50. The seal is completed by adding the gray butyl tape provided in the ship with kit between the stacked flashing and the upper level base rail. Stacked Flashing (SFLASH_###) will be custom formulated parts numbers for every unit, so no 2 units in assembly, or even on a same sales order will be identical. The flashing pieces must be mounted in the location they were designed to cover.
If Stacked Flashing is missing, or damaged, follow the process outlined Expanded Short Ship.
Guard Cover

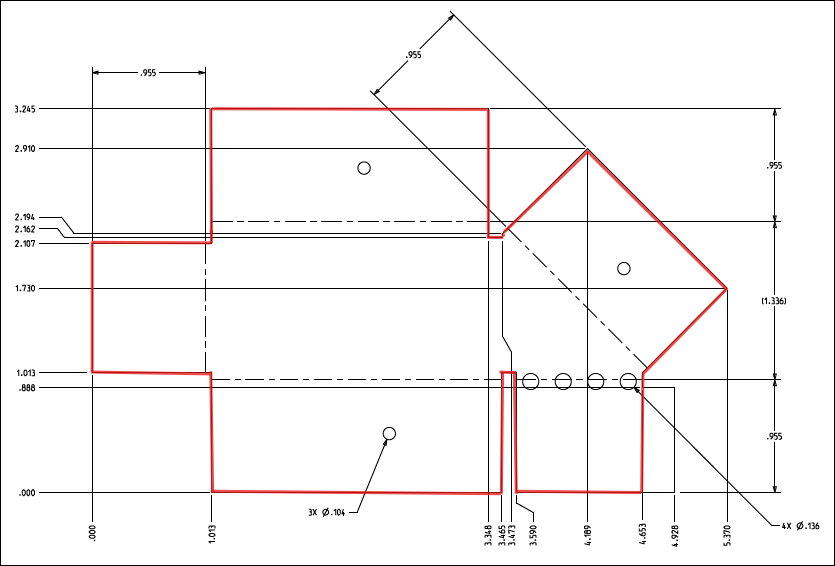

Flashing Seam Cover

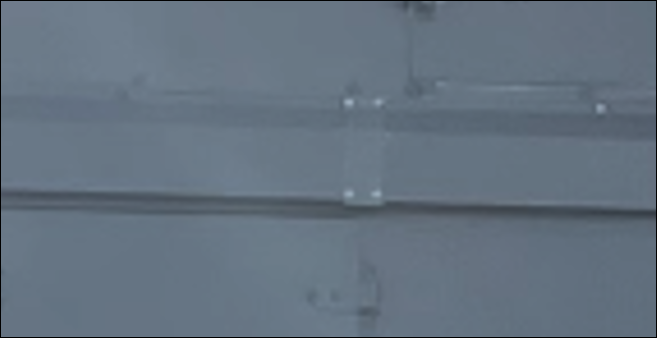

Seam Cover

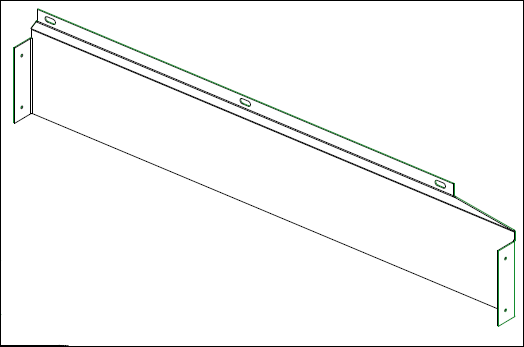

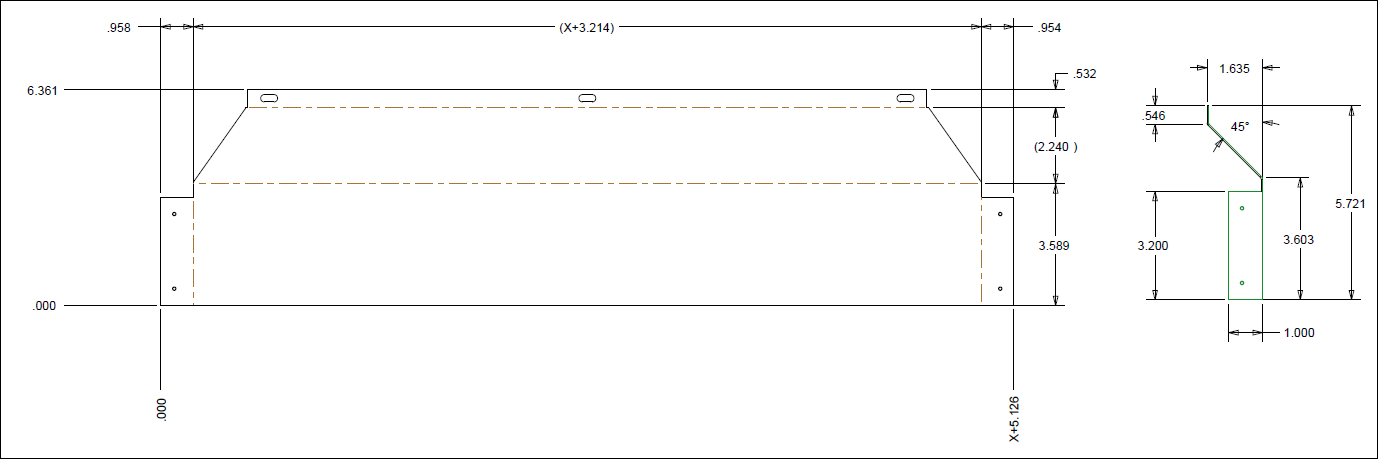

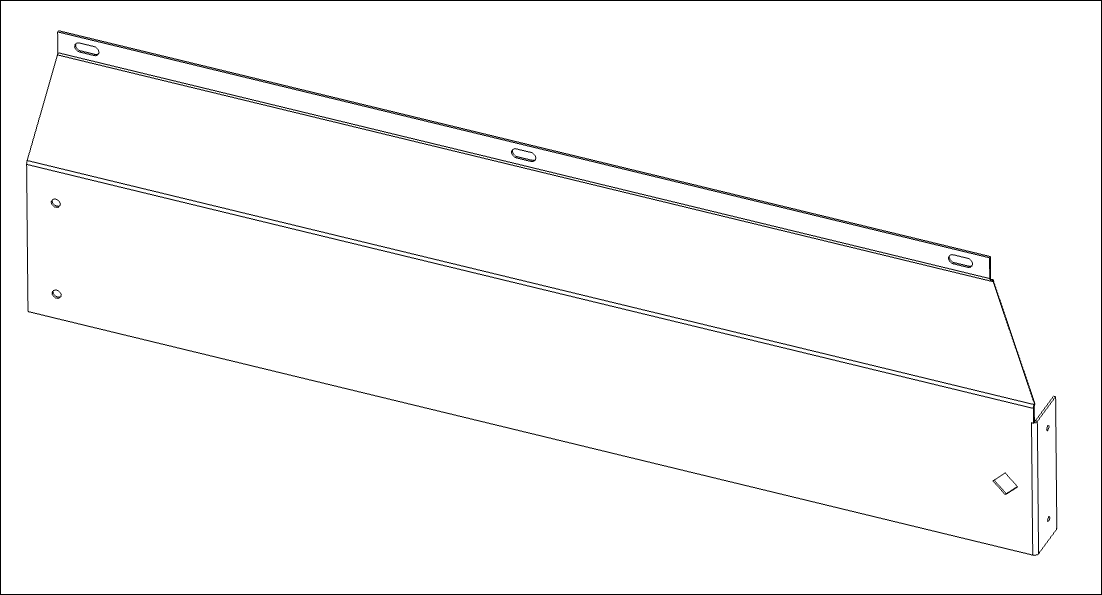

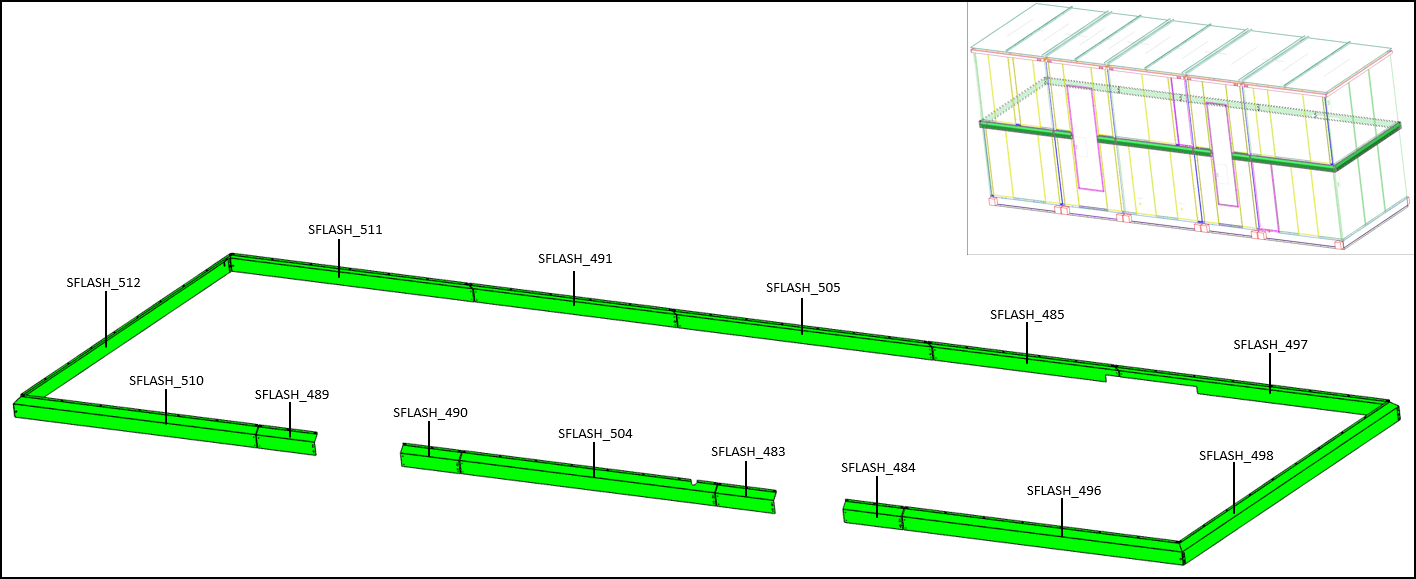

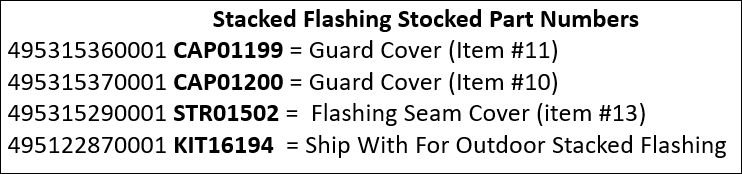

Example Formulated Stacked Flashing

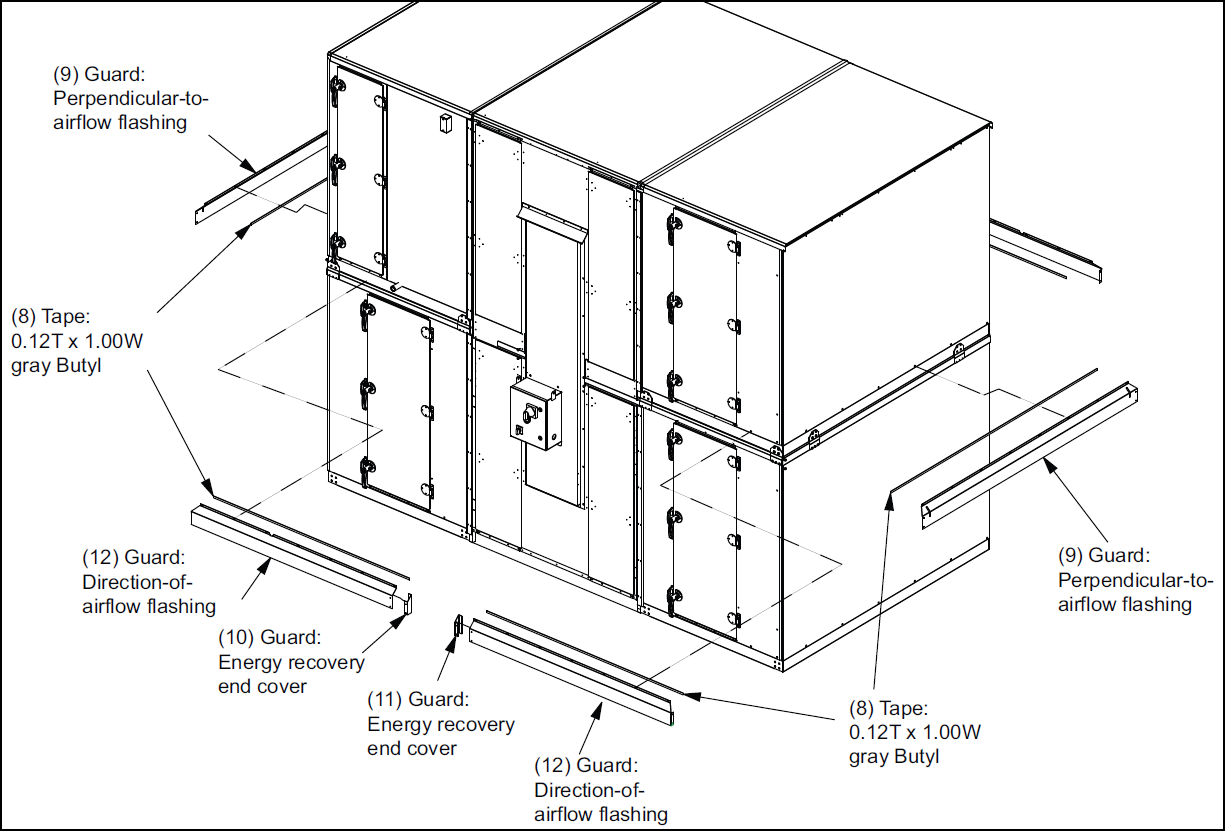

Item #9 & #12 in the Exploded View above. Custom for every unit based on layout.
Note: The part numbers in the screenshot below is NOT for your unit, so do not order these parts, or your customer will be further delayed and frustrated.
Direction of Airflow (DOAF) Generic Cutsheet Example
Perpendicular to Air Flow (PTAF) Generic Example Size 50
CSAA Size 3 thru 35 & PSCA IW 27.5 thru 96 inch (C-Channel Roof) Upper Level Shorter Than The Lower Level

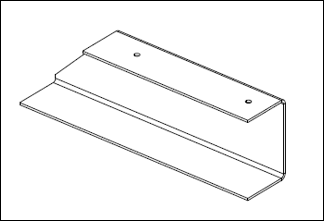

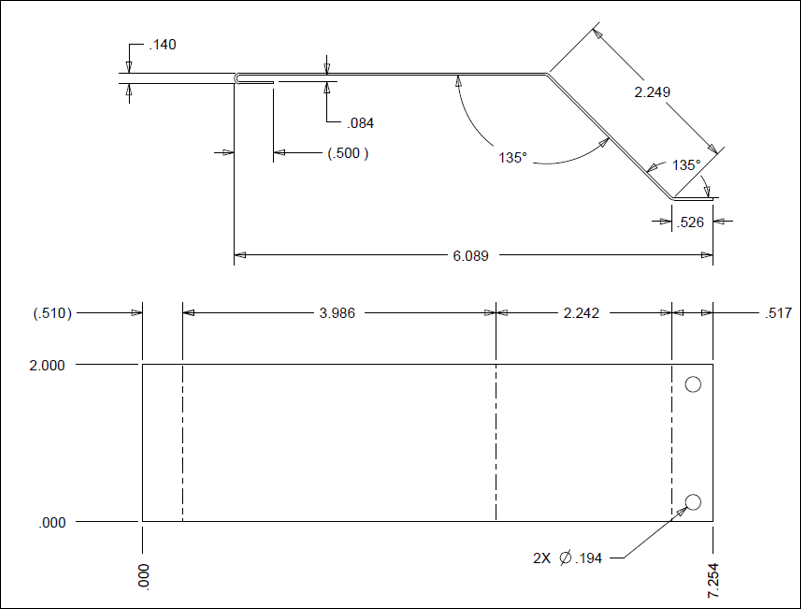

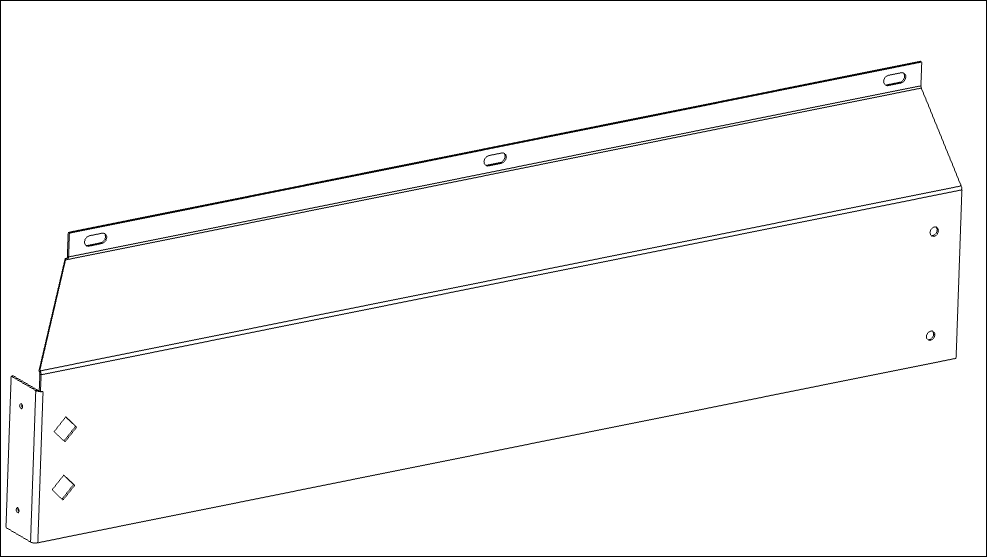

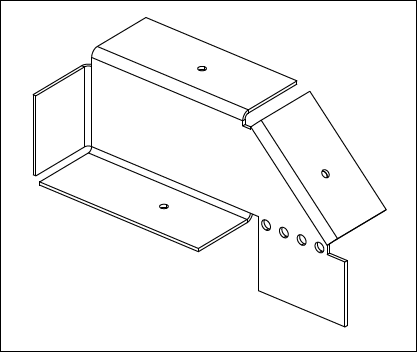

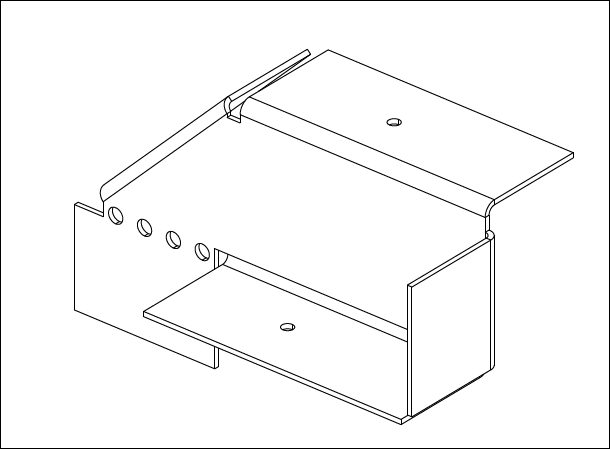

Skirt Support Bracket Details

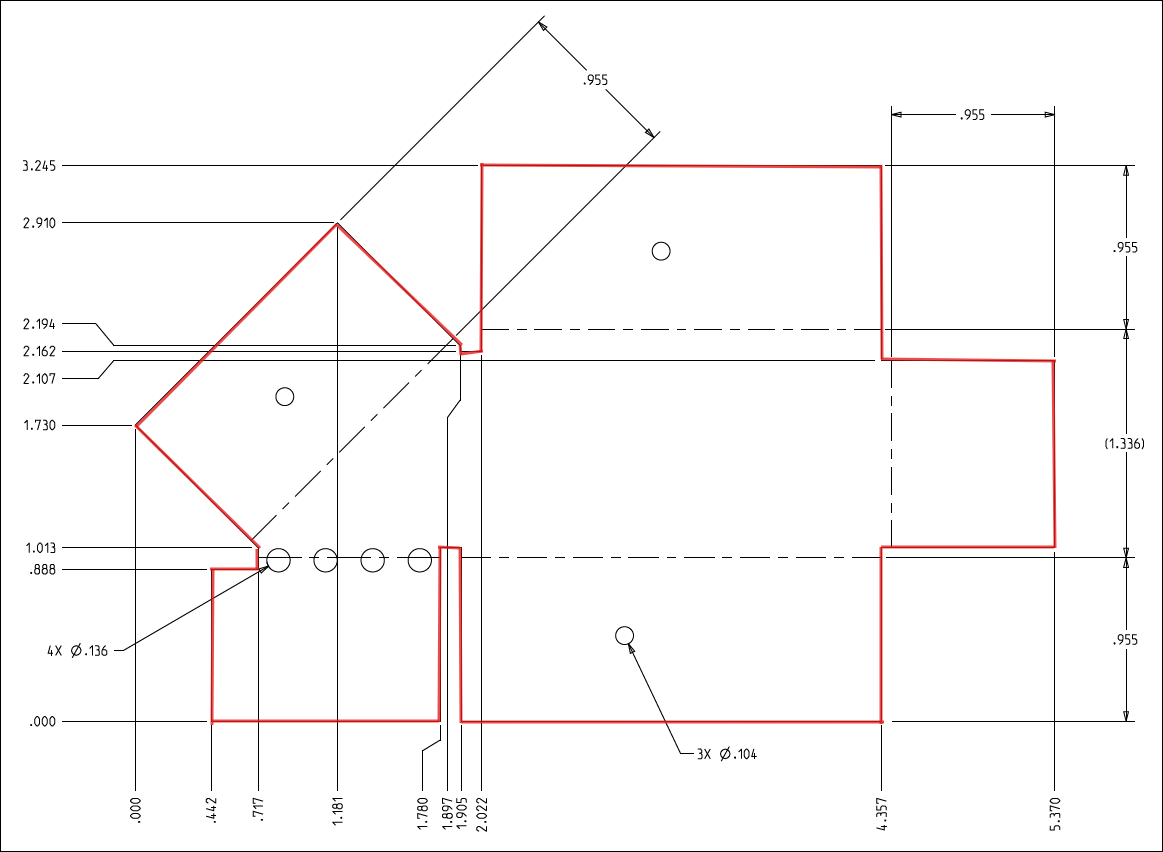

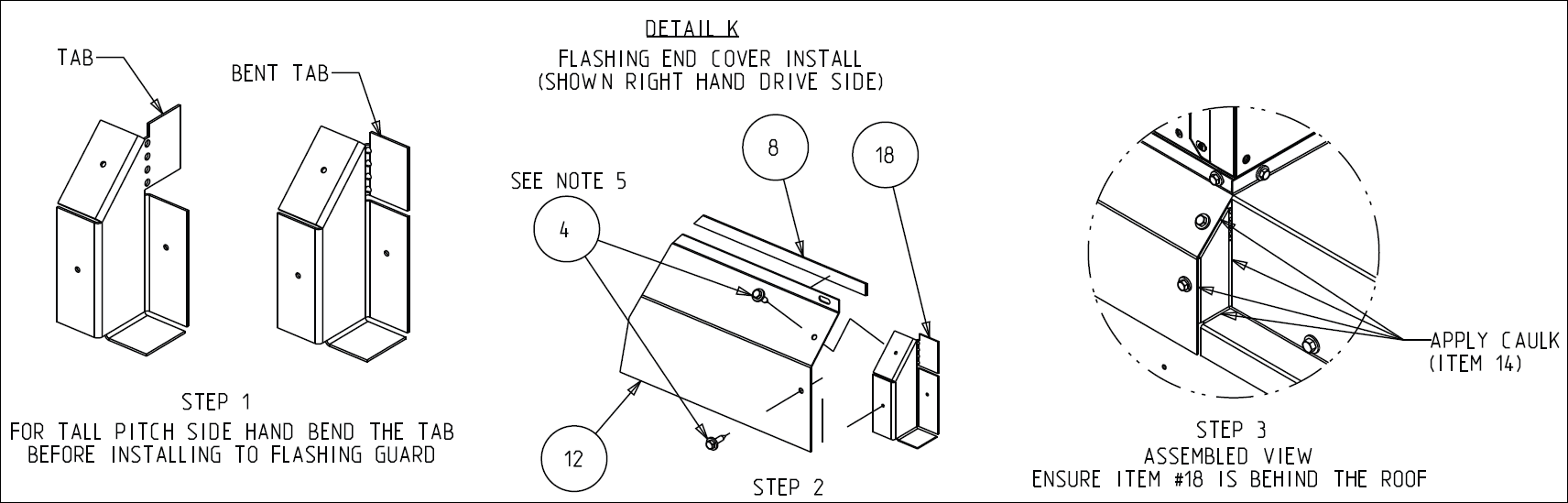

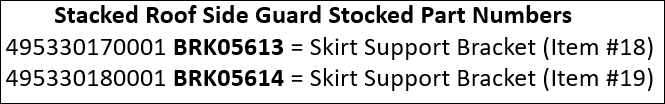

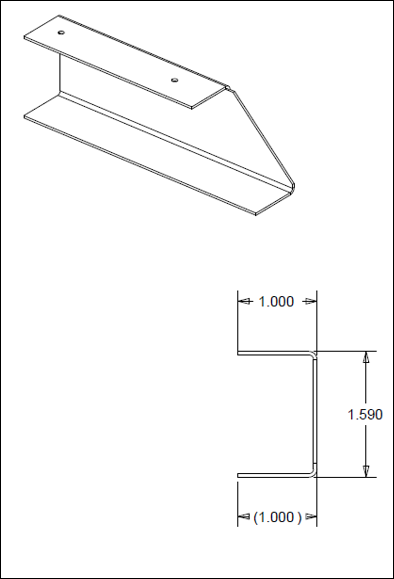

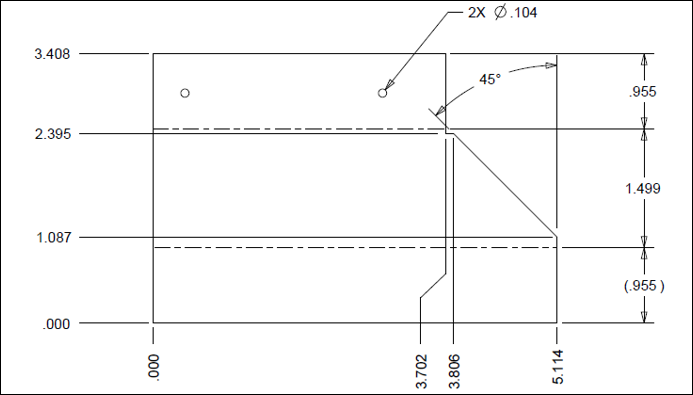

Item #18

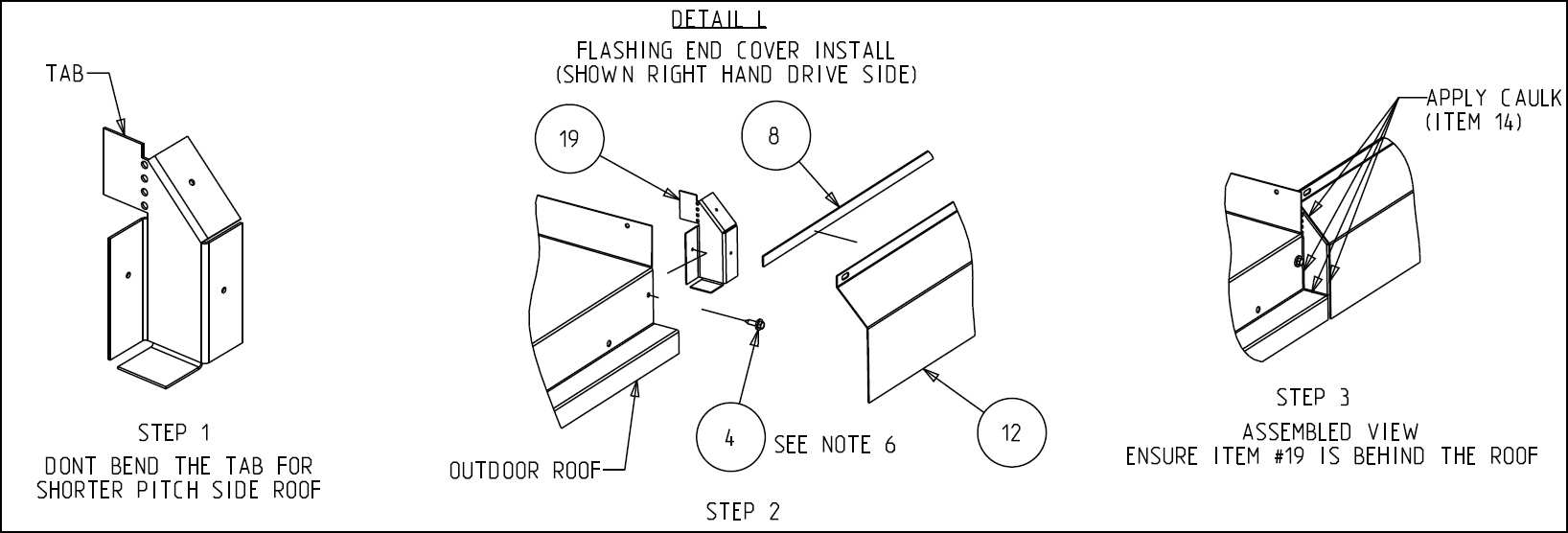

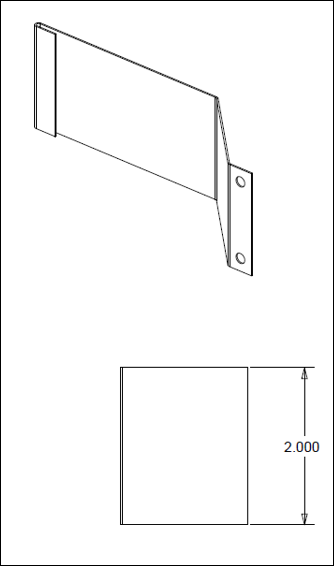

Item #19
