Initialization to Default Settings
There are 2 ways to initialize the Trane TR150 VFD to the default settings.
(Information pulled from attached Programming Guide for TR150 and TR170 - BAS-SVP16D-EN)
Recommended initialization
Follow these steps to perform a recommended initialization on the frequency converter.
Step-by-Step Initialization
- Select parameter 14-22 Operation Mode.
- Press [OK].
- Select [2] Initialisation and Press [OK].
- Power off the frequency converter and wait until the display turns off completely.
-
Reconnect the mains supply. The frequency converter is now reset, except for the following parameters:
- Parameter 1-06 Clockwise Direction
- Parameter 8-30 Protocol
- Parameter 8-31 Address
- Parameter 8-32 Baud Rate
- Parameter 8-33 Parity / Stop Bits
- Parameter 8-35 Minimum Response Delay
- Parameter 8-36 Maximum Response Delay
- Parameter 8-37 Maximum Inter-char delay
- Parameter 8-70 BACnet Device Instance
- Parameter 8-72 MS/TP Max Masters
- Parameter 8-73 MS/TP Max Info Frames
- Parameter 8-74 "I am" Service
- Parameter 8-75 Intialisation Password (Note: Spelled as "Intialisation" in original documentation)
- Parameter 15-00 Operating hours to parameter 15-05 Over Volt's
- Parameter 15-03 Power Up's
- Parameter 15-04 Over Temp's
- Parameter 15-05 Over Volt's
- Parameter 15-30 Alarm Log: Error Code
- Parameter group 15-4* Drive identification
- Parameter 18-10 FireMode Log:Event

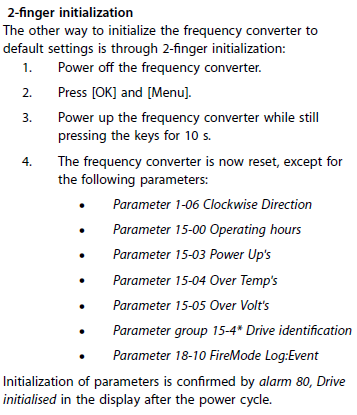

2-finger initialization
The alternative way to initialize the frequency converter to default settings is through a 2-finger initialization:
Step-by-Step 2-Finger Initialization
- Power off the frequency converter.
- Press and hold [OK] and [Menu] simultaneously.
- Power up the frequency converter while continuing to press the keys for 10 seconds.
- The frequency converter is now reset, except for the following parameters:
- Parameter 1-06 Clockwise Direction
- Parameter 15-00 Operating hours
- Parameter 15-03 Power Up's
- Parameter 15-04 Over Temp's
- Parameter 15-05 Over Volt's
- Parameter group 15-4* Drive identification
- Parameter 18-10 FireMode Log:Event
Initialization of parameters is confirmed by alarm 80, Drive initialised in the display after the power cycle.
