Issue:
CHHP/CHIP (GP2) Compressor Repair
Resolution:

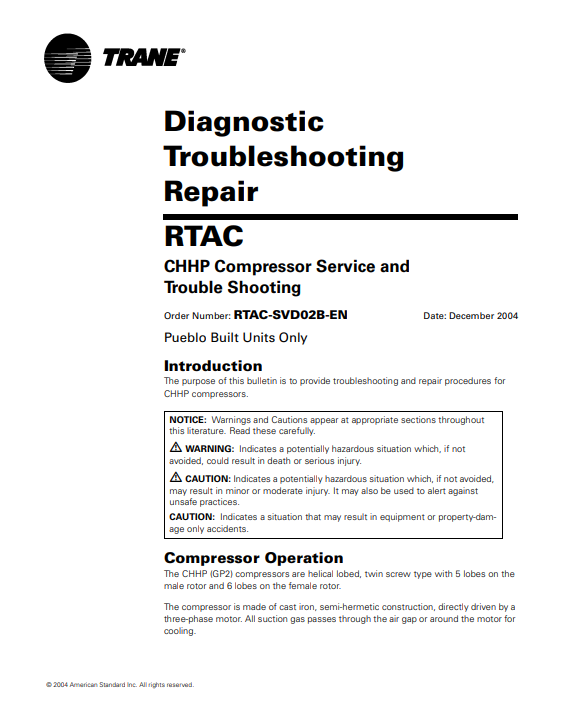

See RTAC-SVD02B-EN for reference.
Additional information that was omitted in RTAC-SVD02B-EN:
-
GP2 M & N Compressor:
- Terminal Plate Cap screw; M12 66 ft.lb
- Terminal Stud; 1/2-13 15 ft.lb
-
GP2 K & L Compressor:
- Terminal Plate Cap screw; M12 66 ft.lb
- Terminal Stud; 3/8-16 10 ft.lb
Other Question/Problem/Cause Statements:
- CHHP (GP2) compressor repair
- CHIP (GP2) Compressor Repair
- Male piston replacement
- Oil check valve replacement
- Oil filter replacement
- Leak from the bearing housing to motor housing o-ring
- Oil filter plugged
- Motor Terminal Replacement
Facts:
- CHHP (GP2) compressor
- Air-Cooled Chiller (Pueblo) (RTAC)
- Oil leak
- Leak from the oil filter cover plate
- Check valve not working
Document Identifier: DOC-80515
Click the e-library symbol for the latest version
